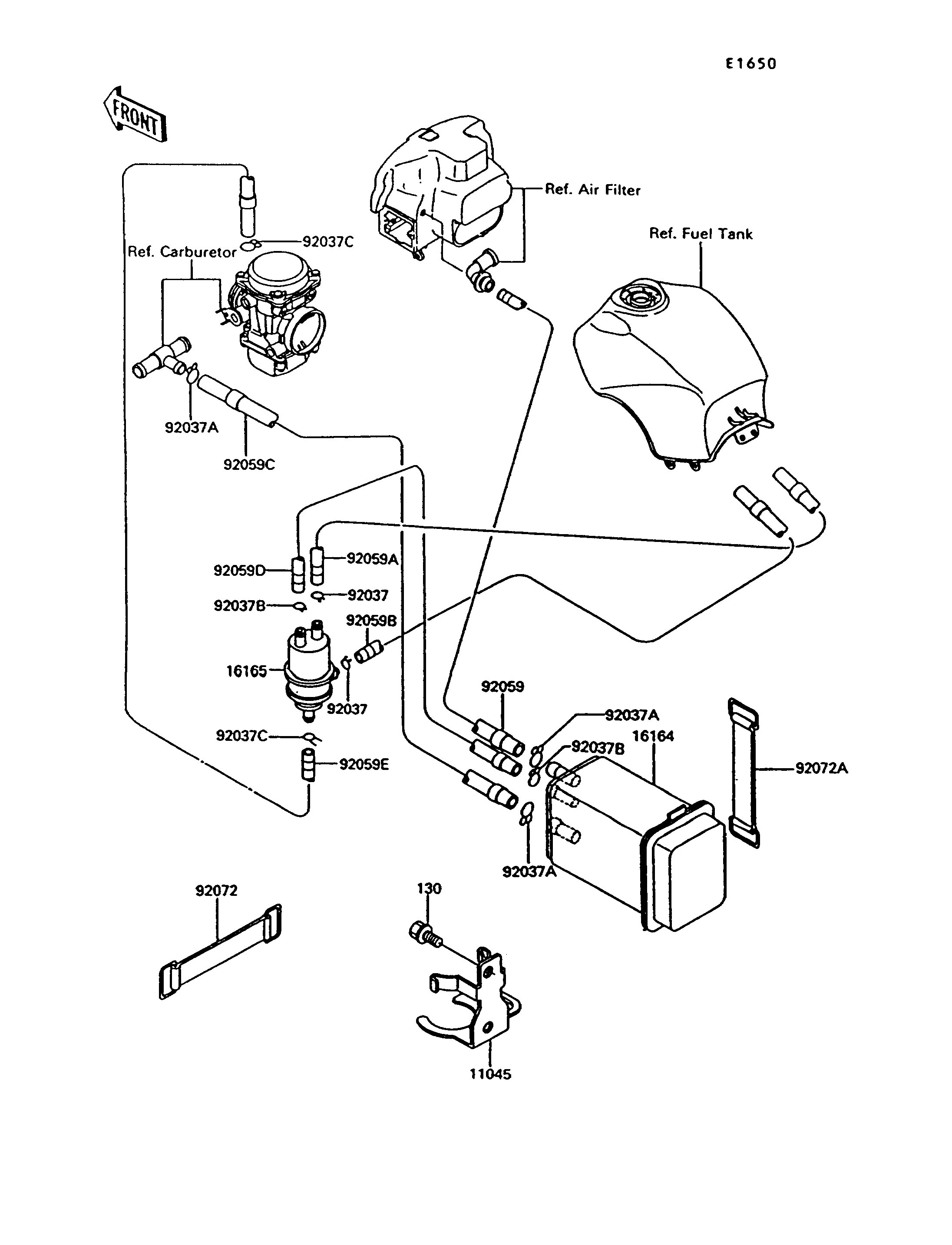

1994 Concours - Fuel Evaporative System(CA)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,SEPARATOR | 11045 | 11045-1163 | 1 | CA | |
| CANISTER | 16164 | 16164-1064 | 1 | CA | |
| SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
| CLAMP,TUBE | 92037 | 92037-010 | 4 | CA | |
| CLAMP,HOSE | 92037A | 92037-1104 | 3 | CA | |
| CLAMP,TUBE | 92037B | 92037-147 | 2 | CA | |
| CLAMP | 92037C | 92037-1712 | 2 | CA | |
| TUBE,7X12X390,GREEN | 92059 | 92059-1406 | 1 | CA | |
| TUBE,5X8X470,BLUE | 92059A | 92059-1407 | 1 | CA | |
| TUBE,5X8X550,RED | 92059B | 92059-1419 | 1 | CA | |
| TUBE,7X12X440,YELLOW | 92059C | 92059-1440 | 1 | CA | |
| TUBE,5X10X230,BLUE | 92059D | 92059-1498 | 1 | CA | |
| TUBE,4X9X705,WHITE | 92059E | 92059-1690 | 1 | CA | |
| BAND,L=100 | 92072 | 92072-071 | 1 | CA | |
| BAND | 92072A | 92072-1214 | 1 | CA | |
| BOLT-FLANGED,6X10,BLACK | 130 | 130C0610 | 2 | CA |
