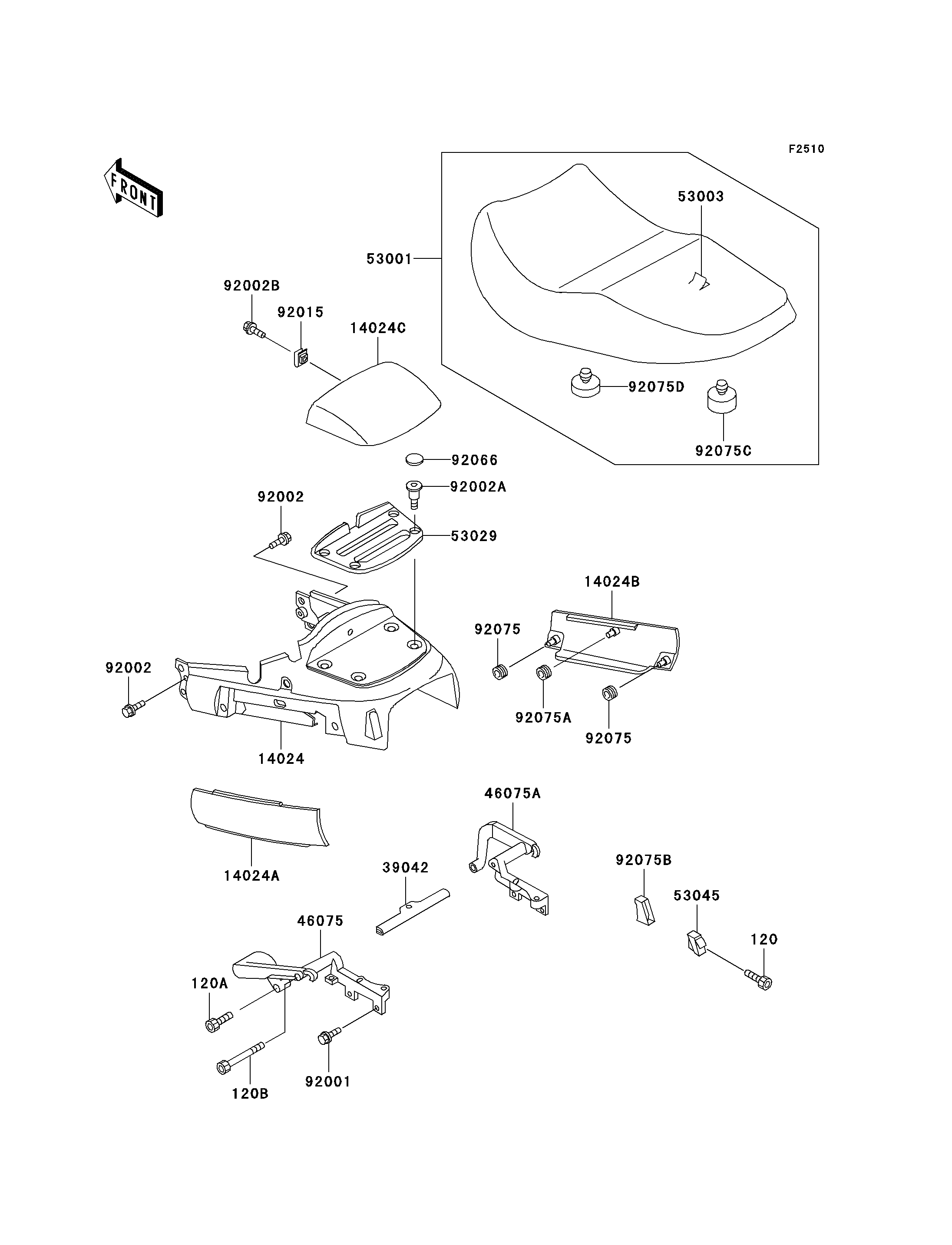

2006 Concours - Seat

DOWNLOAD PDF
SELECT A NEW PART
120
120A
120B
14024
14024A
14024B
14024C
39042
46075
46075A
53001
53003
53029
53045
92001
92002
92002
92002A
92002B
92015
92066
92075
92075
92075A
92075B
92075C
92075D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X14 120 120P0614 2
BOLT-SOCKET,8X25 120A 120S0825 2
BOLT-SOCKET,8X90 120B 120S0890 2
COVER,SEAT,M.N.BLUE 14024 14024-1224-TK 1
COVER,SEAT COVER,LH,M.N.BLUE 14024A 14024-1225-TK 1
COVER,SEAT COVER,RH,M.N.BLUE 14024B 14024-1226-TK 1
COVER,CARRIER,M.N.BLUE 14024C 14024-1227-TK 1
CROSSMEMBER,SEAT GRIP 39042 39042-1052 1
GRIP,SEAT,RR,LH 46075 46075-1070 1
GRIP,SEAT,RR,RH 46075A 46075-1071 1
SEAT-ASSY,DUAL,BLACK 53001 53001-1742-MA 1
LEATHER,SEAT,BLACK 53003 53003-1289-MA 1
CARRIER,TAIL 53029 53029-1069 1
HOOK-ASSY,BUNGEE CORD 53045 53045-1052 2
BOLT,8X18 92001 92001-1359 4
BOLT,6X25 92002 92002-1135 2
BOLT,SOCKET,8X23.5 92002A 92002-1598 4
BOLT,5MM 92002B 92002-1724 1
NUT,5MM 92015 92015-1710 1
PLUG 92066 92066-1216 4
DAMPER 92075 92075-051 4
DAMPER 92075A 92075-1470 2
DAMPER,BUNGEE CORD HOOK 92075B 92075-1823 2
DAMPER 92075C 92075-1876 2
DAMPER 92075D 92075-281 5
