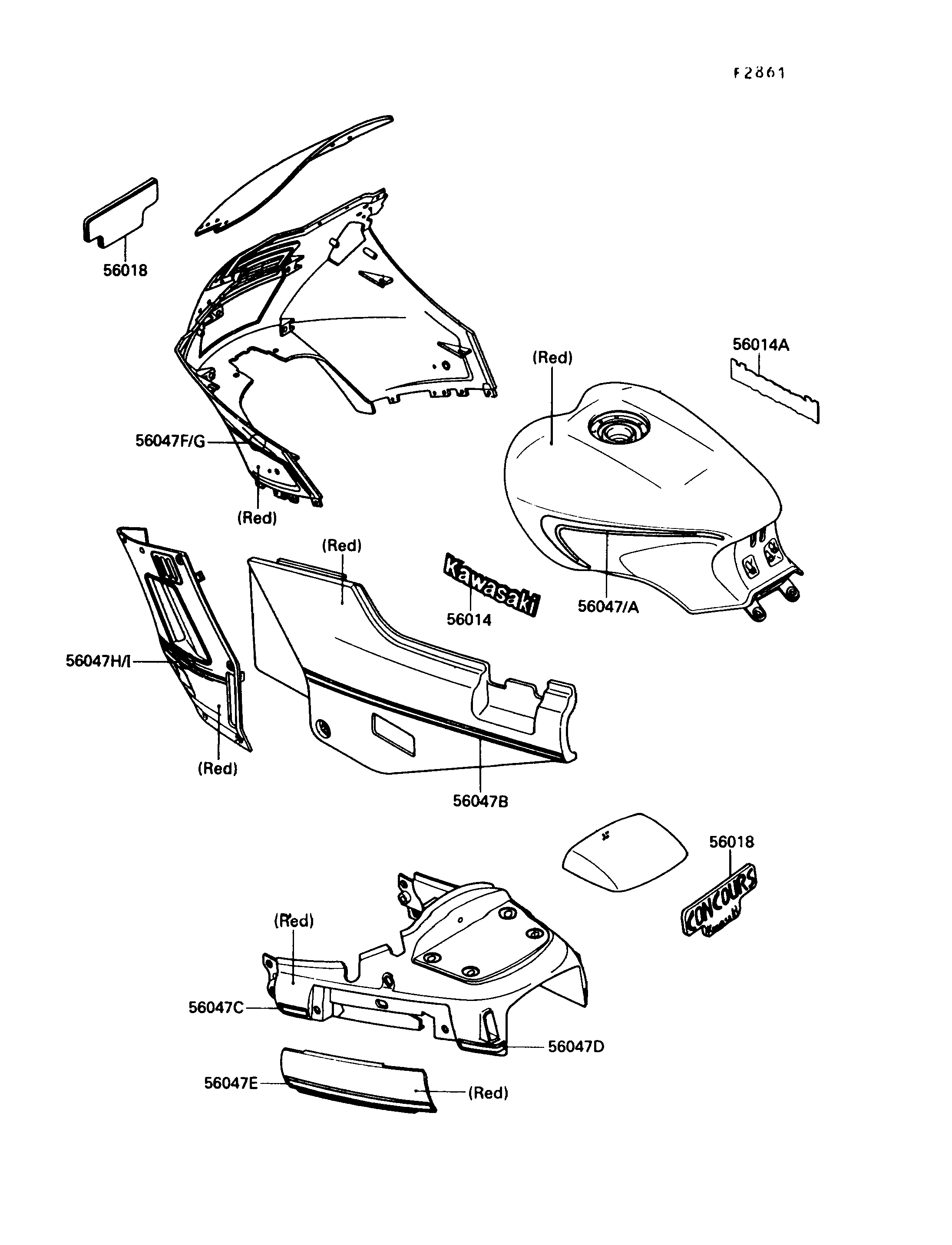

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,LH,KAWASAKI | 56014 | 56014-1134 | 1 | ||
| EMBLEM,FUEL TANK,RH,KAWASAKI | 56014A | 56014-1135 | 1 | ||
| MARK,CARRIER COVER&SCREEN | 56018 | 56018-1869 | 2 | ||
| PATTERN,FUEL TANK,LH | 56047 | 56047-1912 | 1 | ||
| PATTERN,FUEL TANK,RH | 56047A | 56047-1913 | 1 | ||
| PATTERN,SIDE COVER | 56047B | 56047-1914 | 2 | ||
| PATTERN,SEAT COVER,FR | 56047C | 56047-1915 | 2 | ||
| PATTERN,SEAT COVER,RR | 56047D | 56047-1916 | 2 | ||
| PATTERN,SEAT COVER,CNT | 56047E | 56047-1917 | 2 | ||
| PATTERN,COWLING,LH | 56047F | 56047-1918 | 1 | ||
| PATTERN,COWLING,RH | 56047G | 56047-1919 | 1 | ||
| PATTERN,COWLING,CNT,LH | 56047H | 56047-1920 | 1 | ||
| PATTERN,COWLING,CNT,RH | 56047I | 56047-1921 | 1 |
