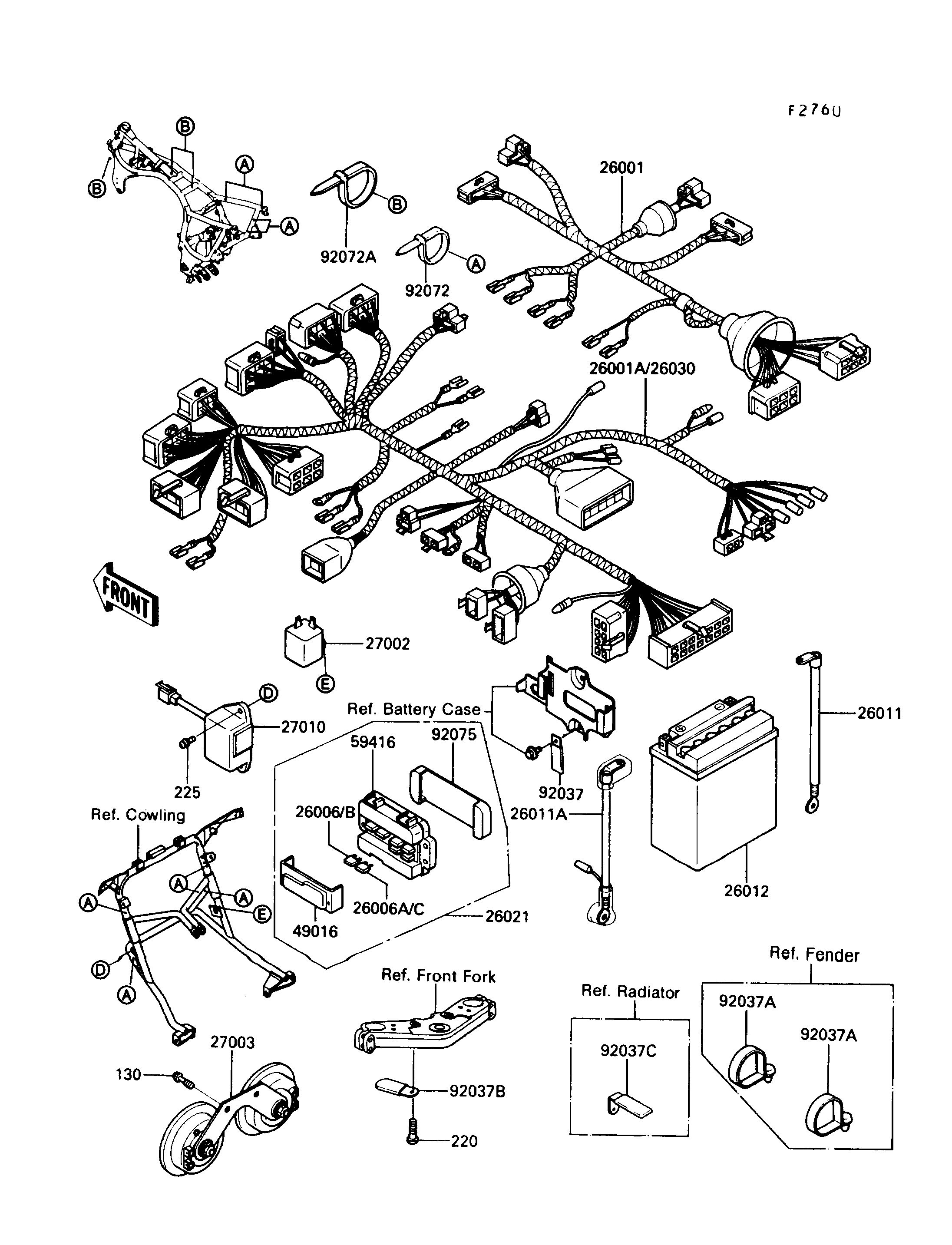

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HARNESS,FR | 26001 | 26001-1774 | 1 | ||
| HARNESS,MAIN | 26001A | 26001-1838 | 1 | CN | |
| FUSE,30A-G | 26006 | 26006-1006 | 2 | CN | |
| FUSE,10A-R | 26006A | 26006-1007 | 6 | CN | |
| FUSE,30A-G | 26006B | 26006-1067 | 2 | CAUS | |
| FUSE,10A-R | 26006C | 26006-1068 | 6 | CAUS | |
| WIRE-LEAD,BATTERY(-) | 26011 | 26011-1323 | 1 | ||
| WIRE-LEAD,BATTERY(+) | 26011A | 26011-1358 | 1 | ||
| BATTERY,12V 18AH,YB18L-A-TP | 26012 | 26012-1183 | 1 | ||
| JUNCTION BOX | 26021 | 26021-1076 | 1 | CAUS | |
| HARNESS,MAIN | 26030 | 26030-1038 | 1 | CAUS | |
| RELAY-ASSY,TURN SIGNAL | 27002 | 27002-1060 | 1 | ||
| HORN,DOUBLE | 27003 | 27003-1245 | 1 | ||
| SWITCH,RESERV LIGHTING | 27010 | 27010-1066 | 1 | ||
| COVER-SEAL | 49016 | 49016-1118 | 1 | ||
| CASE-ELECTRIC | 59416 | 59416-1060 | 1 | CN | |
| CLAMP,WIRING HARNESS | 92037 | 92037-1069 | 1 | ||
| CLAMP,HOSE | 92037A | 92037-1163 | 2 | ||
| CLAMP,WIRING HARNESS | 92037B | 92037-1539 | 1 | ||
| CLAMP,HARNESS | 92037C | 92037-1564 | 1 | ||
| BAND,L=185 | 92072 | 92072-1195 | 11 | ||
| BAND,L=365 | 92072A | 92072-1197 | 3 | ||
| DAMPER,JUNCTION BOX | 92075 | 92075-1688 | 1 | ||
| BOLT-FLANGED,6X12 | 130 | 130C0612 | 2 | ||
| SCREW-PAN-CROS | 220 | 220C0510 | 1 | ||
| SCREW-PAN-WSP-CROS | 225 | 225B0620 | 2 |
| HARNESS,FR | |
| REF # | 26001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS,MAIN | |
| REF # | 26001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| FUSE,30A-G | |
| REF # | 26006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| FUSE,10A-R | |
| REF # | 26006A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | CN |
| REMARKS | |
| FUSE,30A-G | |
| REF # | 26006B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CAUS |
| REMARKS | |
| FUSE,10A-R | |
| REF # | 26006C |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | CAUS |
| REMARKS | |
| WIRE-LEAD,BATTERY(-) | |
| REF # | 26011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,BATTERY(+) | |
| REF # | 26011A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BATTERY,12V 18AH,YB18L-A-TP | |
| REF # | 26012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JUNCTION BOX | |
| REF # | 26021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| HARNESS,MAIN | |
| REF # | 26030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| RELAY-ASSY,TURN SIGNAL | |
| REF # | 27002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HORN,DOUBLE | |
| REF # | 27003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,RESERV LIGHTING | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SEAL | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-ELECTRIC | |
| REF # | 59416 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| CLAMP,WIRING HARNESS | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HOSE | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,WIRING HARNESS | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HARNESS | |
| REF # | 92037C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=185 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| BAND,L=365 | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER,JUNCTION BOX | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X12 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WSP-CROS | |
| REF # | 225 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
