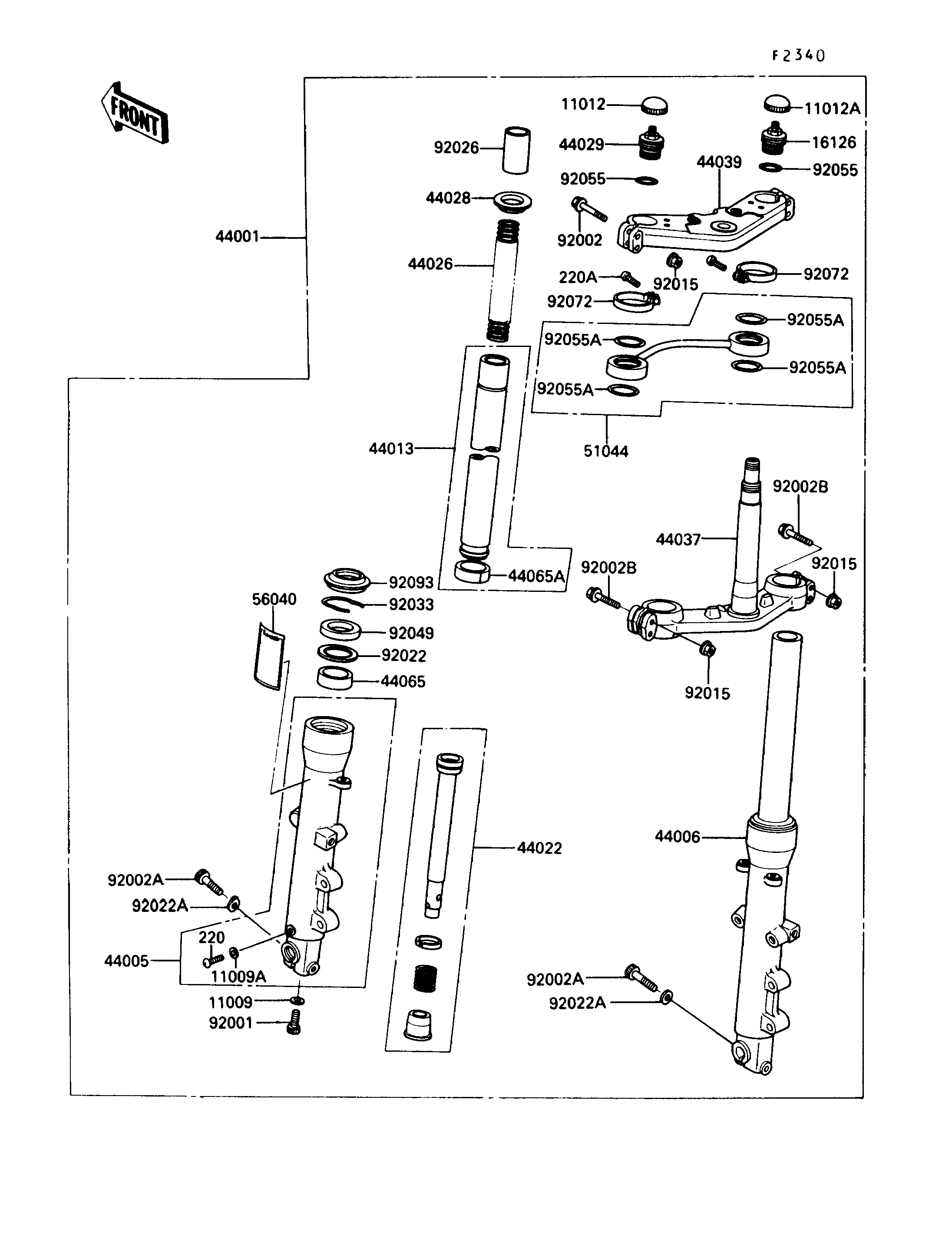

1990 Concours - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 11009-1127 2
GASKET,FORK DRAIN PLUG 11009A 44045-002 2
CAP,FORK TOP 11012 11012-1500 1
CAP,FORK TOP 11012A 11012-1501 1
VALVE 16126 16126-1150 1
FORK-FRONT 44001 44001-1623 1
PIPE-LEFT FORK OUTER 44005 44005-1251 1
PIPE-RIGHT FORK OUTER 44006 44006-1250 1
PIPE-FORK INNER 44013 44013-1254 2
CYLINDER-FORK 44022 44022-1197 2
SPRING-FRONT FORK 44026 44026-1340 2
GUIDE-FORK SPRING 44028 44028-1059 2
SEAT-FORK SPRING 44029 44029-1122 1
HOLDER-FORK UNDER 44037 44037-1198 1
HOLDER-FORK UPPER 44039 44039-1135 1
BUSHING-FRONT FORK 44065 44065-1064 2
BUSHING-FRONT FORK,INNER PIPE 44065A 44065-1081 2
TUBE-ASSY,FORK,AIR 51044 51044-1083 1
LABEL-WARNING,AIR SUSPENSION 56040 56040-1117 1
BOLT,FORK CYLINDER 92001 92001-1309 2
BOLT,FLANGED,8X55 92002 92002-1158 4
BOLT,SOCKET,8X45 92002A 92002-1847 2
BOLT,FLANGED,8X50 92002B 92002-1848 4
NUT,FLANGED,8MM 92015 92015-1408 8
WASHER,FORK OUTER TUBE 92022 92022-1298 2
WASHER 92022A 92022-1598 2
SPACER,FORK SPRING 92026 92026-1277 2
RING-SNAP 92033 92033-1036 2
SEAL-OIL,FORK OUTER 92049 92049-1273 2
RING-O,FORK TOP 92055 92055-1052 2
RING-O,FORK AIR TUBE 92055A 92055-1106 4
BAND 92072 92072-1157 2
SEAL,FORK OUTER TUBE 92093 92093-1232 2
SCREW-PAN-CROS 220 220E0408 2
SCREW-PAN-CROS 220A 220E0412 2
