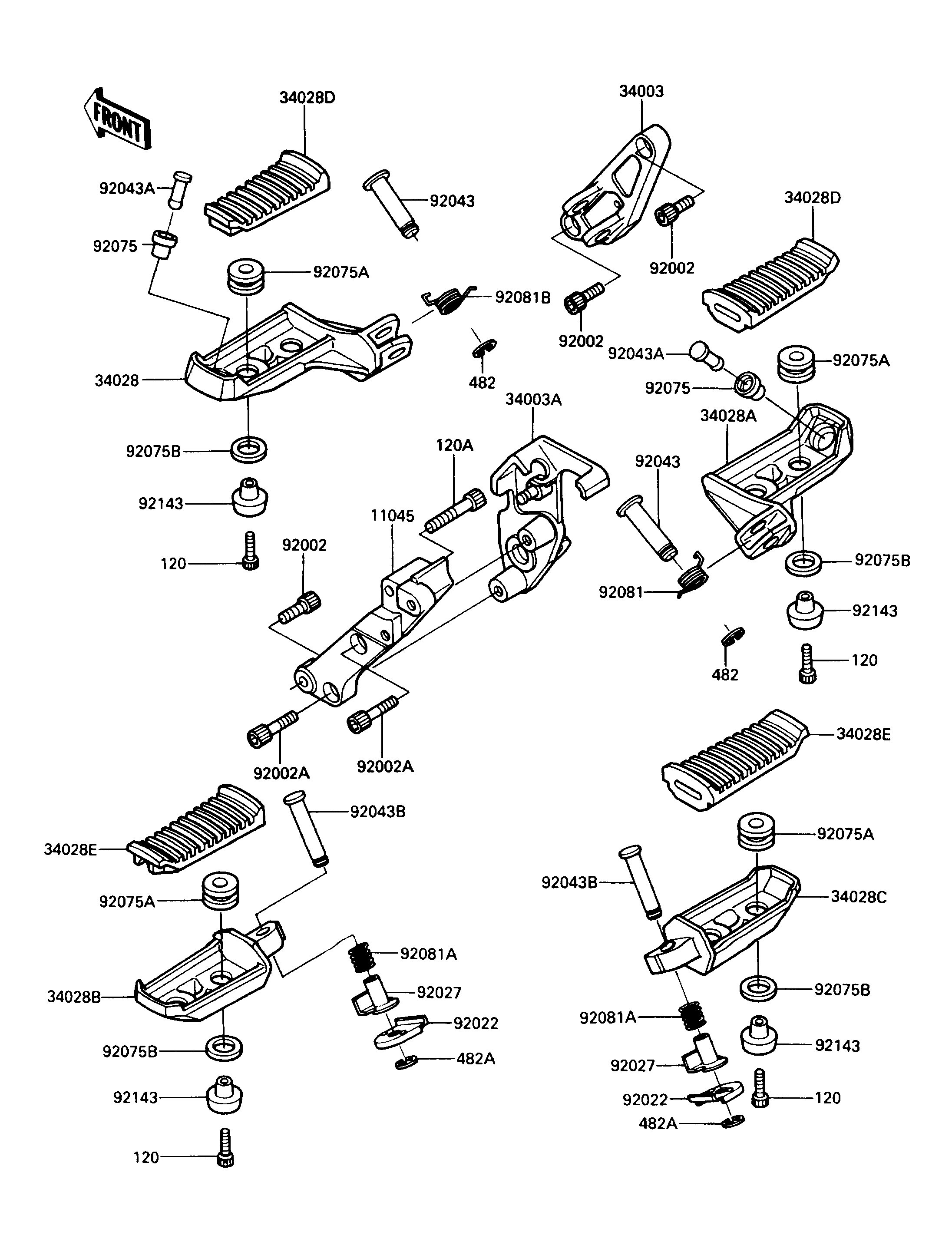

1990 Concours - Footrest

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FRONT STEP,RH 11045 11044-1911 1
HOLDER-STEP,FR,LH 34003 34003-1259 1
HOLDER-STEP,FR,RH 34003A 34003-1260 1
STEP,FR,LH 34028 34028-1198 1
STEP,FR,RH 34028A 34028-1199 1
STEP,RR,LH 34028B 34028-1200 1
STEP,RR,RH 34028C 34028-1201 1
STEP,FR,RUBBER 34028D 34028-1206 2
STEP,RR,RUBBER 34028E 34028-1207 2
BOLT,SOCKET,8X20 92002 92002-1178 3
BOLT,SOCKET,8X25 92002A 92002-1442 2
WASHER,STEP,RR 92022 92022-1507 2
COLLAR,STEP 92027 92027-1732 2
PIN,12X42.5 92043 92043-1145 2
PIN,BANK SENSOR 92043A 92043-1219 2
PIN,6X38.5 92043B 92043-1238 2
DAMPER,BANK SENSOR 92075 92075-1597 2
DAMPER,MALE 92075A 92075-174 8
DAMPER,FEMALE 92075B 92075-175 8
SPRING,STEP RETURN,RH 92081 92081-1587 1
SPRING,STEP,RR 92081A 92081-1612 2
SPRING,STEP RETURN,LH 92081B 92081-1733 1
COLLAR,STEP 92143 92143-1005 8
BOLT-SOCKET 120 120P0520 8
BOLT-SOCKET,8X40 120A 120P0840 1
CIRCLIP-TYPE-E,10MM 482 482L0100 2
CIRCLIP-TYPE-E,5MM 482A 482L5000 2
