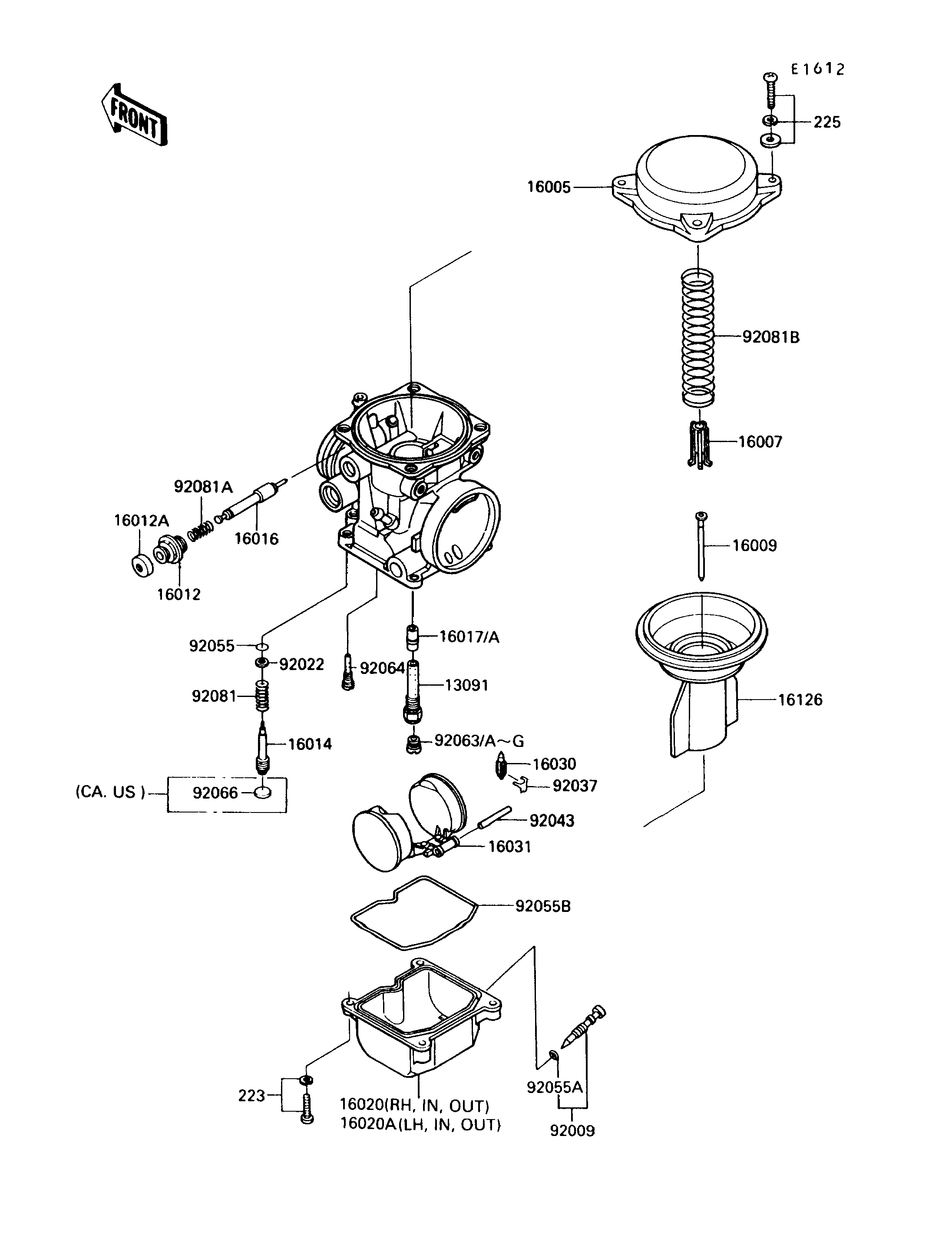

1990 Concours - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1259 4
TOP-CHAMBER,MIXING 16005 16005-1056 4
SEAT-SPRING,THROTTLE VALVE 16007 16007-1120 4
NEEDLE-JET,N52M 16009 16009-1326 4
CAP-STARTER PLUNGER 16012 16012-1051 4
CAP-STARTER PLUNGER 16012A 16012-1052 4
SCREW-PILOT AIR 16014 16014-1054 4
PLUNGER,STARTER 16016 16016-1061 4
JET-NEEDLE 16017 16017-1313 4 CN
JET-NEEDLE 16017A 16017-1316 4 CAUS
CHAMBER-FLOAT,RH,SIDE 16020 16020-1054 2
CHAMBER-FLOAT,LH,SIDE 16020A 16020-1055 2
VALVE-FLOAT 16030 16030-1007 4
FLOAT 16031 16031-1056 4
VALVE,VACUUM 16126 16126-1160 4
SCREW,DRAIN 92009 92009-1487 4
WASHER,PLAIN 92022 92022-1003 4
CLAMP,FLOAT VALVE 92037 16044-007 4
PIN,FLOAT 92043 92043-1207 4
RING-O,PILOT ADJUST 92055 92055-1002 4
RING-O,DRAIN SCREW 92055A 92055-1053 4
RING-O,FLOAT CHAMBER 92055B 92055-1222 4
JET-MAIN,#135 92063 92063-1014 4 CA
JET-MAIN,2ND,#125 92063A 92063-1069 4
JET-MAIN,#120 92063B 92063-1072 4 CNUS
JET-MAIN,2ND,#122 92063C 92063-1073 4 CNUS
JET-MAIN,2ND,#128 92063D 92063-1074 4 (RACING USE ONLY)
JET-MAIN,#130 92063E 92063-1075 4 CA
JET-MAIN,#130 92063F 92063-1075 4 CNUS
JET-MAIN,#132 92063G 92063-1076 4 CA
JET-PILOT,#35 92064 92064-1101 4
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 4 CAUS
SPRING,PILOT ADJUST SCREW 92081 92081-1002 4
SPRING,STARTER PLUNGER 92081A 92081-1761 4
SPRING,VACUUM VALVE 92081B 92081-1925 4
SCREW-PAN-WS-CROS 223 223C0416 16
SCREW-PAN-WSP-CROS 225 225C0418 15
