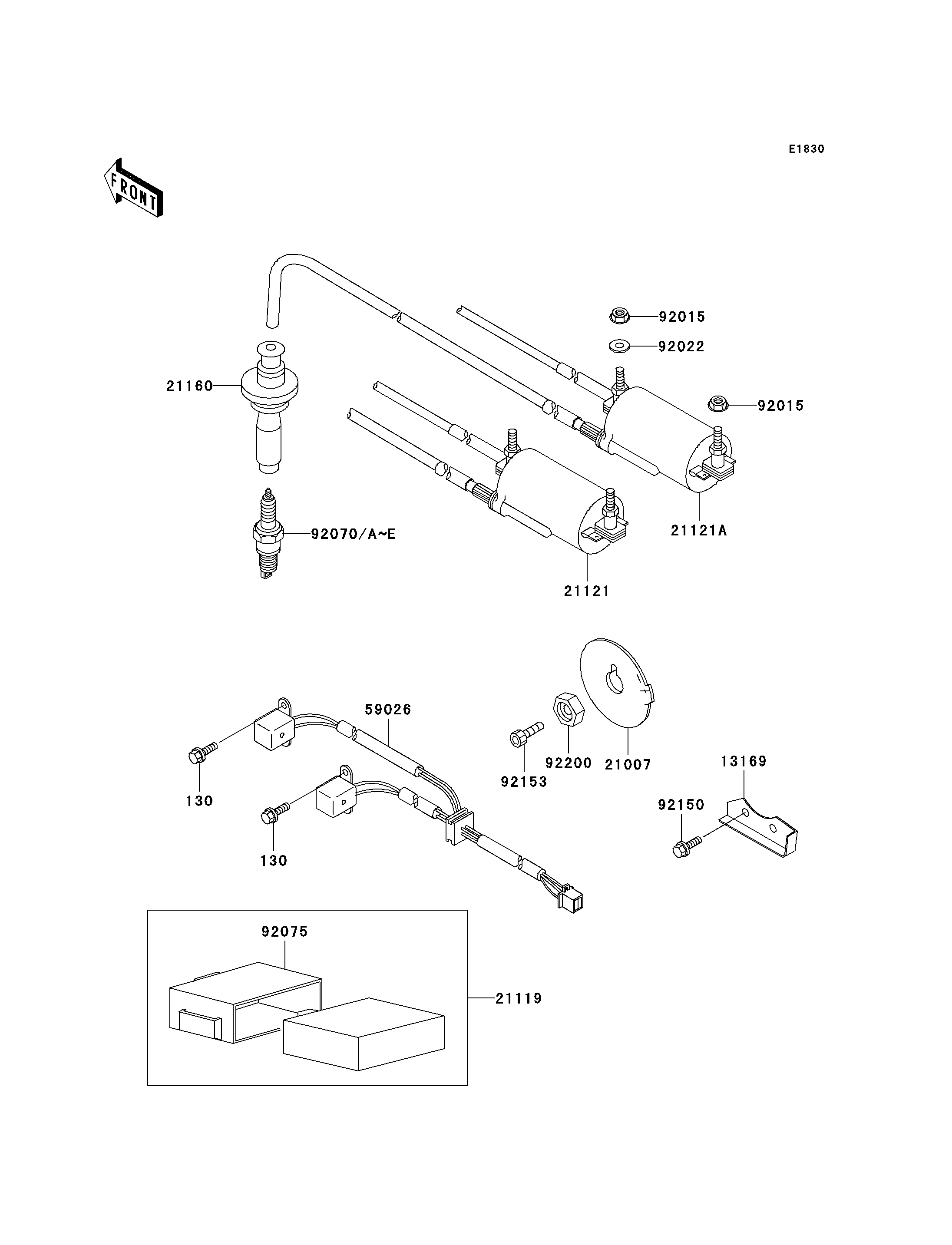

2005 Concours - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
130
130
13169
21007
21119
21121
21121A
21160
59026
92015
92015
92022
92070
92070A
92070B
92070C
92070D
92070E
92075
92150
92153
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130G0512 4
PLATE,CHAIN GUIDE 13169 13169-1748 1
ROTOR,PULSING COIL 21007 21007-1109 1
IGNITER 21119 21119-1110 1
COIL-IGNITION,#1&#4 21121 21121-1110 1
COIL-IGNITION,#2&#3 21121A 21121-1111 1
CAP-ASSY-PLUG 21160 21160-1065 4
COIL-PULSING 59026 59026-1061 1
NUT,FLANGED,6MM 92015 92015-1193 4
WASHER,7X16X1.2 92022 92022-024 2
PLUG-SPARK,X24ESR-U(ND) 92070 4 (LOCAL PROCUREMENT ITEM)
PLUG-SPARK,X27ESR-U(ND) 92070A 4 (OPTION)
PLUG-SPARK,X22ESR-U(ND) 92070B 4 (OPTION)
PLUG-SPARK,DR7EA(NGK) 92070C 92070-1165 4 (OPTION)
PLUG-SPARK,DR9EA(NGK) 92070D 92070-1189 4 (OPTION)
PLUG-SPARK,DR8EA(NGK) 92070E 92070-1199 4
DAMPER,IGNITER 92075 92075-1592 1
BOLT,6X12 92150 92150-1841 2
BOLT,M8X25 92153 92153-1191 1
WASHER,ROTOR 92200 92200-1173 1
