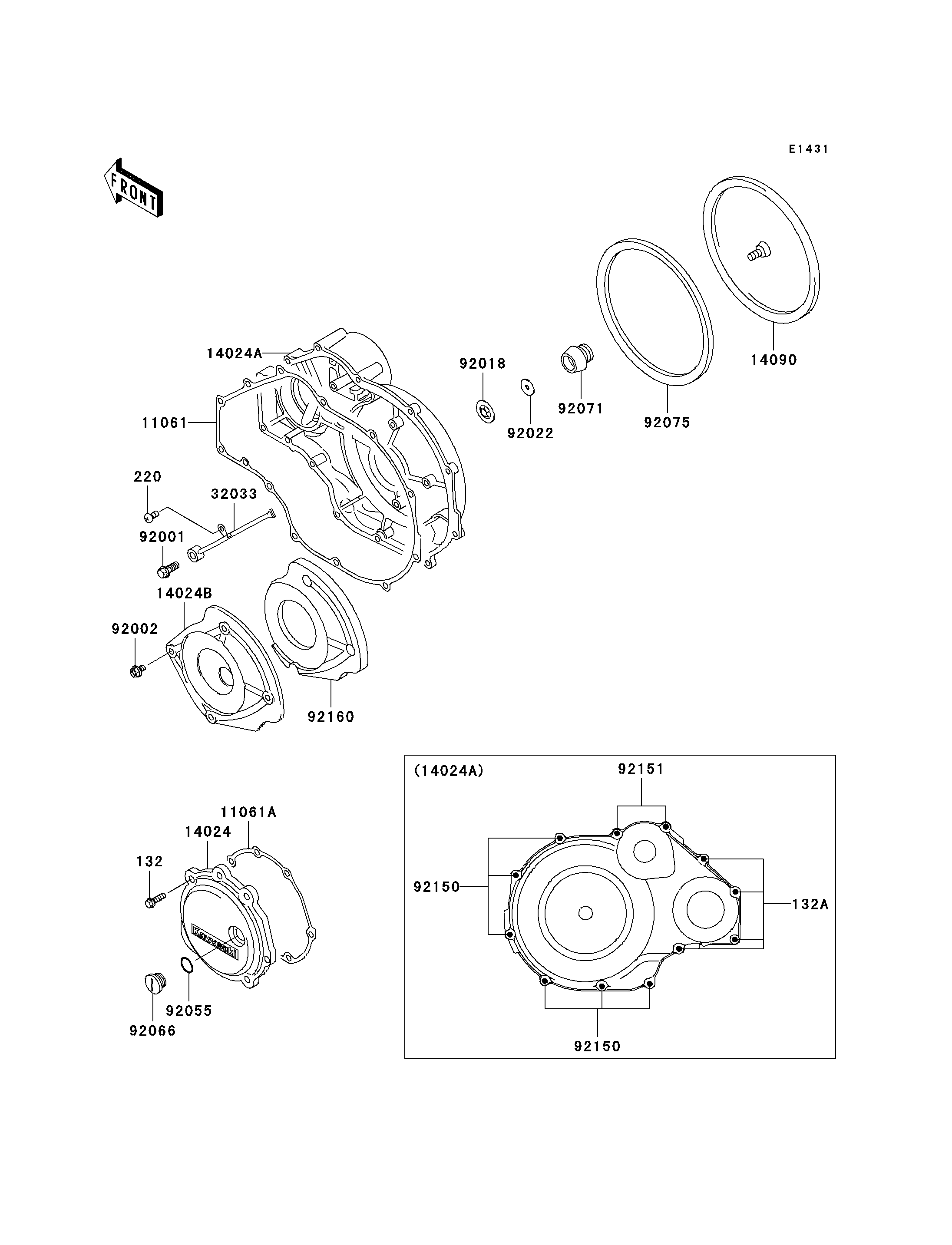

2005 Concours - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132A
220
11061
11061A
14024
14024A
14024B
14090
32033
92001
92002
92018
92022
92055
92066
92071
92075
92150
92150
92151
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132J0620 7
BOLT-FLANGED-SMALL,6X40 132A 132J0640 4
SCREW-PAN-CROS 220 220B0510 1
GASKET,CLUTCH COVER 11061 11061-1154 1
GASKET,PULSING COVER 11061A 11061-1155 1
COVER,LH 14024 14024-1066 1
COVER,CLUTCH 14024A 14024-1067 1
COVER,SOUND ARRESTER 14024B 14024-1925 1
COVER,CLUTCH COVER 14090 14090-1409 1
PIPE,CLUTCH COVER 32033 32033-1204 1
BOLT,BANJO,8X20 92001 92001-1855 1
BOLT,6X10 92002 92002-1541 4
NUT,SPEED,5MM 92018 92018-004 1
WASHER,5.5X20X1.2 92022 92022-104 1
RING-O 92055 92055-1146 1
PLUG 92066 92066-1397 1
GROMMET,CLUTCH COVER 92071 92071-1108 1
DAMPER,CLUTCH COVER 92075 92075-1594 1
BOLT,6X25 92150 92150-1779 6
BOLT,6X55 92151 92151-1341 2
DAMPER,SOUND ARRESTER 92160 92160-1209 1
