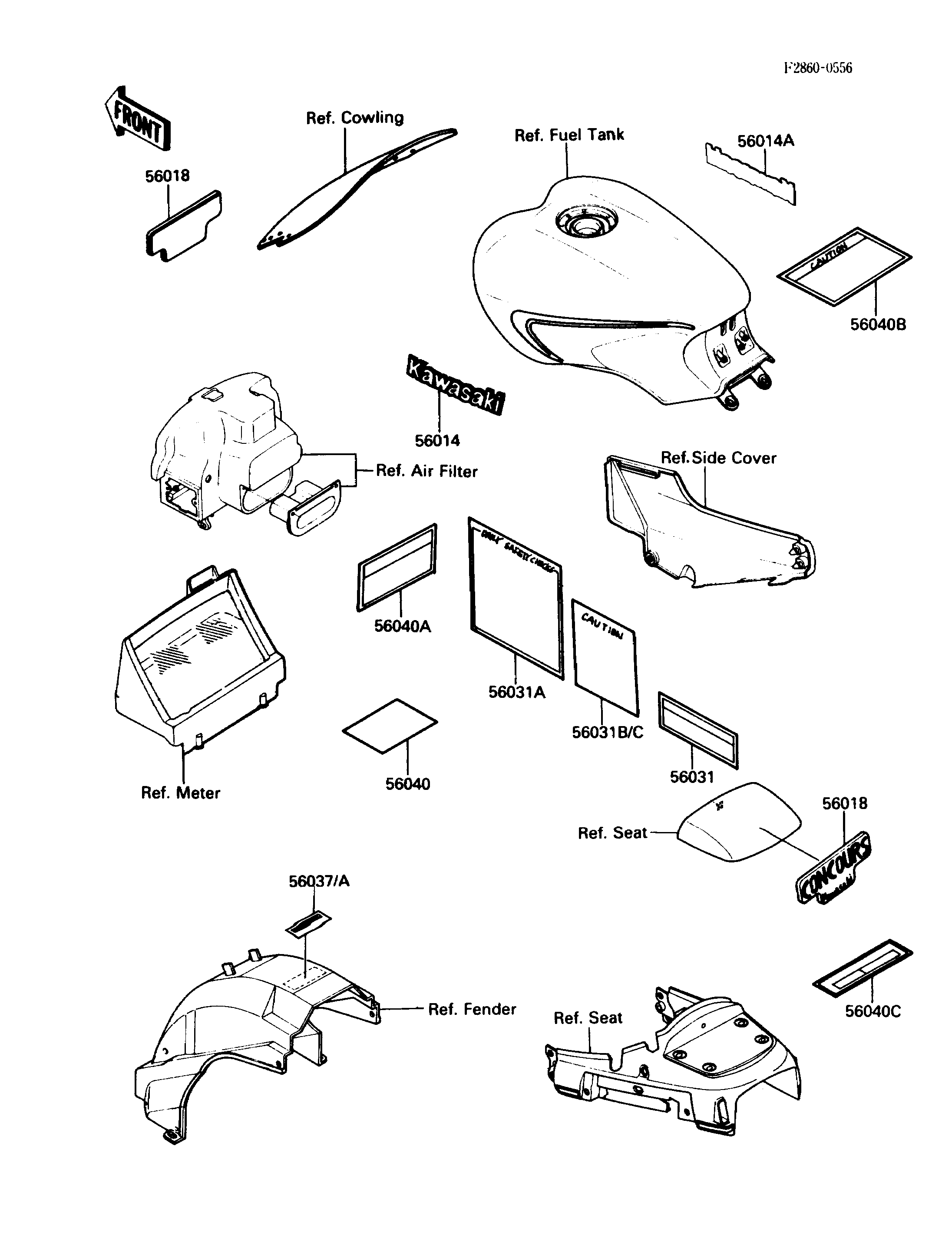

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,LH,KAWASAKI | 56014 | 56014-1134 | 1 | ||
| EMBLEM,FUEL TANK,RH,KAWASAKI | 56014A | 56014-1135 | 1 | ||
| MARK,CARRIER COVER&SCREEN | 56018 | 56018-1869 | 2 | ||
| LABEL-MANUAL,OIL & OIL FILTER | 56031 | 56031-1428 | 1 | ||
| LABEL-MANUAL,DAILY SAFETY | 56031A | 56031-1482 | 1 | ||
| LABEL-MANUAL,BATTERY VENT | 56031B | 56031-1483 | 1 | CNUS | |
| LABEL-MANUAL,BATTERY VENT | 56031C | 56031-1490 | 1 | CA | |
| LABEL-SPECIFICATION,TIRE&LOAD | 56037 | 56037-1347 | 1 | ||
| LABEL-WARNING,BREAK IN CAUTION | 56040 | 56040-1007 | 1 | CAUS | |
| LABEL-WARNING,AIR INTAKE | 56040A | 56040-1014 | 1 | ||
| LABEL-WARNING,EVAPO | 56040B | 56040-1121 | 1 | CA | |
| LABEL-WARNING,CARRIER PAYLOAD | 56040C | 56040-1179 | 1 |
| EMBLEM,FUEL TANK,LH,KAWASAKI | |
| REF # | 56014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| EMBLEM,FUEL TANK,RH,KAWASAKI | |
| REF # | 56014A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,CARRIER COVER&SCREEN | |
| REF # | 56018 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LABEL-MANUAL,OIL & OIL FILTER | |
| REF # | 56031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-MANUAL,DAILY SAFETY | |
| REF # | 56031A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-MANUAL,BATTERY VENT | |
| REF # | 56031B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CNUS |
| REMARKS | |
| LABEL-MANUAL,BATTERY VENT | |
| REF # | 56031C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| LABEL-SPECIFICATION,TIRE&LOAD | |
| REF # | 56037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,BREAK IN CAUTION | |
| REF # | 56040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| LABEL-WARNING,AIR INTAKE | |
| REF # | 56040A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,EVAPO | |
| REF # | 56040B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| LABEL-WARNING,CARRIER PAYLOAD | |
| REF # | 56040C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
