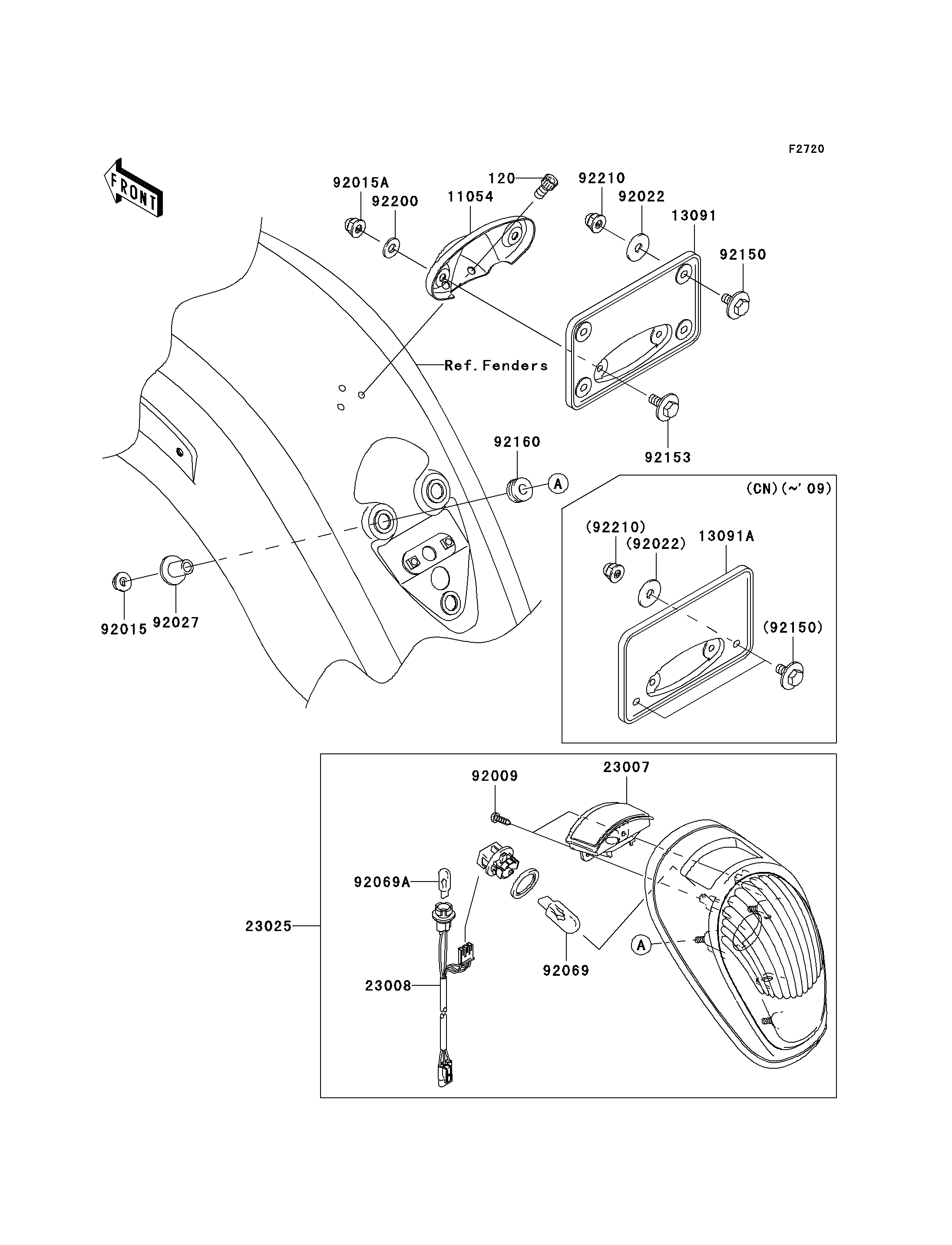

2010 Vulcan® 2000 Classic LT - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
120
11054
13091
23007
23008
23025
92009
92015
92015A
92022
92027
92069
92069A
92150
92153
92160
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X12 120 120CB0612 2
BRACKET,LICENSE 11054 11054-0032 1
HOLDER,LICENSE PLATE 13091 13091-1500 1
LENS-COMP,LICENSE 23007 23007-0020 1
SOCKET-ASSY,TAIL LAMP 23008 23008-0017 1
LAMP-TAIL 23025 23025-0001 1
SCREW,TAPPING,4X12 92009 92009-1381 2
NUT,FLANGED,6MM 92015 92015-1367 3
NUT,CAP,6MM 92015A 92015-1385 2
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 4
COLLAR,L=13.1,BLACK 92027 92027-1450 3
BULB,12V 21/5W 92069 92069-0004 1
BULB,12V 5W 92069A 92069-1016 1
BOLT,6X14 92150 92150-1133 4
BOLT,6X16 92153 92153-0684 2
DAMPER 92160 92160-1162 3
WASHER,6.5X14.5X1.5 92200 92200-3775 2
NUT,CAP,6MM 92210 92210-0003 4
