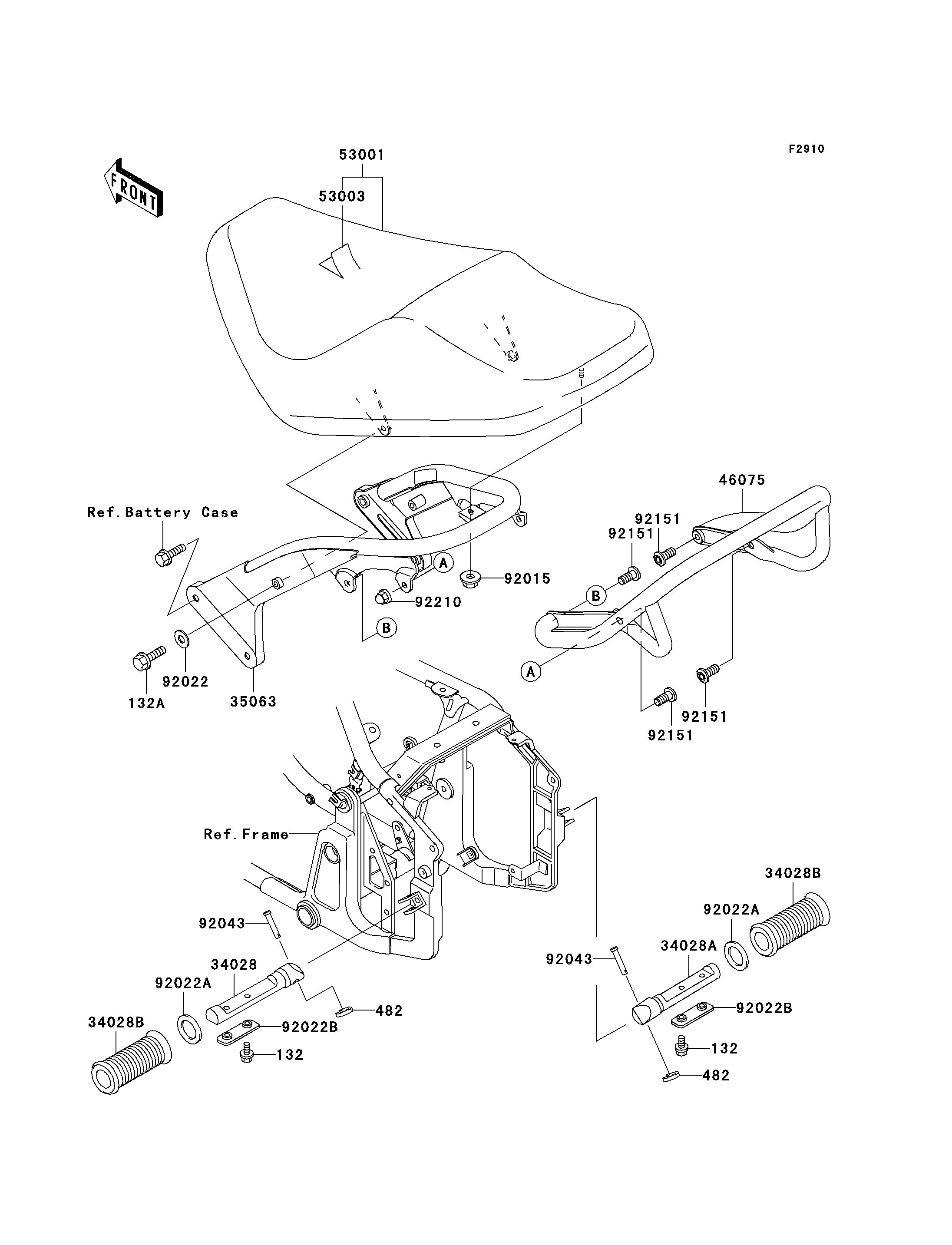

2004 Vulcan 800 Drifter - Accessory

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
482
482
34028
34028A
34028B
34028B
35063
46075
53001
53003
92015
92022
92022A
92022A
92022B
92022B
92043
92043
92151
92151
92151
92151
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132J0510 4
BOLT-FLANGED-SMALL 132A 132J0650 2
CIRCLIP-TYPE-E 482 482L7000 2
STEP,RR,LH 34028 34028-1219 1
STEP,RR,RH 34028A 34028-1220 1
STEP,RR,RUBBER 34028B 34028-1221 2
STAY,SEAT 35063 35063-1084 1
GRIP 46075 46075-1186 1
SEAT-ASSY,DUAL,BLACK 53001 53001-1898-MA 1
LEATHER,SEAT,BLACK 53003 53003-1432-MA 1
NUT,LOCK,FLANGED,6MM 92015 92015-1603 1
WASHER,7X16X1.2 92022 92022-1344 2
WASHER,20X30X2.3 92022A 92022-1568 2
WASHER,STEP 92022B 92022-1874 2
PIN,8X36.5 92043 92043-1339 2
BOLT,SOCKET,10X22 92151 92151-1577 4
NUT,CAP,10MM 92210 92210-1189 2
