Parts Diagrams |

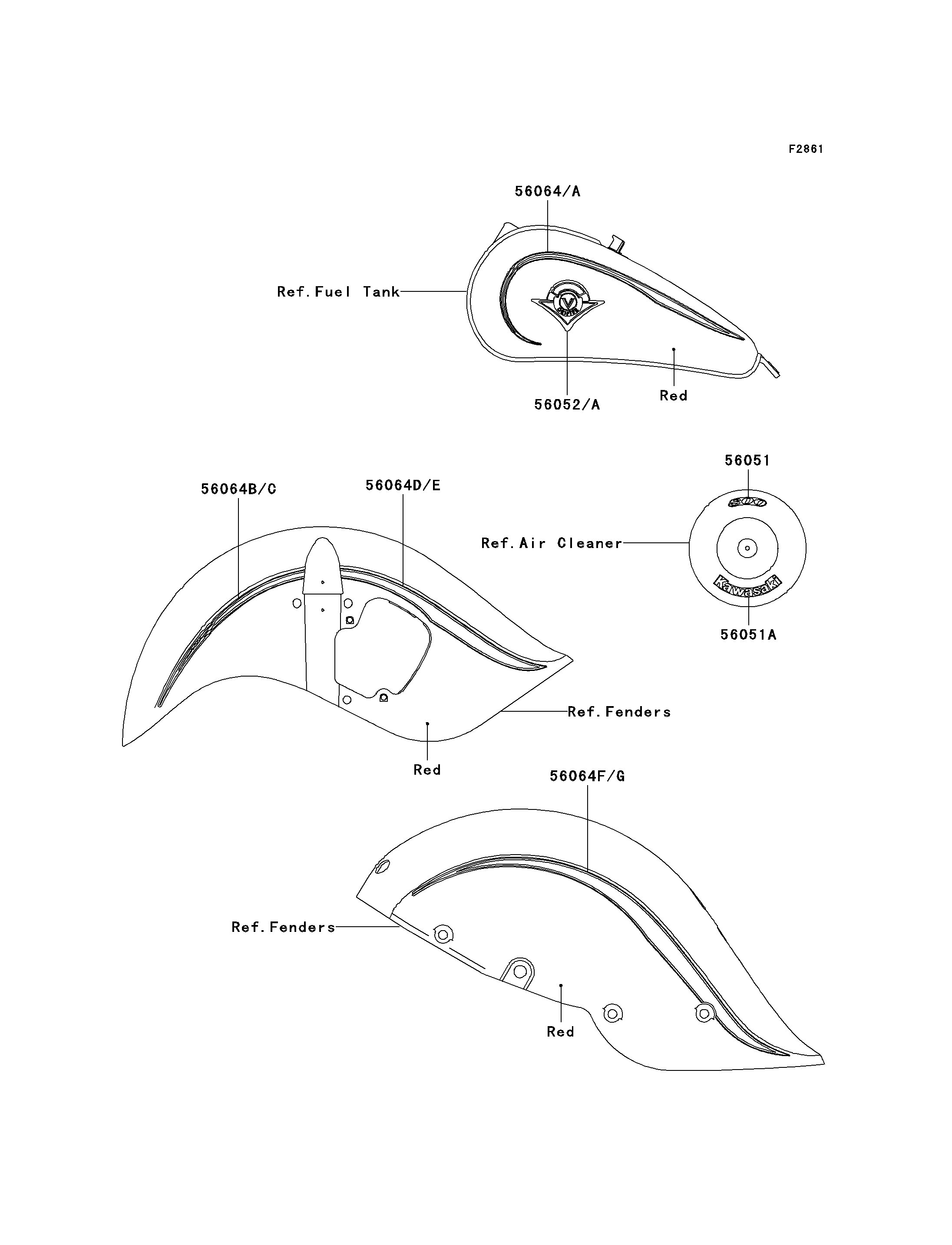

2001 Vulcan 800 Drifter - Decals(Red)(E1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,AIR CLEANER,800 | 56051 | 56051-1433 | 1 | ||
| MARK,AIR CLEANER,KAWASAKI | 56051A | 56051-1434 | 1 | ||
| MARK,FUEL TANK,LH | 56052 | 56052-1340 | 1 | ||
| MARK,FUEL TANK,RH | 56052A | 56052-1341 | 1 | ||
| PATTERN,FUEL TANK,LH | 56064 | 56064-1190 | 1 | ||
| PATTERN,FUEL TANK,RH | 56064A | 56064-1191 | 1 | ||
| PATTERN,FR FENDER,FR,LH | 56064B | 56064-1192 | 1 | ||
| PATTERN,FR FENDER,FR,RH | 56064C | 56064-1193 | 1 | ||
| PATTERN,FR FENDER,RR,LH | 56064D | 56064-1194 | 1 | ||
| PATTERN,FR FENDER,RR,RH | 56064E | 56064-1195 | 1 | ||
| PATTERN,RR FENDER,LH | 56064F | 56064-1196 | 1 | ||
| PATTERN,RR FENDER,RH | 56064G | 56064-1197 | 1 |
