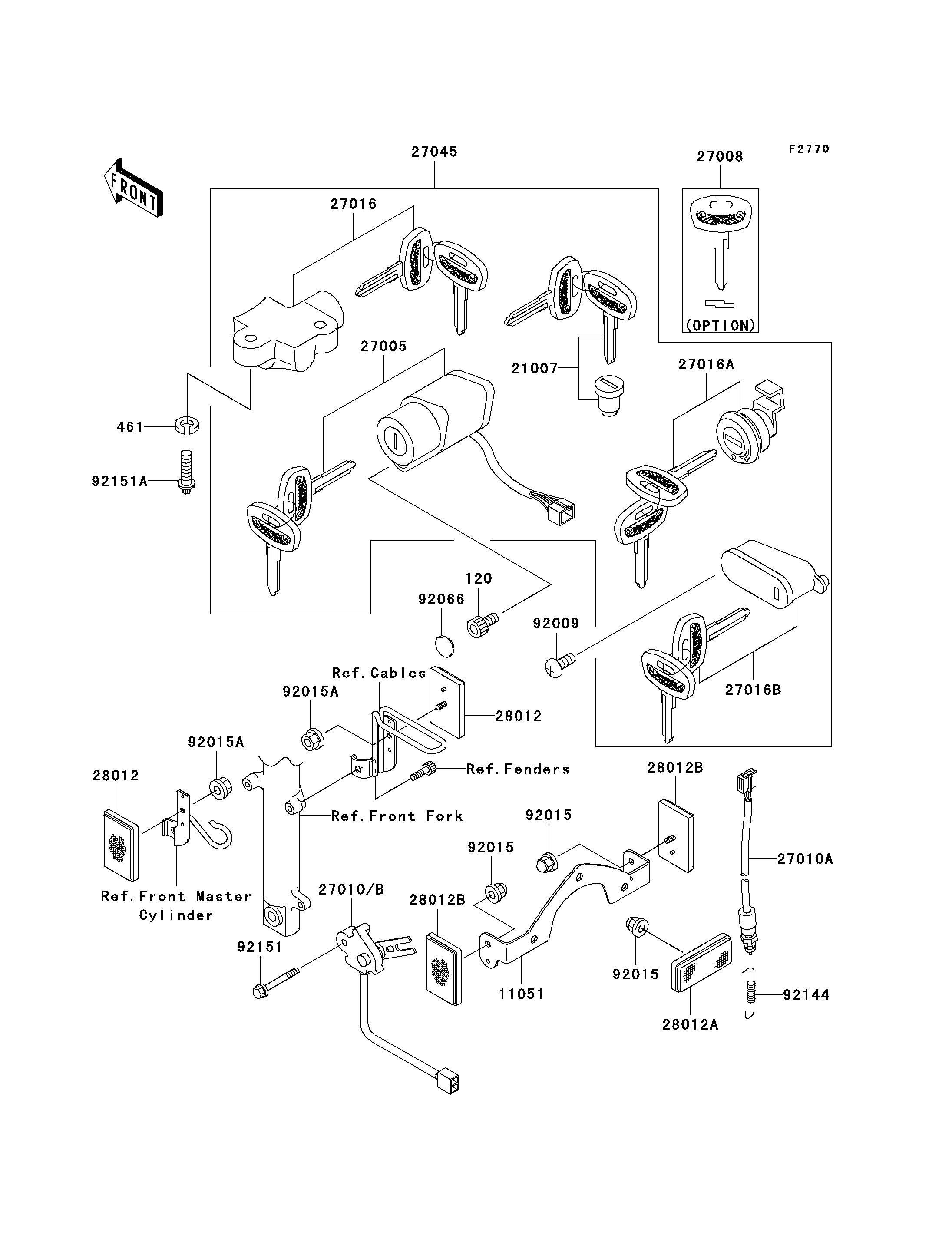

2004 Vulcan 800 Drifter - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
120
461
11051
21007
27005
27008
27010A
27010B
27016
27016A
27016B
27045
28012
28012
28012A
28012B
28012B
92009
92015
92015
92015
92015A
92015A
92066
92144
92151
92151A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120P0512 1
WASHER-SPRING 461 461L0600 2
BRACKET,REFLECTOR 11051 11051-1100 1
ROTOR,LOCK,TANK CAP 21007 21007-5047 1
SWITCH-ASSY-IGNITION 27005 27005-1257 1
KEY-LOCK,BLANK 27008 27008-1208 1 (OPTION)
SWITCH,REAR BRAKE 27010A 27010-1412 1
SWITCH,SIDE STAND 27010B 27010-1466 1
LOCK-ASSY,STEERING 27016 27016-5269 1
LOCK-ASSY,LID 27016A 27016-5275 2
LOCK-ASSY,HELMET 27016B 27016-5276 1
SWITCH-ASSY 27045 27045-5129 1
REFLECTOR-REFLEX,FR 28012 28012-1009 2
REFLECTOR-REFLEX 28012A 28012-1077 1
REFLECTOR-REFLEX 28012B 28012-1088 2
SCREW,5X12 92009 92009-1296 1
NUT,LOCK,FLANGE CAP,5MM 92015 92015-1263 3
NUT,FLANGED,5MM 92015A 92015-1656 2
PLUG 92066 92066-1435 1
SPRING,REAR BRAKE SWITCH 92144 92144-1141 1
BOLT,6X45 92151 92151-1576 1
BOLT,TORX,6X22 92151A 92151-1946 2
