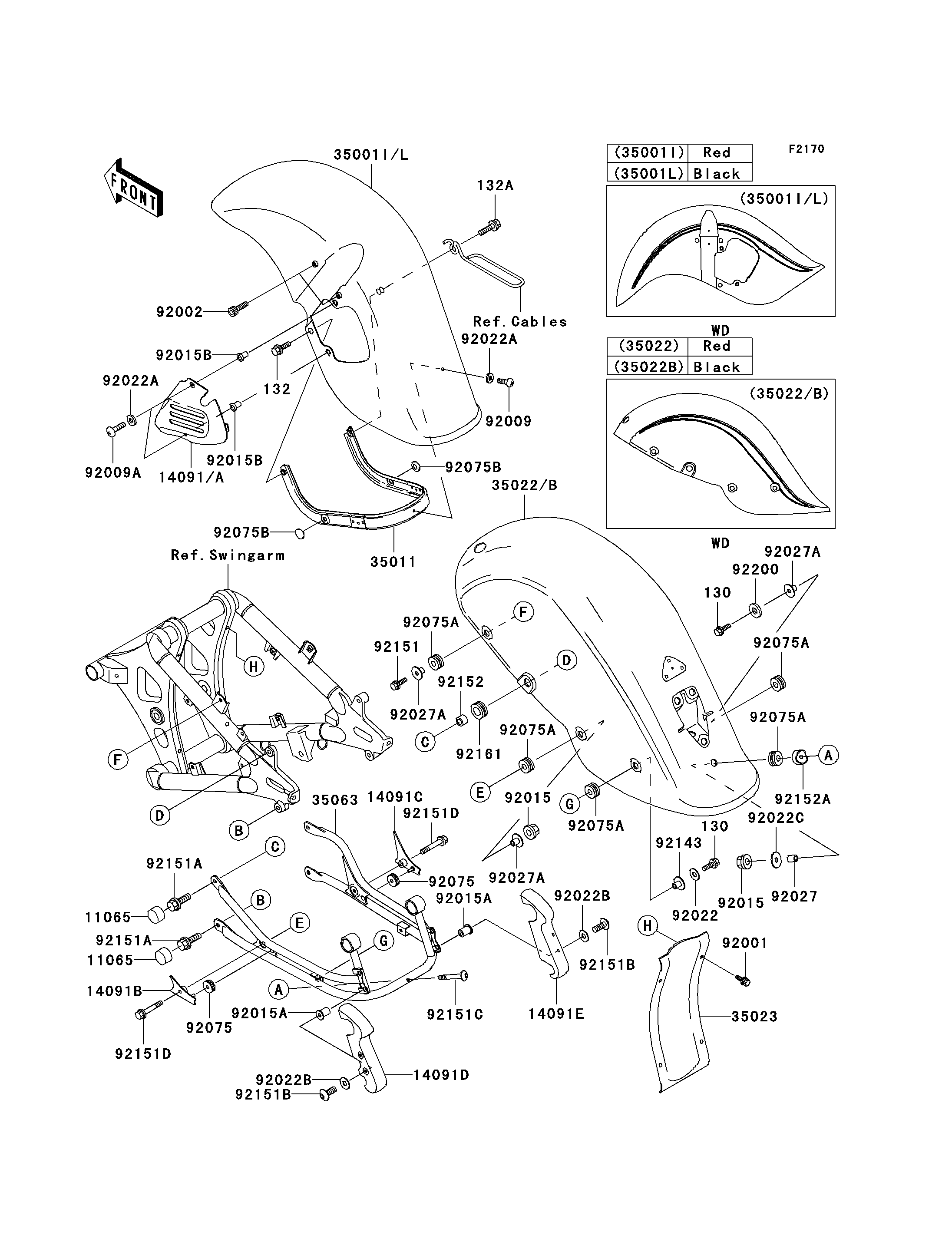

2002 Vulcan 800 Drifter - Fenders(E1/E2)

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
11065
11065
14091
14091
14091B
14091B
14091C
14091C
14091D
14091D
14091E
14091E
35001L
35001L
35011
35011
35022B
35022B
35023
35023
35063
35063
92001
92001
92002
92002
92009
92009
92009A
92009A
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015B
92015B
92015B
92015B
92022
92022
92022A
92022A
92022A
92022A
92022B
92022B
92022B
92022B
92022C
92022C
130
130
130
130
132
132
132A
132A
92027
92027
92027A
92027A
92027A
92027A
92027A
92027A
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075B
92075B
92075B
92075B
92143
92143
92151
92151
92151A
92151A
92151A
92151A
92151B
92151B
92151B
92151B
92151C
92151C
92151D
92151D
92151D
92151D
92152
92152
92152A
92152A
92161
92161
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-1195 2
COVER,FRONT CALIPER,BLACK 14091 14091-1059-B5 1
COVER,RR FENDER STAY,FR,LH 14091B 14091-1312 1
COVER,RR FENDER STAY,FR,RH 14091C 14091-1313 1
COVER,RR FENDER STAY,RR,LH 14091D 14091-1318 1
COVER,RR FENDER STAY,RR,RH 14091E 14091-1319 1
FENDER-ASSY-FRONT,BLACK 35001L 35001-5059-B5 1
STAY,FRONT FENDER 35011 35011-1962 1
FENDER-COMP-REAR,BLACK 35022B 35022-5114-B5 1
FENDER-REAR 35023 35023-1417 1
STAY,RR FENDER 35063 35063-1150 1
BOLT,6X20 92001 92001-1765 4
BOLT,SOCKET,8X30 92002 92002-1179 4
SCREW,5X12 92009 92009-1652 1
SCREW,5X16,BLACK 92009A 92009-1654 2
NUT,6MM 92015 92015-1386 3
NUT 92015A 92015-1700 4
NUT,WELL,5MM 92015B 92015-1757 2
WASHER,6.5X16X1.0 92022 92022-1093 1
WASHER,NYLON,5.3X11.5X1.5 92022A 92022-1521 3
WASHER,6.5X16X1.0 92022B 92022-1654 4
WASHER,7X24X1.6 92022C 92022-228 1
BOLT-FLANGED,6X25 130 130J0625 2
BOLT-FLANGED-SMALL 132 132E0820 1
BOLT-FLANGED-SMALL 132A 132E0825 1
COLLAR,6.3X10X12 92027 92027-1143 1
COLLAR,L=13.1,BLACK 92027A 92027-1450 5
DAMPER 92075 92075-1629 2
DAMPER 92075A 92075-1690 7
DAMPER,RUBBER 92075B 92075-261 2
COLLAR 92143 92143-1960 1
BOLT,FLANGED,6X25 92151 92151-1488 2
BOLT,FLANGED,10X34 92151A 92151-1509 4
BOLT,SOCKET,6X20 92151B 92151-1750 4
BOLT,SOCKET,6X50 92151C 92151-1902 1
BOLT,SOCKET,6X40 92151D 92151-1921 2
COLLAR,11X18X11.5 92152 92152-1165 2
COLLAR 92152A 92152-1283 1
DAMPER 92161 92161-1051 2
WASHER,6.5X13X4 92200 92200-1380 1
