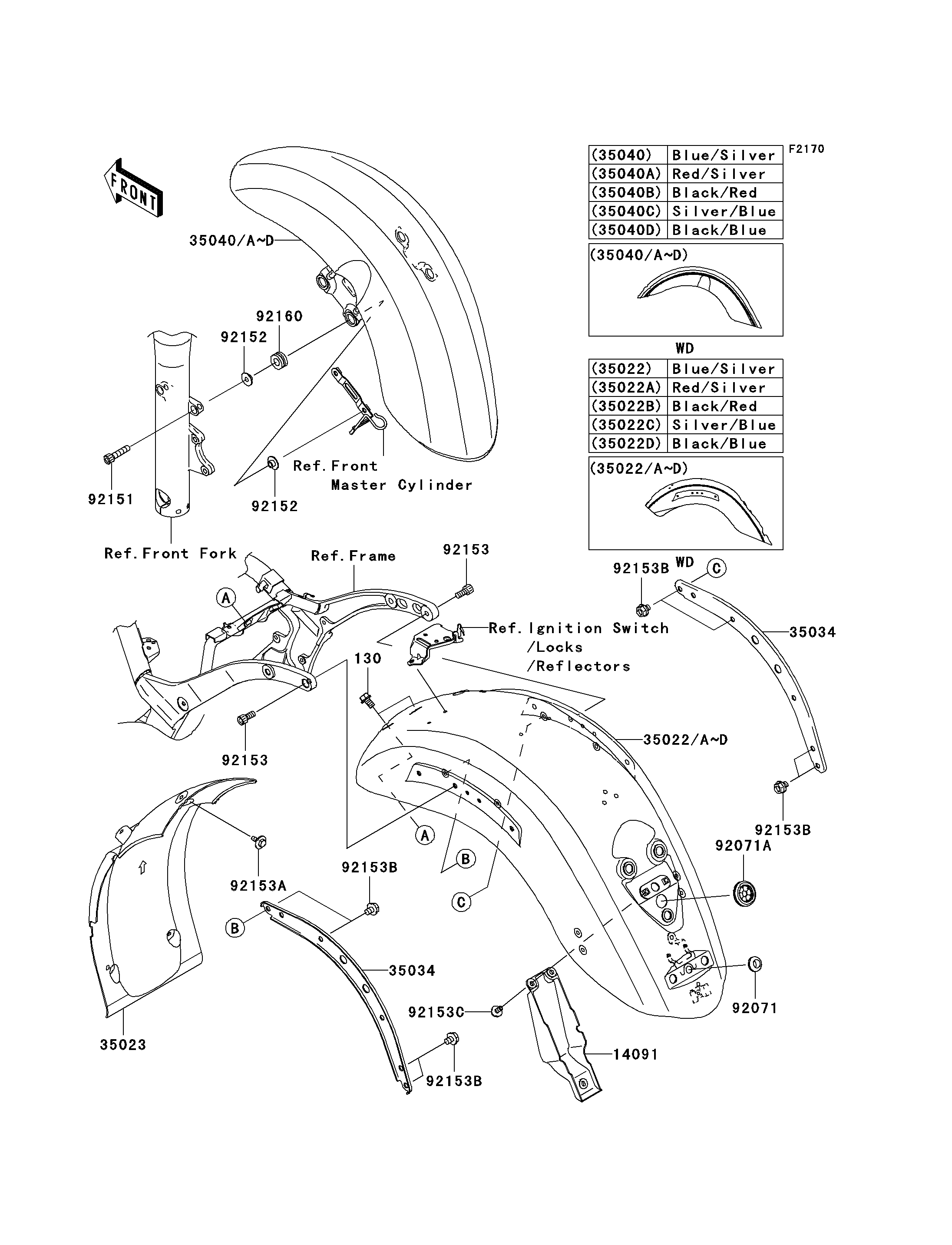

2009 Vulcan® 2000 Classic LT - Fenders

DOWNLOAD PDF
SELECT A NEW PART
14091
14091
35022B
35022B
35022C
35022C
35023
35023
35034
35034
35034
35034
35040B
35040B
35040C
35040C
92071
92071
92071A
92071A
92151
92151
92152
92152
92152
92152
92153
92153
92153
92153
130
130
92153A
92153A
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153C
92153C
92160
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,REAR FENDER 14091 14091-0070 1
FENDER-COMP-REAR,BLACK/RED 35022B 35022-5211-26E 1
FENDER-COMP-REAR,SILVER/BLUE 35022C 35022-5212-26F 1
FENDER-REAR,INNER 35023 35023-0033 1
REINFORCE,RR FENDER 35034 35034-0049 2
FENDER-COMP-FRONT,BLACK/RED 35040B 35040-5027-26E 1
FENDER-COMP-FRONT,SILVER/BLUE 35040C 35040-5028-26F 1
GROMMET,10MM 92071 92071-019 1
GROMMET 92071A 92071-1265 1
BOLT,SOCKET,8X35 92151 92151-1535 4
COLLAR 92152 92152-0249 8
BOLT,SOCKET,8X18 92153 92153-0672 2
BOLT-FLANGED,8X16 130 130BB0816 2
BOLT,6X16 92153A 92153-0698 4
BOLT,FLANGED,8X10 92153B 92153-0724 8
BOLT,SOCKET,6X14 92153C 92153-0729 3
DAMPER 92160 92160-1007 4
