Parts Diagrams |

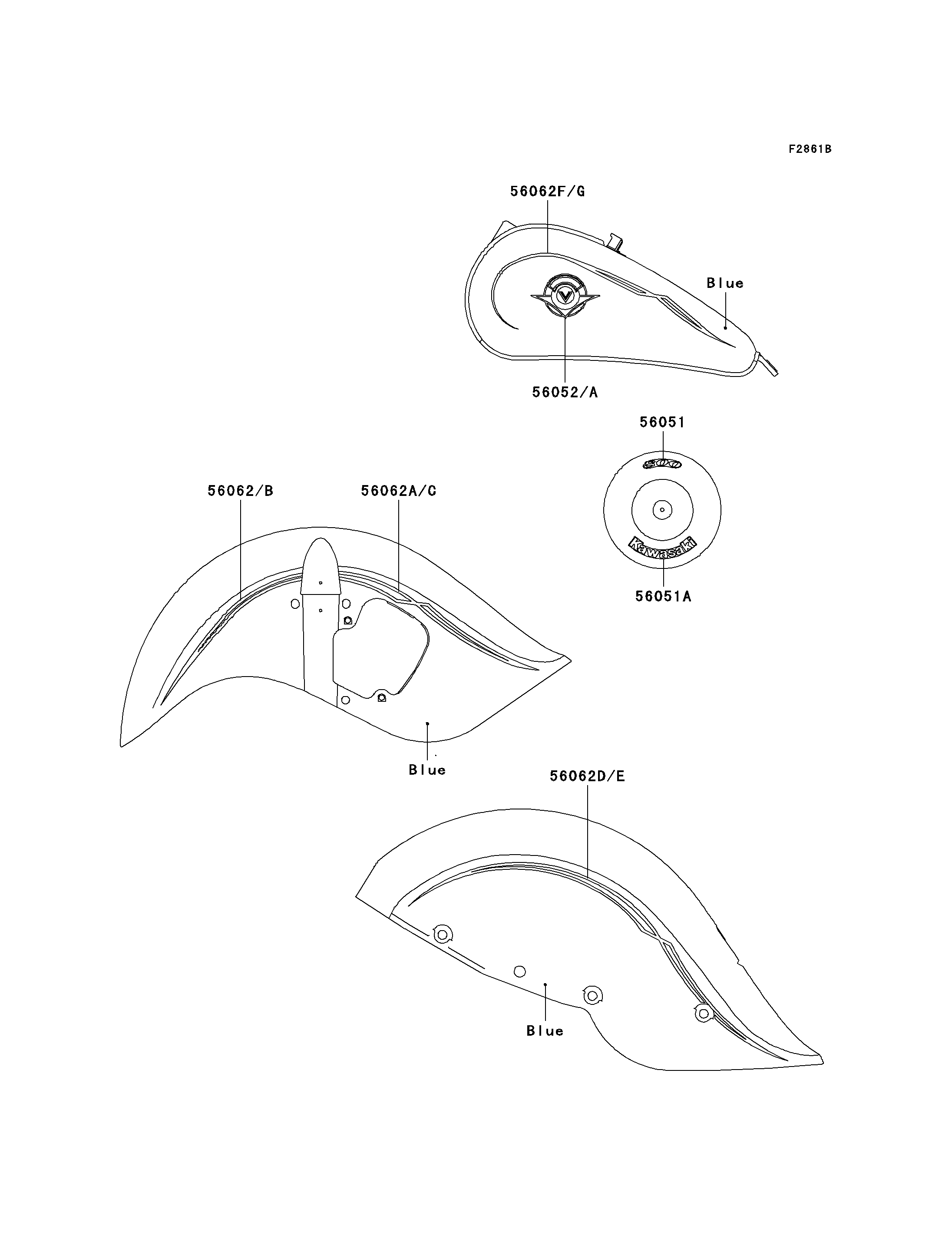

2000 Vulcan 800 Drifter - Decals(Blue)(VN800-C2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,AIR CLEANER,800 | 56051 | 56051-1433 | 1 | ||
| MARK,AIR CLEANER,KAWASAKI | 56051A | 56051-1434 | 1 | ||
| MARK,FUEL TANK,LH | 56052 | 56052-1058 | 1 | ||
| MARK,FUEL TANK,RH | 56052A | 56052-1059 | 1 | ||
| PATTERN,FR FENDER,FR,LH | 56062 | 56062-1899 | 1 | ||
| PATTERN,FR FENDER,RR,LH | 56062A | 56062-1900 | 1 | ||
| PATTERN,FR FENDER,FR,RH | 56062B | 56062-1901 | 1 | ||
| PATTERN,FR FENDER,RR,RH | 56062C | 56062-1902 | 1 | ||
| PATTERN,RR FENDER,LH | 56062D | 56062-1903 | 1 | ||
| PATTERN,RR FENDER,RH | 56062E | 56062-1904 | 1 | ||
| PATTERN,FUEL TANK,LH | 56062F | 56062-1911 | 1 | ||
| PATTERN,FUEL TANK,RH | 56062G | 56062-1912 | 1 |
| MARK,AIR CLEANER,800 | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,AIR CLEANER,KAWASAKI | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,LH | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,RH | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,FR,LH | |
| REF # | 56062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,RR,LH | |
| REF # | 56062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,FR,RH | |
| REF # | 56062B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,RR,RH | |
| REF # | 56062C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,LH | |
| REF # | 56062D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,RH | |
| REF # | 56062E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56062F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56062G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
