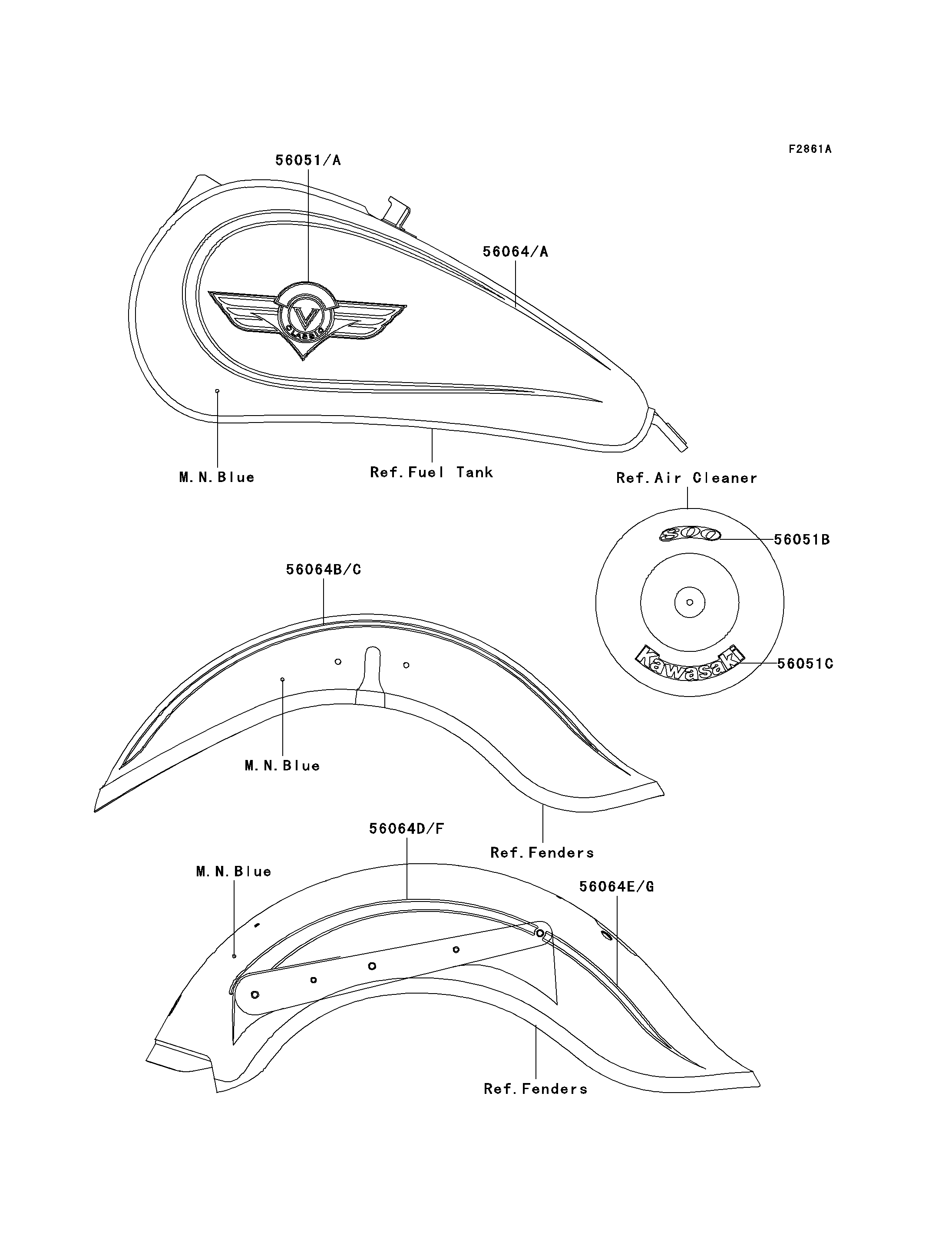

2001 Vulcan 800 Classic - Decals(M.N.Blue)(VN800-B6)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,LH | 56051 | 56051-1429 | 1 | ||
| MARK,FUEL TANK,RH | 56051A | 56051-1430 | 1 | ||
| MARK,AIR CLEANER,800 | 56051B | 56051-1433 | 1 | ||
| MARK,AIR CLEANER,KAWASAKI | 56051C | 56051-1434 | 1 | ||
| PATTERN,FUEL TANK,LH | 56064 | 56064-1212 | 1 | ||
| PATTERN,FUEL TANK,RH | 56064A | 56064-1213 | 1 | ||
| PATTERN,FR FENDER,LH | 56064B | 56064-1214 | 1 | ||
| PATTERN,FR FENDER,RH | 56064C | 56064-1215 | 1 | ||
| PATTERN,RR FENDER,FR,LH | 56064D | 56064-1216 | 1 | ||
| PATTERN,RR FENDER,RR,LH | 56064E | 56064-1217 | 1 | ||
| PATTERN,RR FENDER,FR,RH | 56064F | 56064-1218 | 1 | ||
| PATTERN,RR FENDER,RR,RH | 56064G | 56064-1219 | 1 |
| MARK,FUEL TANK,LH | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,RH | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,AIR CLEANER,800 | |
| REF # | 56051B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,AIR CLEANER,KAWASAKI | |
| REF # | 56051C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56064A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56064B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56064C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,FR,LH | |
| REF # | 56064D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,RR,LH | |
| REF # | 56064E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,FR,RH | |
| REF # | 56064F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,RR,RH | |
| REF # | 56064G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
