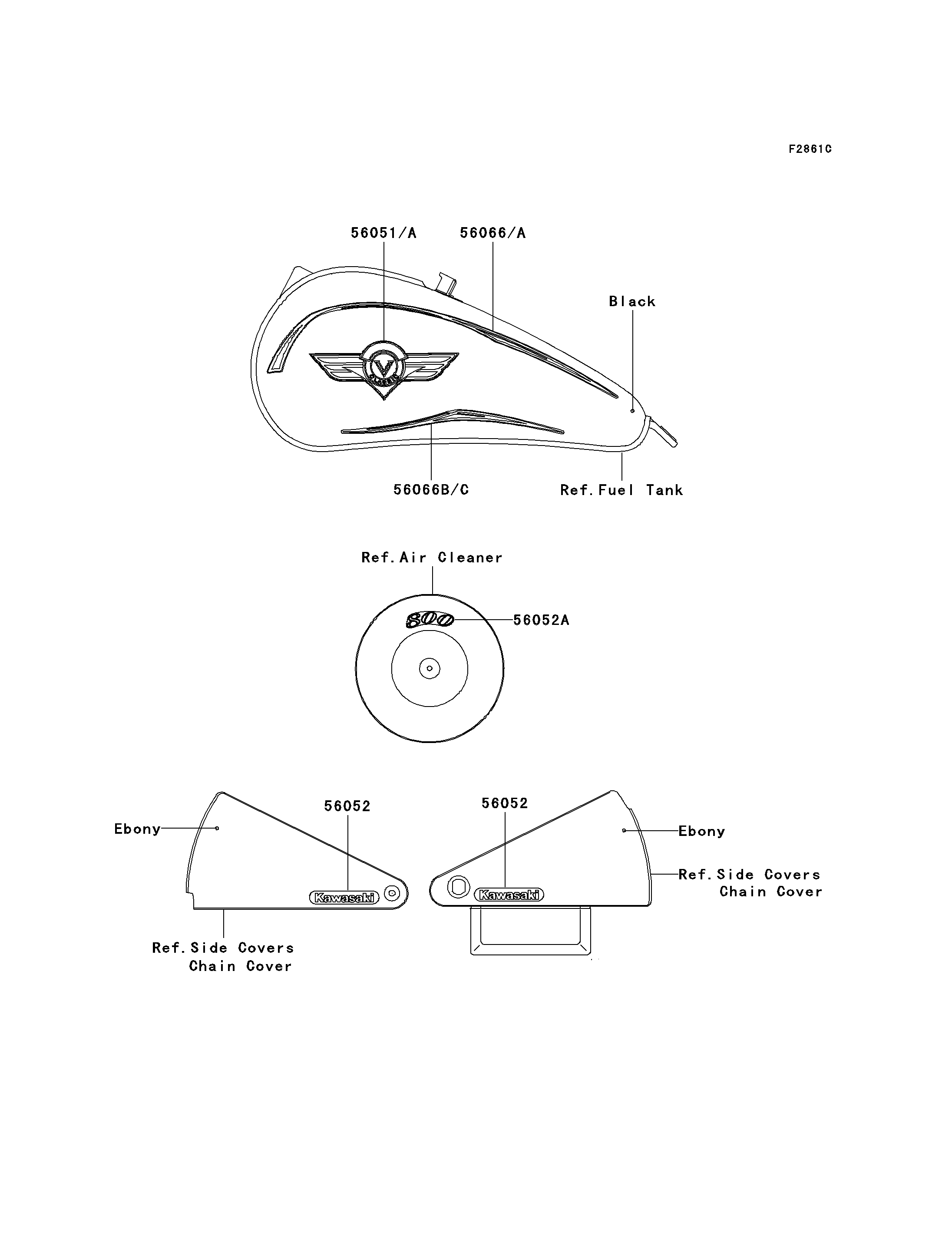

2005 Vulcan 800 Classic - Decals(Black)(CN)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,LH | 56051 | 56051-1429 | 1 | CN | |
| MARK,FUEL TANK,RH | 56051A | 56051-1430 | 1 | CN | |
| MARK,SIDE COVER,KAWASAKI | 56052 | 56052-1533 | 2 | CN | |
| MARK,AIR CLEANER COVER,800 | 56052A | 56052-1544 | 1 | CN | |
| PATTERN,FUEL TANK,UPP,LH | 56066 | 56066-1859 | 1 | CN | |
| PATTERN,FUEL TANK,UPP,RH | 56066A | 56066-1860 | 1 | CN | |
| PATTERN,FUEL TANK,LWR,LH | 56066B | 56066-1861 | 1 | CN | |
| PATTERN,FUEL TANK,LWR,RH | 56066C | 56066-1862 | 1 | CN |
| MARK,FUEL TANK,LH | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,FUEL TANK,RH | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,SIDE COVER,KAWASAKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,AIR CLEANER COVER,800 | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,UPP,LH | |
| REF # | 56066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,UPP,RH | |
| REF # | 56066A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,LWR,LH | |
| REF # | 56066B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,LWR,RH | |
| REF # | 56066C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
