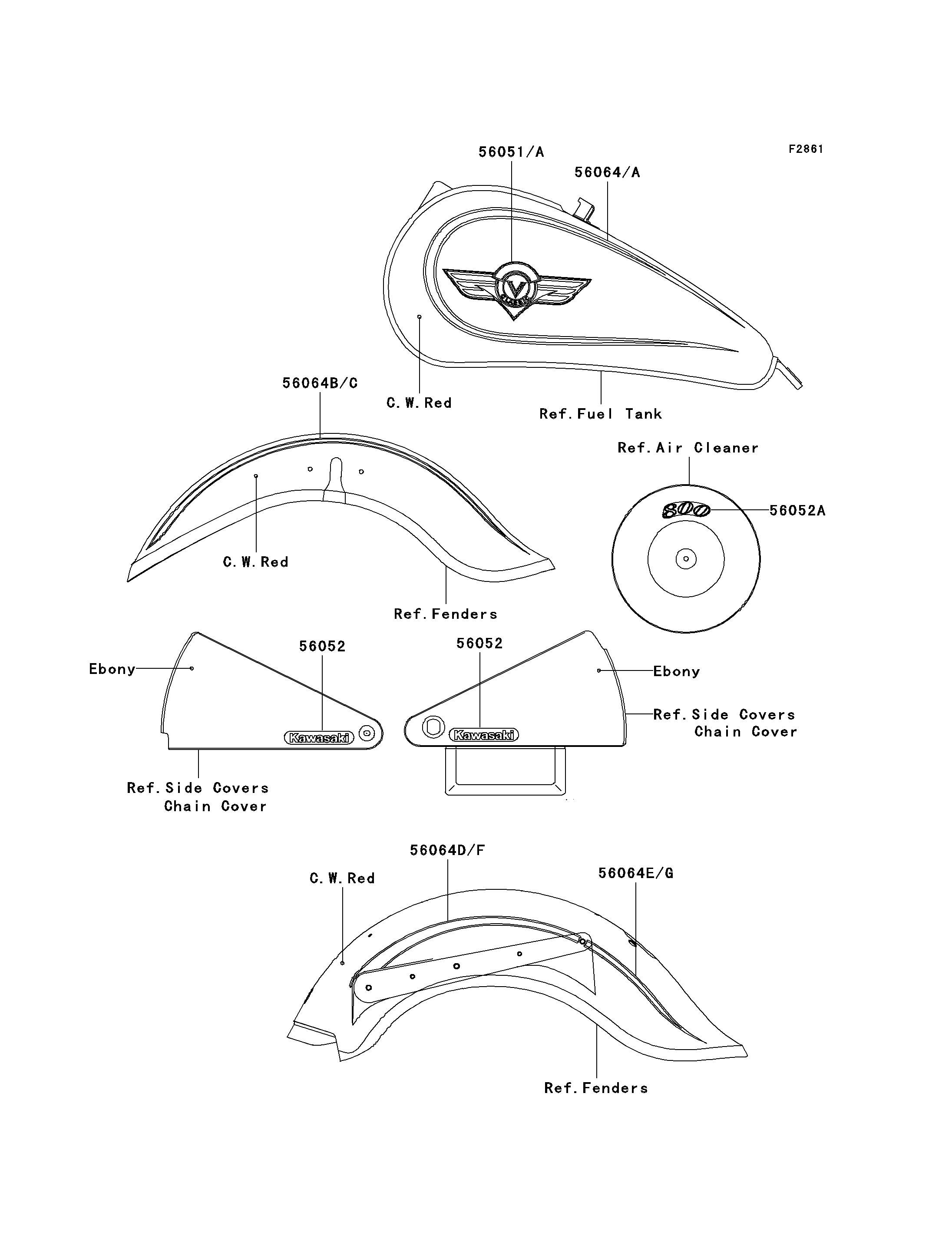

2005 Vulcan 800 Classic - Decals(C.W.Red)(CN)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,LH | 56051 | 56051-1429 | 1 | CN | |
| MARK,FUEL TANK,RH | 56051A | 56051-1430 | 1 | CN | |
| MARK,SIDE COVER,KAWASAKI | 56052 | 56052-1533 | 2 | CN | |
| MARK,AIR CLEANER COVER,800 | 56052A | 56052-1544 | 1 | CN | |
| PATTERN,FUEL TANK,LH | 56064 | 56064-1204 | 1 | CN | |
| PATTERN,FUEL TANK,RH | 56064A | 56064-1205 | 1 | CN | |
| PATTERN,FR FENDER,LH | 56064B | 56064-1206 | 1 | CN | |
| PATTERN,FR FENDER,RH | 56064C | 56064-1207 | 1 | CN | |
| PATTERN,RR FENDER,FR,LH | 56064D | 56064-1208 | 1 | CN | |
| PATTERN,RR FENDER,RR,LH | 56064E | 56064-1209 | 1 | CN | |
| PATTERN,RR FENDER,FR,RH | 56064F | 56064-1210 | 1 | CN | |
| PATTERN,RR FENDER,RR,RH | 56064G | 56064-1211 | 1 | CN |
