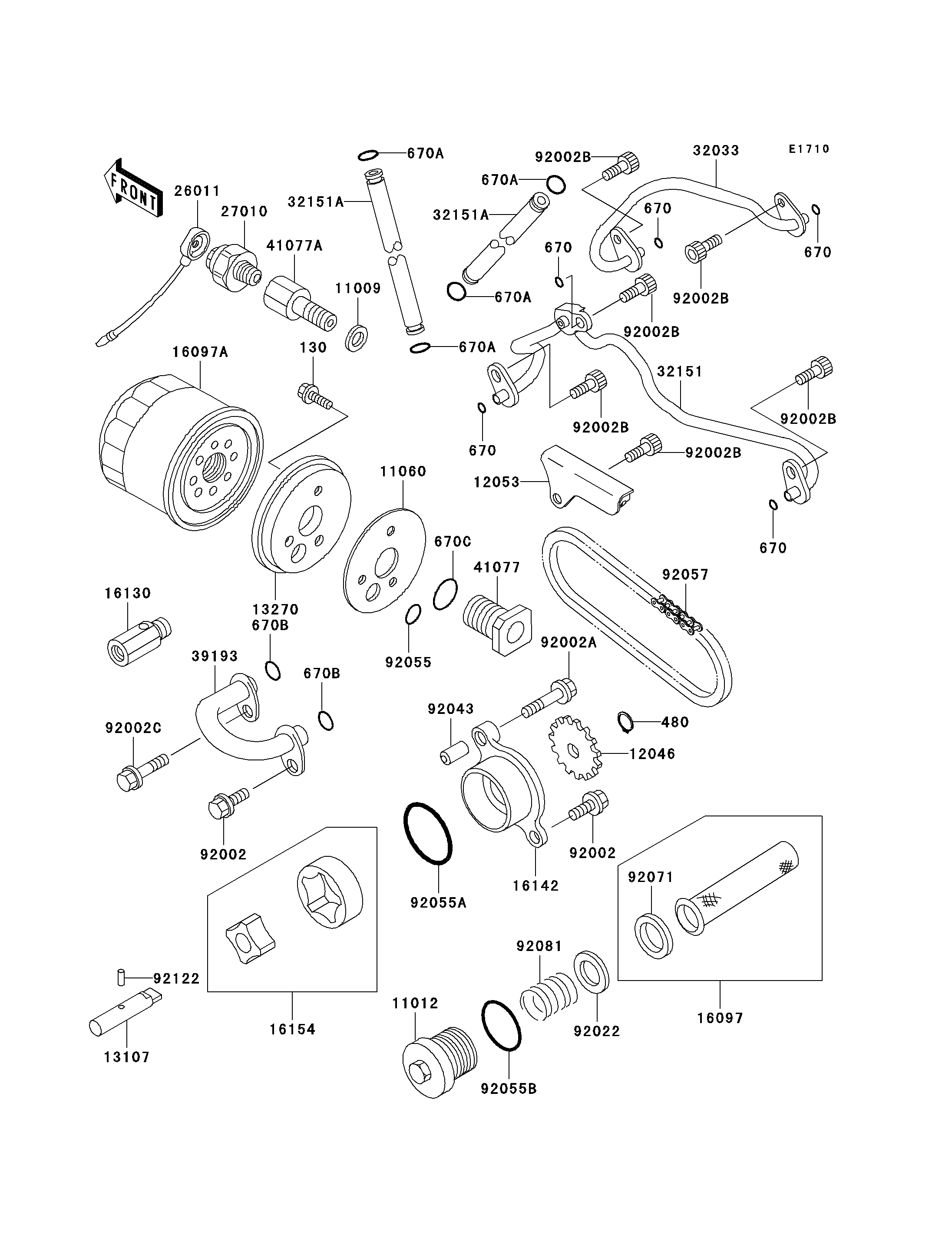

2005 Vulcan 800 Classic - Oil Pump/Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
130
480
670
670
670
670
670
670A
670A
670A
670A
670B
670B
670C
11009
11012
11060
12046
12053
13107
13270
16097
16097A
16130
16142
16154
26011
27010
32033
32151
32151A
32151A
39193
41077
41077A
92002
92002
92002A
92002B
92002B
92002B
92002B
92002B
92002B
92002C
92022
92043
92055
92055A
92055B
92057
92071
92081
92122
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130P0514 3
CIRCLIP-TYPE-C,11MM 480 480J1100 1
O RING,6MM 670 670D1506 5
O RING,7MM 670A 670D1507 4
O RING,12MM 670B 670D2012 2
O RING,20MM 670C 670D2020 1
GASKET,10X14.5X1.5 11009 11009-1105 1
CAP,OIL FILTER 11012 11012-1461 1
GASKET,OIL FILTER 11060 11060-1092 1
SPROCKET,OIL PUMP,19T 12046 12046-1079 1
GUIDE-CHAIN 12053 12053-1356 1
SHAFT,OIL PUMP 13107 13107-1131 1
PLATE,OIL FILTER 13270 13270-1170 1
FILTER-ASSY-OIL 16097 16097-1058 1
FILTER-ASSY-OIL 16097A 16097-1072 1
VALVE-ASSY-RELIEF 16130 16130-1001 1
COVER-PUMP,OIL 16142 16142-1061 1
ROTOR-PUMP 16154 16154-1056 1
WIRE-LEAD 26011 26011-1626 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE,OIL,FILTER-CRANKSHAFT 32033 32033-1742 1
PIPE 32151 32151-1894 1
PIPE 32151A 32151-1895 2
PIPE-OIL,PUMP-FILTER 39193 39193-1021 1
ADAPTER,OIL FILTER 41077 41077-1052 1
ADAPTER,PRESSURE SWITCH 41077A 41077-1084 1
BOLT,6X16 92002 92002-1439 2
BOLT,6X30 92002A 92002-1534 1
BOLT,SOCKET,6X14 92002B 92002-1592 6
BOLT,6X25 92002C 92002-1612 1
WASHER,16.5X28X0.5 92022 92022-169 1
PIN,6.2X8X14 92043 92043-1263 1
RING-O,OIL FILTER 92055 92055-1011 1
RING-O,44.7X2.4 92055A 92055-1279 1
RING-O,35.2X2.4 92055B 92055-1358 1
CHAIN,PUMP,BS25HX50L 92057 92057-1183 1
GROMMET,OIL STRAINER 92071 92071-100 1
SPRING,OIL FILTER 92081 92081-1862 1
ROLLER,3X15.8 92122 92122-1126 1
