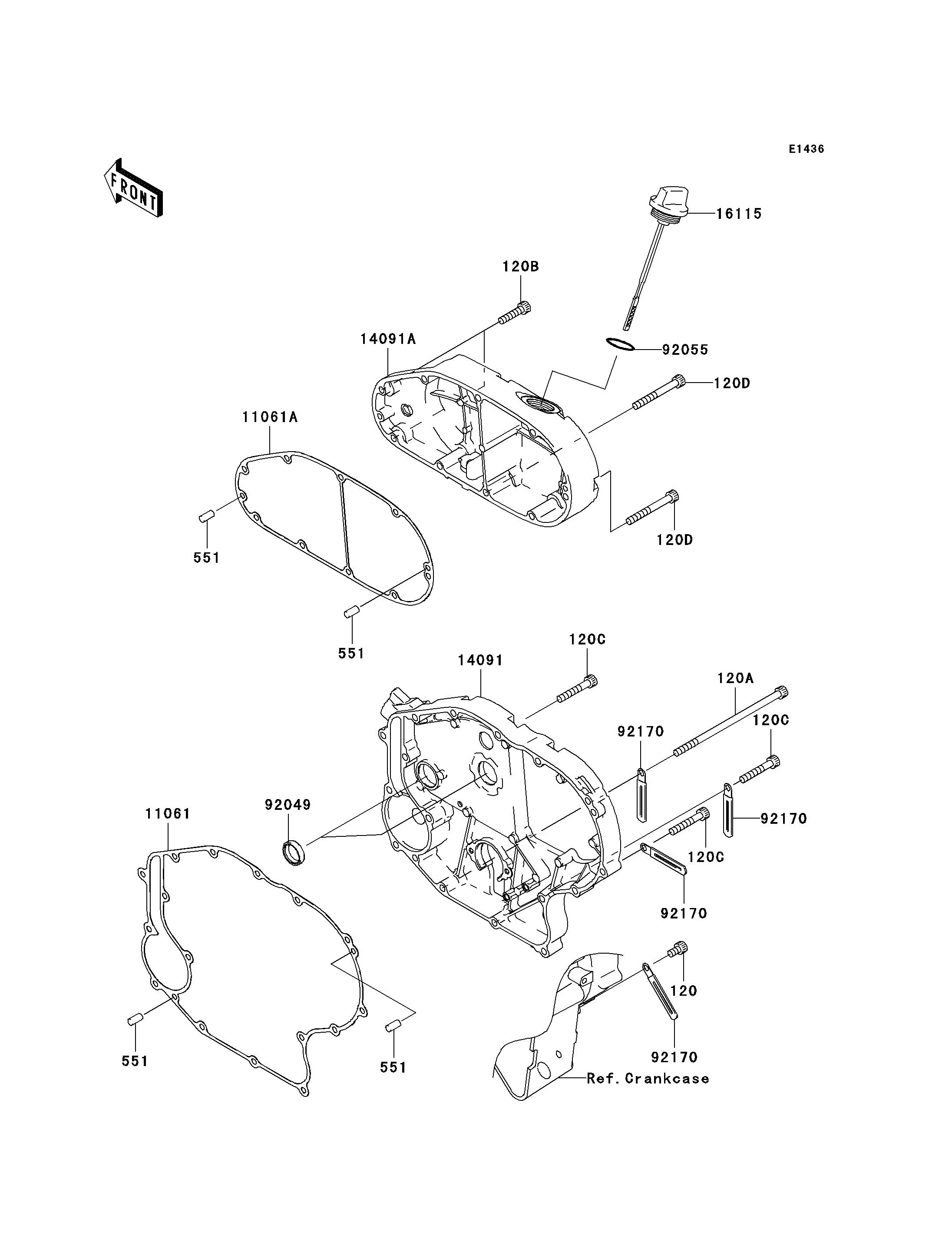

2009 Vulcan® 2000 Classic LT - Right Engine Cover(s)
120
120A
120B
120C
120C
120C
120D
120D
551
551
551
551
11061
11061A
14091
14091A
16115
92049
92055
92170
92170
92170
92170
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X10 | 120 | 120R0610 | 1 | ||
| BOLT-SOCKET,6X125 | 120A | 120R06125 | 1 | ||
| BOLT-SOCKET,6X25 | 120B | 120R0625 | 2 | ||
| BOLT-SOCKET,6X35 | 120C | 120R0635 | 15 | ||
| BOLT-SOCKET,6X50 | 120D | 120R0650 | 7 | ||
| PIN-DOWEL,6X12 | 551 | 551A0612 | 4 | ||
| GASKET,TRANSMISSION,INSIDE | 11061 | 11061-0017 | 1 | ||
| GASKET,TRANSMISSION,OUTSIDE | 11061A | 11061-0018 | 1 | ||
| COVER,TRANSMISSION,INSIDE | 14091 | 14091-0251 | 1 | ||
| COVER,TRANSMISSION OUTSIDE | 14091A | 14091-0263 | 1 | ||
| CAP-OIL FILLER | 16115 | 16115-0010 | 1 | ||
| SEAL-OIL,20X26X6 | 92049 | 92049-0019 | 2 | ||
| RING-O,31.7X2.4 | 92055 | 92055-049 | 1 | ||
| CLAMP | 92170 | 92170-1514 | 4 |
| BOLT-SOCKET,6X10 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X125 | |
| REF # | 120A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X25 | |
| REF # | 120B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X35 | |
| REF # | 120C |
|---|---|
| PART NUMBER | |
| QUANTITY | 15 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X50 | |
| REF # | 120D |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL,6X12 | |
| REF # | 551 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GASKET,TRANSMISSION,INSIDE | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,TRANSMISSION,OUTSIDE | |
| REF # | 11061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,TRANSMISSION,INSIDE | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,TRANSMISSION OUTSIDE | |
| REF # | 14091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-OIL FILLER | |
| REF # | 16115 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,20X26X6 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,31.7X2.4 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
