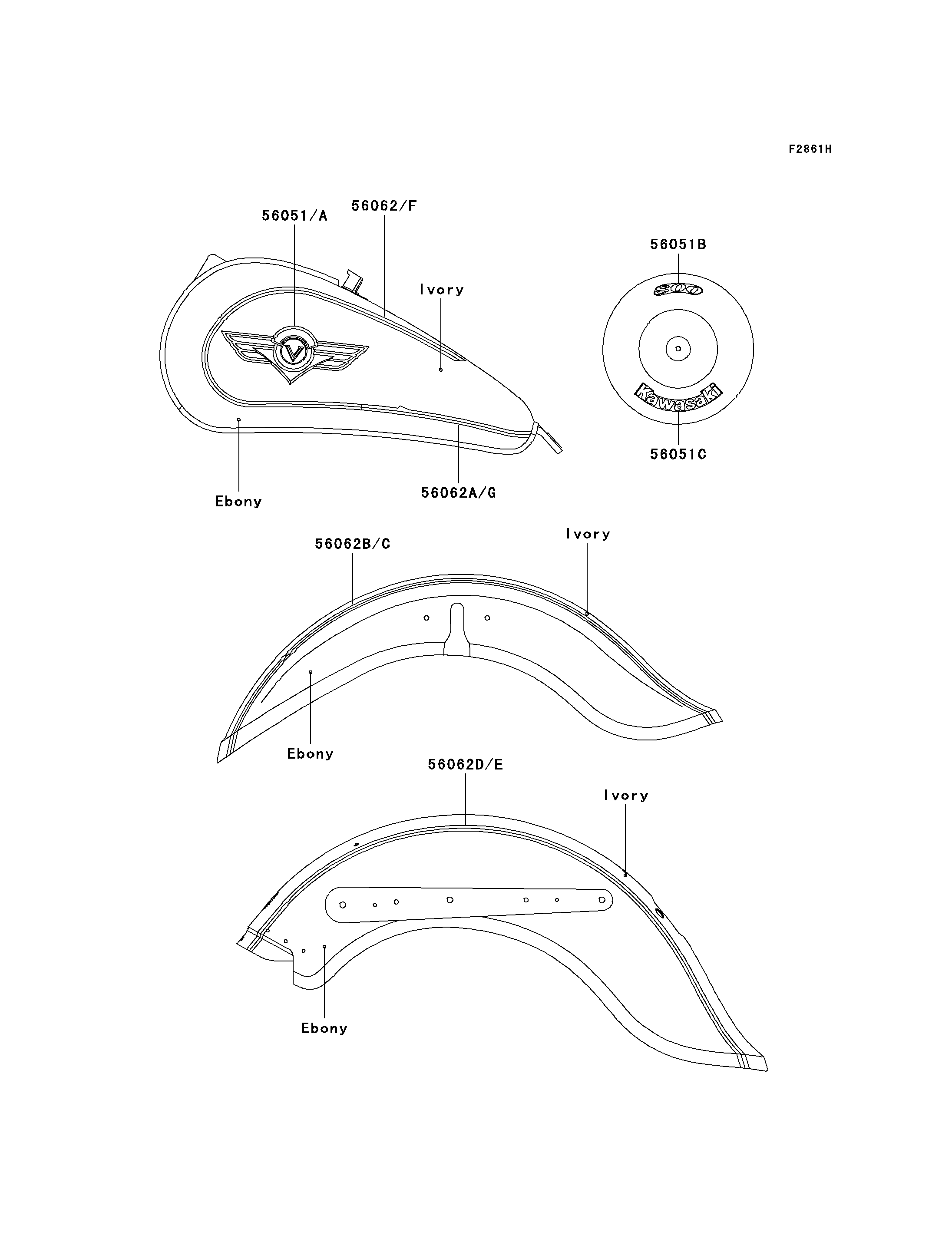

1999 Vulcan 800 Classic - Decals(Ebony/Ivoly)(VN800-B4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,LH | 56051 | 56051-1429 | 1 | CN | |
| MARK,FUEL TANK,RH | 56051A | 56051-1430 | 1 | CN | |
| MARK,AIR CLEANER,800 | 56051B | 56051-1433 | 1 | CN | |
| MARK,AIR CLEANER,KAWASAKI | 56051C | 56051-1434 | 1 | CN | |
| PATTERN,FUEL TANK,FR,LH | 56062 | 56062-1597 | 1 | CN | |
| PATTERN,FUEL TANK,RR,LH | 56062A | 56062-1598 | 1 | CN | |
| PATTERN,FR FENDER,LH | 56062B | 56062-1599 | 1 | CN | |
| PATTERN,FR FENDER,RH | 56062C | 56062-1600 | 1 | CN | |
| PATTERN,RR FENDER,LH | 56062D | 56062-1601 | 1 | CN | |
| PATTERN,RR FENDER,RH | 56062E | 56062-1602 | 1 | CN | |
| PATTERN,FUEL TANK,FR,RH | 56062F | 56062-1613 | 1 | CN | |
| PATTERN,FUEL TANK,RR,RH | 56062G | 56062-1614 | 1 | CN |
| MARK,FUEL TANK,LH | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,FUEL TANK,RH | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,AIR CLEANER,800 | |
| REF # | 56051B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,AIR CLEANER,KAWASAKI | |
| REF # | 56051C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,FR,LH | |
| REF # | 56062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,RR,LH | |
| REF # | 56062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56062B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56062C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,RR FENDER,LH | |
| REF # | 56062D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,RR FENDER,RH | |
| REF # | 56062E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,FR,RH | |
| REF # | 56062F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,RR,RH | |
| REF # | 56062G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
