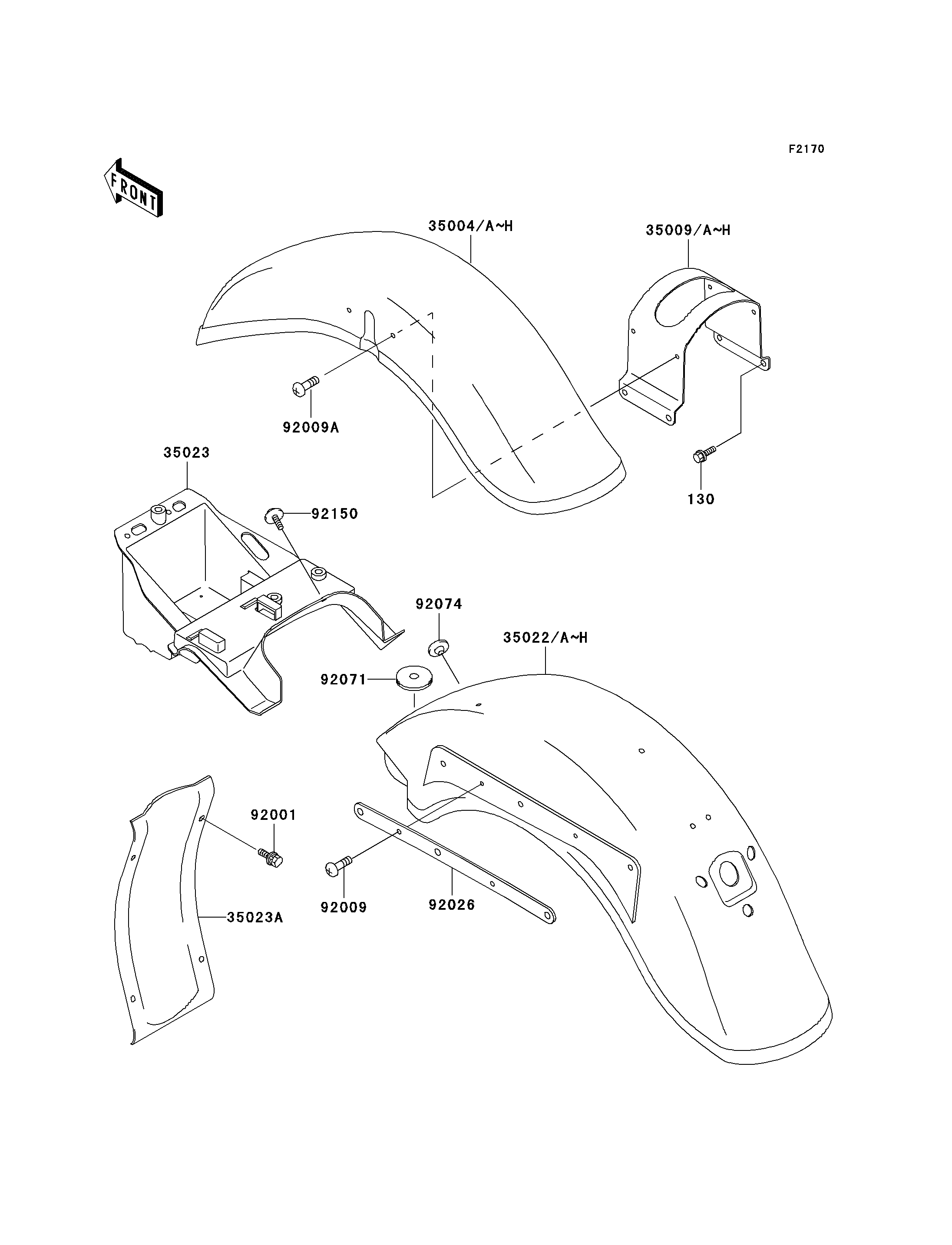

1996 Vulcan 800 Classic - Fenders(VN800-B1/B2/B3)

DOWNLOAD PDF
SELECT A NEW PART
35004A
35004A
35009A
35009A
35022A
35022A
130
130
35023
35023
35023A
35023A
92001
92001
92009
92009
92009A
92009A
92026
92026
92071
92071
92074
92074
92150
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,S.RED 35004A 35004-1335-H1 1
BRACE,FRONT FENDER,S.RED 35009A 35009-1111-H1 1
FENDER-COMP-REAR,RR,S.RED 35022A 35022-1319-H1 1
BOLT-FLANGED,8X14 130 130J0814 4
FENDER-REAR,FR 35023 35023-1407 1
FENDER-REAR 35023A 35023-1417 1
BOLT,6X20 92001 92001-1765 4
SCREW,6X10 92009 92009-1402 4
SCREW,6X12 92009A 92009-1744 4
SPACER,RR FENDER 92026 92026-1476 2
GROMMET 92071 92071-1228 2
PLUG,7X2 92074 92074-028 1
BOLT,6X14 92150 92150-1133 2
FENDER-FRONT,EBONY 35004C 35004-1335-H8 1 CN
FENDER-FRONT,D.T.GREEN 35004F 35004-1335-1M 1 CAUS
BRACE,FRONT FENDER,EBONY 35009C 35009-1111-H8 1 CN
BRACE,FRONT FENDER,D.T.GREEN 35009F 35009-1111-1M 1 CAUS
FENDER-COMP-REAR,RR,EBONY 35022C 35022-1319-H8 1 CN
FENDER-COMP-REAR,RR,D.T.GREEN 35022F 35022-1319-1M 1 CAUS
