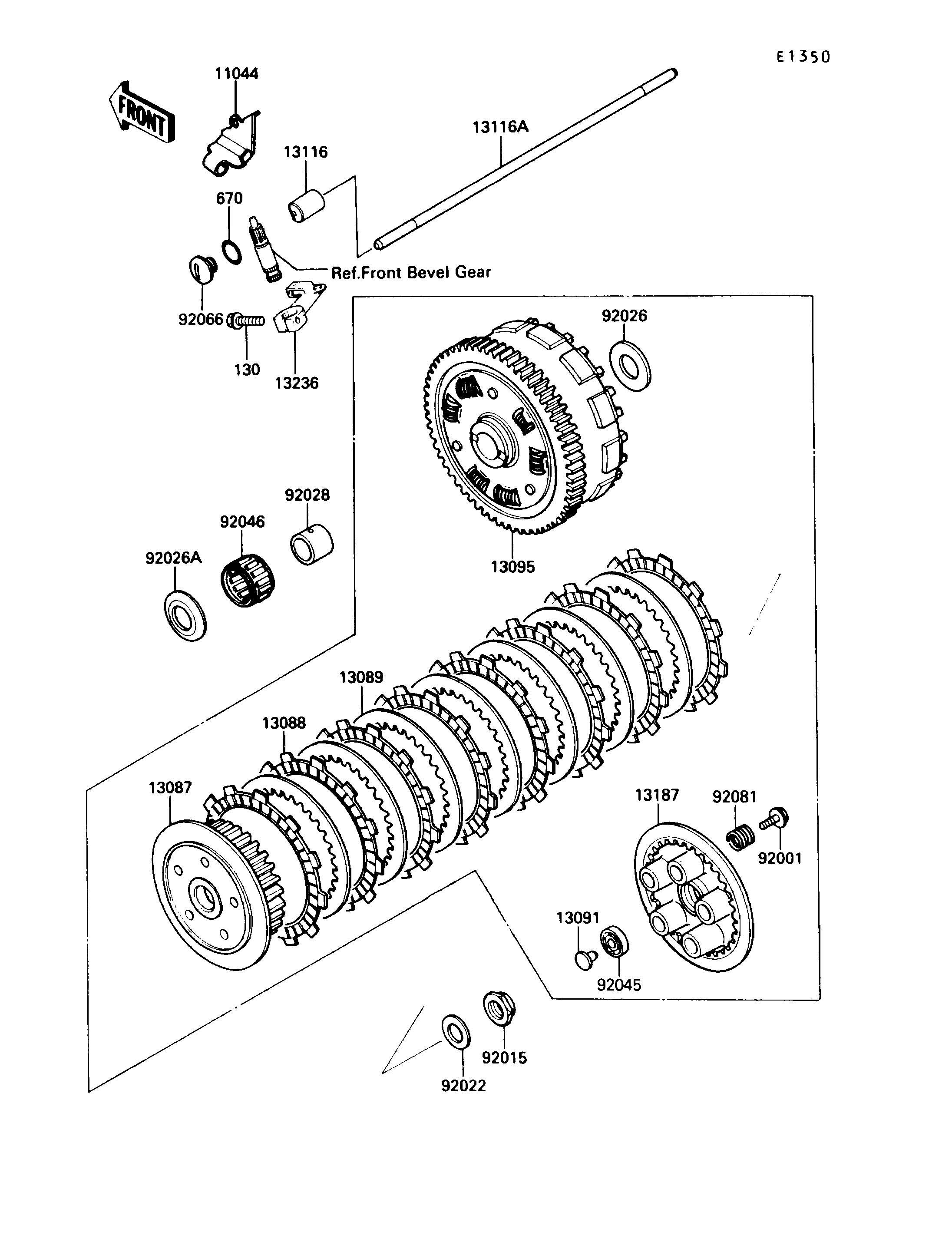

1991 Vulcan 750 - Clutch

DOWNLOAD PDF
SELECT A NEW PART
130
670
11044
13087
13088
13089
13091
13095
13116
13116A
13187
13236
92001
92015
92022
92026
92026A
92028
92045
92046
92066
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130P0620 1
O RING,15MM 670 670B2015 1
BRACKET,CLUTCH CABLE 11044 11044-1473 1
HUB-CLUTCH 13087 13087-042 1
PLATE-FRICTION 13088 13088-1087 8
PLATE-CLUTCH 13089 13089-027 7
HOLDER,CLUTCH PUSH ROD 13091 13091-1085 1
HOUSING-COMP-CLUTCH 13095 13095-1119 1
ROD-PUSH,CLUTCH,6T 13116 13116-1040 1
ROD-PUSH,L=316.5 13116A 13116-1114 1
PLATE-CLUTCH OPERATING 13187 13187-1006 1
LEVER-COMP,CLUTCH RELEASE 13236 13236-1140 1
BOLT,FLANGED,6X18 92001 92001-1066 5
NUT,20MM 92015 92015-1555 1
WASHER,20.3X36X2.3 92022 92022-1116 1
SPACER,25.5X47X2.5 92026 92026-022 1
SPACER,THRUST,T=5.5 92026A 92026-116 1
BUSHING,25X32X23.6 92028 92028-178 1
BEARING-BALL,6001C3ML01 92045 92045-1235 1
BEARING-NEEDLE,KTV323723 92046 92046-028 1
PLUG 92066 92066-1237 1
SPRING,CLUTCH 92081 92081-1033 5
