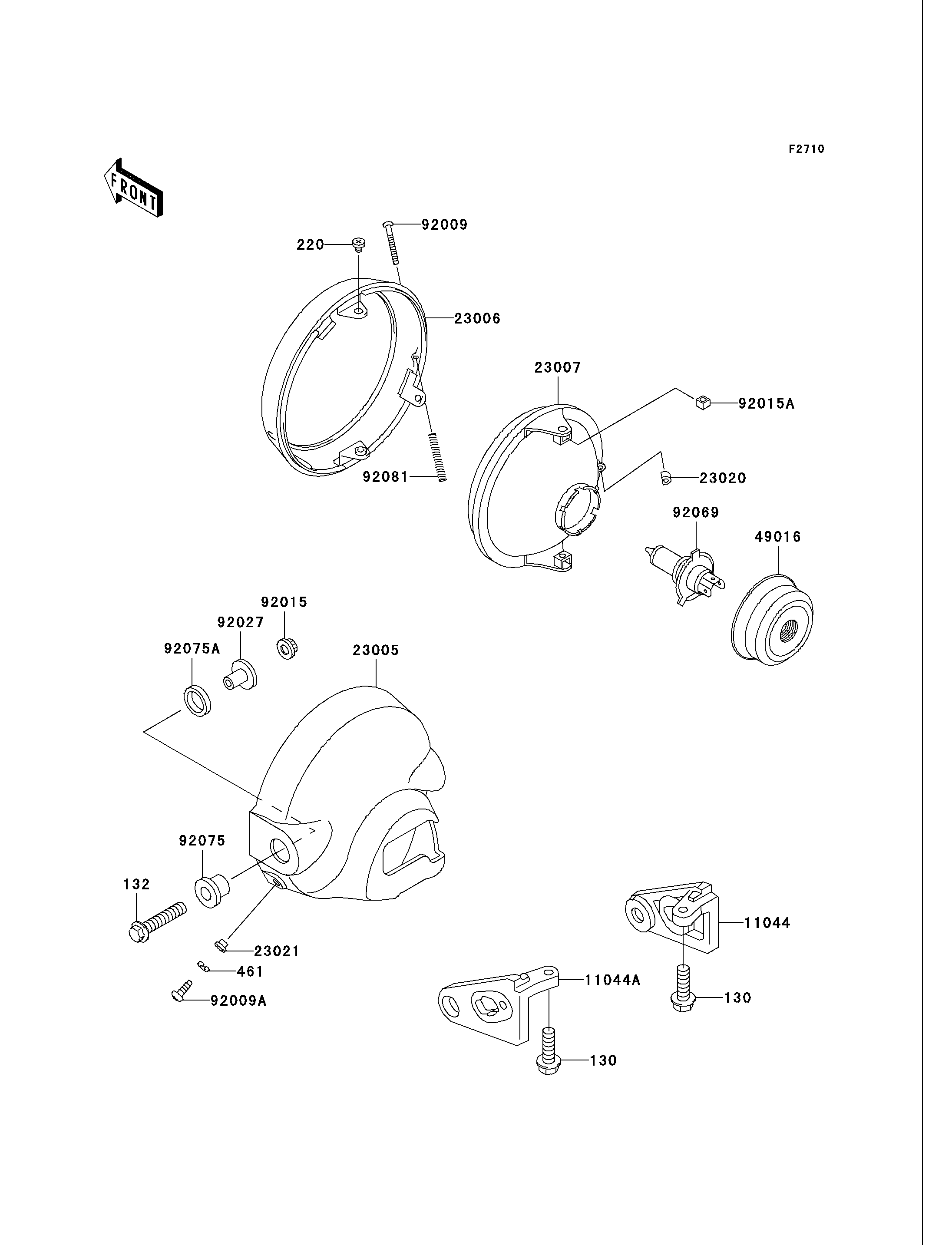

2005 Vulcan 750 - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
220
461
11044
11044A
23005
23006
23007
23020
23021
49016
92009
92009A
92015
92015A
92027
92069
92075
92075A
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130N0825 2
BOLT-FLANGED-SMALL 132 132E0840 2
SCREW-PAN-CROS 220 220D0510 2
WASHER-SPRING,5MM 461 461S0500 2
BRACKET,HEAD LAMP,RH 11044 11044-1471 1
BRACKET,HEAD LAMP,LH 11044A 11044-1472 1
BODY-COMP-HEAD LAMP,CR PLATED 23005 23005-1058 1
RIM-LAMP 23006 23006-1055 1
LENS-COMP,HEAD LAMP 23007 23007-1399 1
NUT,4MM,FOCUS ADJUST 23020 23020-018 1
WASHER 23021 23021-010 2
COVER-SEAL,HEAD LAMP 49016 49016-1046 1
SCREW,4X52 92009 92009-1033 1
SCREW,5MM 92009A 92009-1947 2
NUT,FLANGED,8MM 92015 92015-1014 2
NUT,5MM 92015A 92015-1157 2
COLLAR,L=20 92027 92027-1131 2
BULB,12V 60/55W,H4 92069 92069-1002 1
DAMPER,HEAD LAMP FITTING 92075 92075-1109 2
DAMPER,HEAD LAMP FITTING 92075A 92075-1110 2
SPRING,FOCUS ADJUSTING 92081 92081-1701 1
