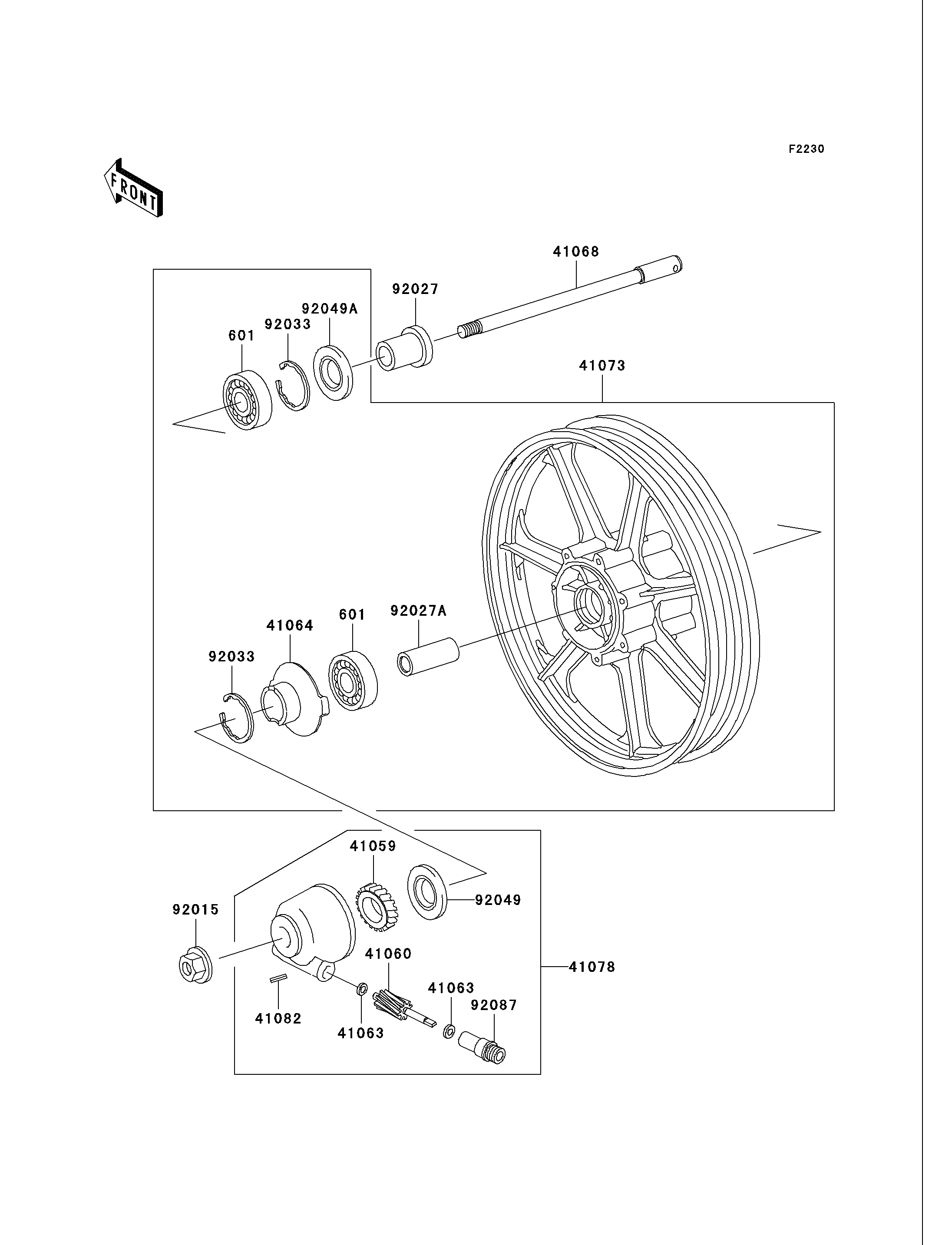

Parts Diagrams |
601
601
41059
41060
41063
41063
41064
41068
41073
41078
41082
92015
92027
92027A
92033
92033
92049
92049A
92087
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BEARING-BALL,#6302UG | 601 | 601B6302UG | 2 | ||
| GEAR-METER SCREW,26T | 41059 | 41059-026 | 1 | ||
| GEAR-METER SCREW,9T | 41060 | 41060-1016 | 1 | ||
| WASHER,5.1X9X0.4 | 41063 | 41063-001 | 2 | ||
| RECEIVER-SPEEDOMETER | 41064 | 41064-1006 | 1 | ||
| AXLE,FR | 41068 | 41068-1189 | 1 | ||
| WHEEL-ASSY,FR,SILVER NO.1 | 41073 | 41073-1591-CX | 1 | ||
| CASE-ASSY-METER GEAR,F.BLACK | 41078 | 41078-1024 | 1 | ||
| PIN,SPRING | 41082 | 41082-001 | 1 | ||
| NUT,14MM | 92015 | 92015-1407 | 1 | ||
| COLLAR,L=30 | 92027 | 92027-1225 | 1 | ||
| COLLAR,L=70 | 92027A | 92027-1866 | 1 | ||
| RING-SNAP,42MM | 92033 | 92033-1041 | 2 | ||
| SEAL-OIL,BJN30427-C3 | 92049 | 92049-1057 | 1 | ||
| SEAL-OIL,BJN22425 | 92049A | 92049-1058 | 1 | ||
| BUSHING-METER GEAR | 92087 | 92087-1002 | 1 |
| BEARING-BALL,#6302UG | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GEAR-METER SCREW,26T | |
| REF # | 41059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-METER SCREW,9T | |
| REF # | 41060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.1X9X0.4 | |
| REF # | 41063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RECEIVER-SPEEDOMETER | |
| REF # | 41064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,FR | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WHEEL-ASSY,FR,SILVER NO.1 | |
| REF # | 41073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-ASSY-METER GEAR,F.BLACK | |
| REF # | 41078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,SPRING | |
| REF # | 41082 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,14MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=30 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=70 | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,42MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,BJN30427-C3 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,BJN22425 | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING-METER GEAR | |
| REF # | 92087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
