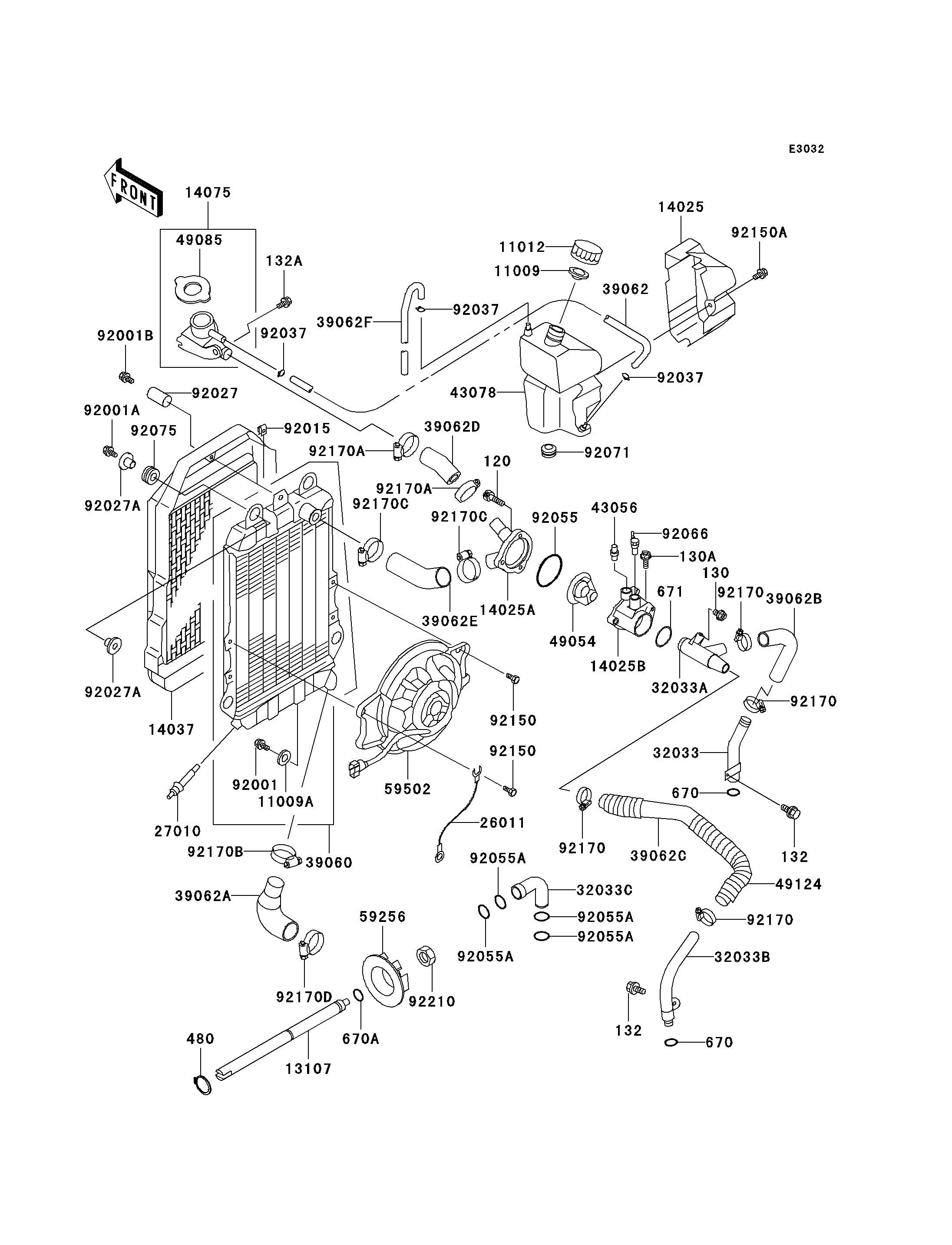

2005 Vulcan 750 - Radiator

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009A
11009A
11012
11012
13107
13107
14025
14025
14025A
14025A
14025B
14025B
14037
14037
14075
14075
26011
26011
27010
27010
32033
32033
32033A
32033A
32033B
32033B
32033C
32033C
39060
39060
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
39062F
39062F
43056
43056
43078
43078
49054
49054
49085
49085
49124
49124
59256
59256
59502
59502
92001
92001
92001A
92001A
92001B
92001B
92015
92015
92027
92027
92027A
92027A
92027A
92027A
92037
92037
92037
92037
92037
92037
92055
92055
92055A
92055A
92055A
92055A
92055A
92055A
92055A
92055A
92066
92066
120
120
130
130
130A
130A
132
132
132
132
132A
132A
480
480
670
670
670
670
670A
670A
671
671
92071
92071
92075
92075
92150
92150
92150
92150
92150A
92150A
92170
92170
92170
92170
92170
92170
92170
92170
92170A
92170A
92170A
92170A
92170B
92170B
92170C
92170C
92170C
92170C
92170D
92170D
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
GASKET,DRAIN BOLT 11009A 11009-1152 1
CAP 11012 11012-1084 1
SHAFT,IMPELLER 13107 13107-1155 1
COVER,RESORVOIR 14025 14025-1962 1
COVER,THERMOSTAT,UPP 14025A 14025-1972 1
COVER,THERMOSTAT,LWR 14025B 14025-1973 1
SCREEN,RADIATOR 14037 14037-1066 1
CAP-ASSY,RADIATOR 14075 14075-1057 1
WIRE-LEAD 26011 26011-1326 1
SWITCH,FAN 27010 27010-1167 1
PIPE 32033 32033-1484 1
PIPE 32033A 32033-1486 1
PIPE 32033B 32033-1738 1
PIPE 32033C 32033-1966 1
RADIATOR 39060 39060-1065 1
HOSE-COOLING,5.5X10.5X950 39062 39062-1069 1
HOSE-COOLING 39062A 39062-1100 1
HOSE-COOLING 39062B 39062-1101 1
HOSE-COOLING 39062C 39062-1102 1
HOSE-COOLING 39062D 39062-1103 1
HOSE-COOLING 39062E 39062-1104 1
HOSE-COOLING 39062F 39062-1122 1
BREATHER 43056 43056-003 1
RESERVOIR 43078 43078-1057 1
THERMOSTAT 49054 49054-1051 1
CAP-ASSY-PRESSURE 49085 49085-1066 1
SPRING-TUBE GUARD 49124 49124-1051 1
IMPELLER 59256 59256-1058 1
FAN-ASSY 59502 59502-1059 1
BOLT,RADIATOR DRAIN 92001 92001-1277 1
BOLT,FLANGED,6X22 92001A 92001-1352 4
BOLT,6X25 92001B 92001-1852 3
NUT 92015 92015-1487 7
COLLAR,6.8X10X11.5 92027 92027-1210 3
COLLAR 92027A 92027-1906 8
CLAMP,TUBE 92037 92037-147 3
RING-O,53.5X2.6 92055 92055-112 1
RING-O,19MM 92055A 92055-1308 4
PLUG,SENSOR WATER 92066 92066-1183 1
BOLT-SOCKET,6X20 120 120P0620 3
BOLT-FLANGED,6X10,BLACK 130 130C0610 1
BOLT-FLANGED,6X16 130A 130C0616 1
BOLT-FLANGED-SMALL 132 132J0612 2
BOLT-FLANGED-SMALL 132A 132J0614 2
CIRCLIP-TYPE-C,12MM 480 480J1200 1
O RING,14MM 670 670B2014 2
O RING,9MM 670A 670D1509 1
O RING,25MM 671 671B2525 1
GROMMET 92071 92071-1115 1
DAMPER 92075 92075-1665 4
BOLT,6X16 92150 92150-1187 4
BOLT,6X16 92150A 92150-1764 1
CLAMP,COOLING HOSE 92170 92170-1032 4
CLAMP,COOLING HOSE 92170A 92170-1033 2
CLAMP,COOLING HOSE 92170B 92170-1034 1
CLAMP,COOLING HOSE 92170C 92170-1035 2
CLAMP 92170D 92170-1036 1
NUT,LOCK,6MM 92210 92210-0006 1
