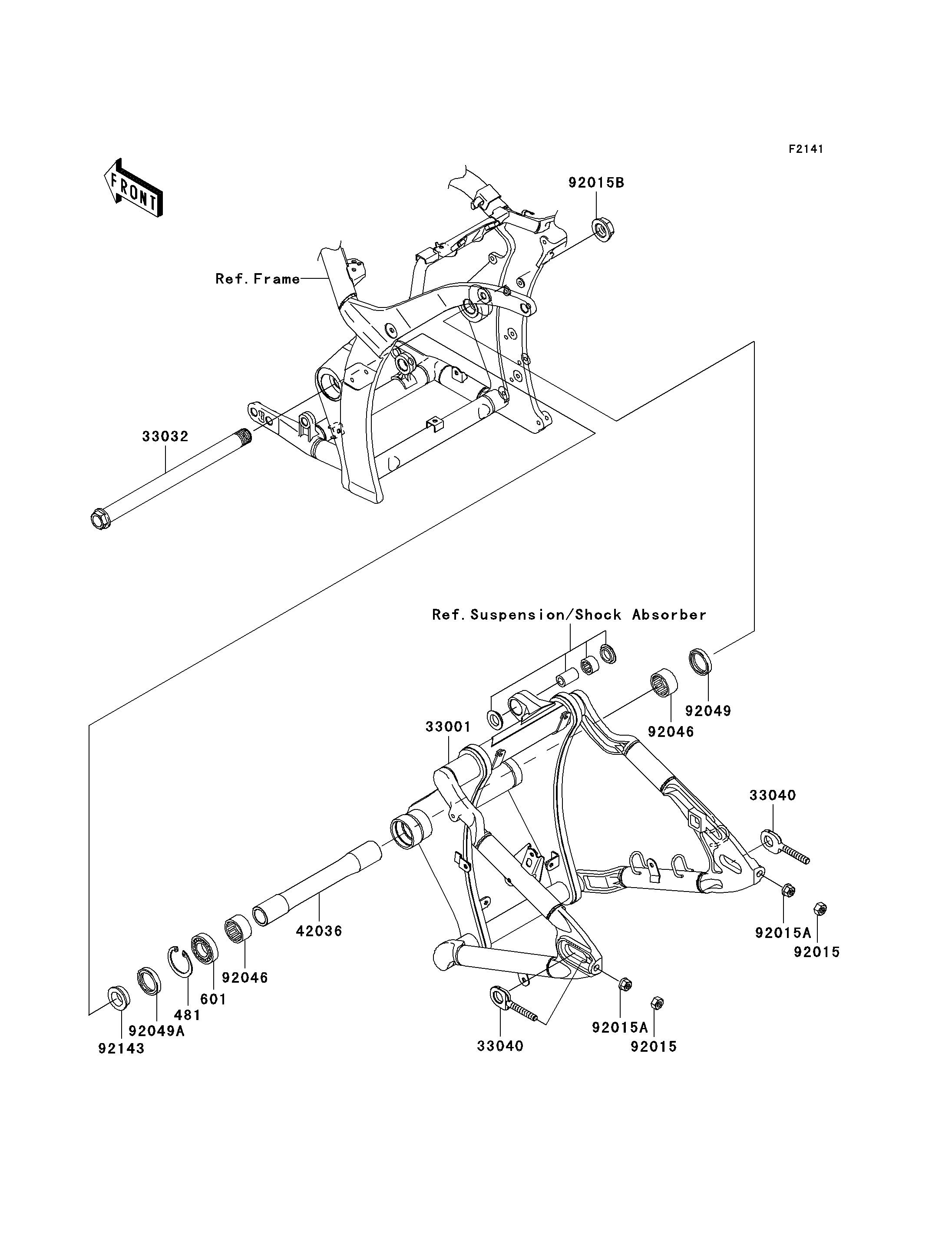

2007 Vulcan 2000 Classic LT - Swingarm
481
601
33001
33032
33040
33040
42036
92015
92015
92015A
92015A
92015B
92046
92046
92049
92049A
92143
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CIRCLIP-TYPE-C,47MM | 481 | 481J4700 | 1 | ||
| BEARING-BALL,#6005UU | 601 | 601B6005UU | 1 | ||
| ARM-COMP-SWING | 33001 | 33001-0032 | 1 | ||
| SHAFT-SWING ARM | 33032 | 33032-0004 | 1 | ||
| ADJUSTER-CHAIN | 33040 | 33040-0005 | 2 | ||
| SLEEVE,SWING ARM,L=266.5 | 42036 | 42036-0007 | 1 | ||
| NUT,LOCK,10MM | 92015 | 92015-1494 | 2 | ||
| NUT,FLANGED,10MM | 92015A | 92015-1727 | 2 | ||
| NUT,FLANGED,25MM | 92015B | 92015-1845 | 1 | ||
| BEARING-NEEDLE,BM3520 | 92046 | 92046-1205 | 2 | ||
| SEAL-OIL,KC35X45X6 | 92049 | 92049-0017 | 1 | ||
| SEAL-OIL,MHA 35X47X5 | 92049A | 92049-1381 | 1 | ||
| COLLAR,SWING ARM,L=12.5 | 92143 | 92143-1481 | 1 |
| CIRCLIP-TYPE-C,47MM | |
| REF # | 481 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6005UU | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-COMP-SWING | |
| REF # | 33001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-SWING ARM | |
| REF # | 33032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ADJUSTER-CHAIN | |
| REF # | 33040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,SWING ARM,L=266.5 | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,10MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,25MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,BM3520 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,KC35X45X6 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,MHA 35X47X5 | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,SWING ARM,L=12.5 | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
