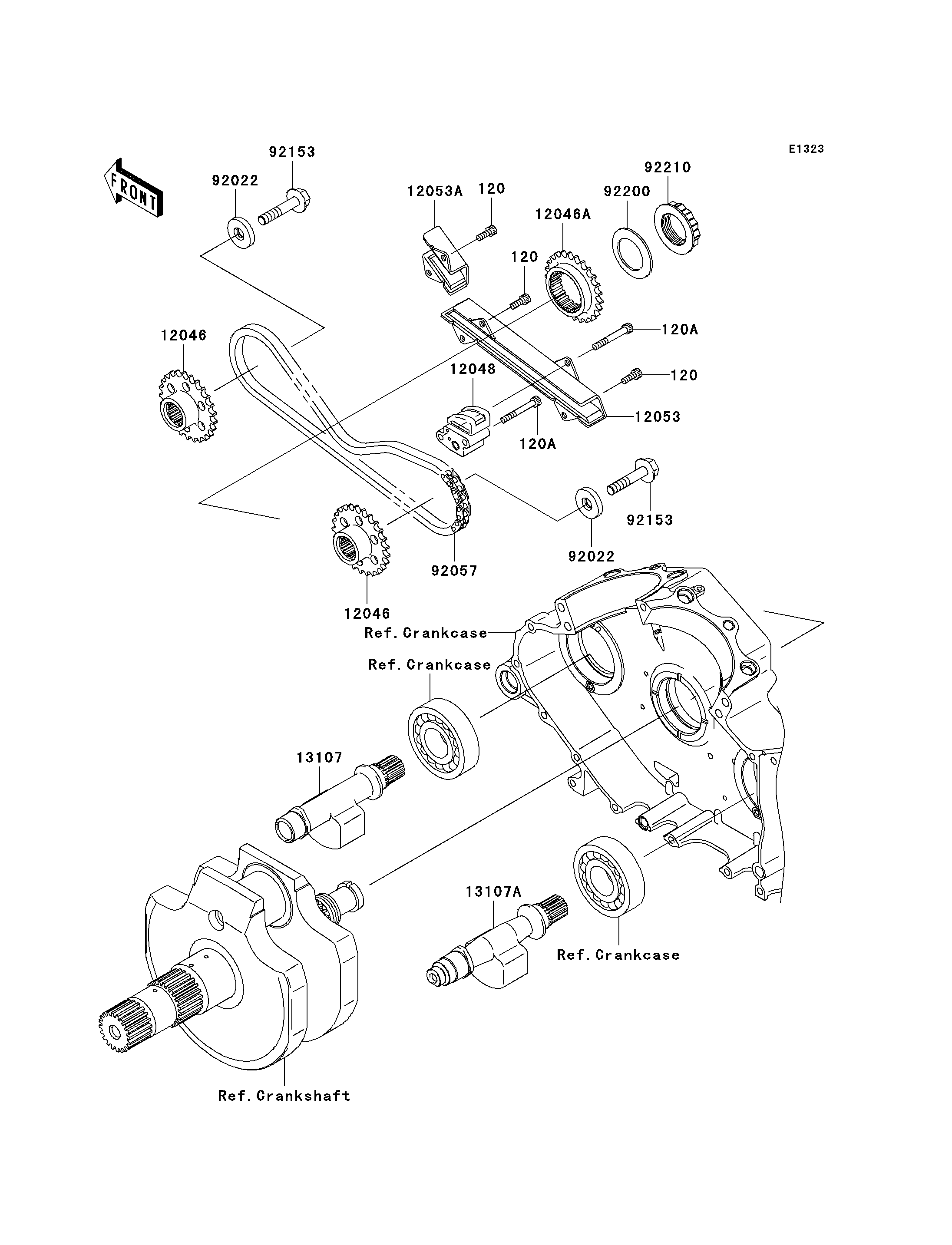

2007 Vulcan 2000 Classic LT - Balancer
120
120
120
120A
120A
12046
12046
12046A
12048
12053
12053A
13107
13107A
92022
92022
92057
92153
92153
92200
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X16 | 120 | 120P0616 | 5 | ||
| BOLT-SOCKET,6X45 | 120A | 120P0645 | 2 | ||
| SPROCKET,FR&RR | 12046 | 12046-0007 | 2 | ||
| SPROCKET | 12046A | 12046-0008 | 1 | ||
| TENSIONER-ASSY | 12048 | 12048-0005 | 1 | ||
| GUIDE-CHAIN,LONG | 12053 | 12053-0003 | 1 | ||
| GUIDE-CHAIN,SHORT | 12053A | 12053-0004 | 1 | ||
| SHAFT,FR | 13107 | 13107-0004 | 1 | ||
| SHAFT,RR | 13107A | 13107-0005 | 1 | ||
| WASHER,10X33X6 | 92022 | 92022-1906 | 2 | ||
| CHAIN,DID 06HD(F) SDH | 92057 | 92057-0028 | 1 | ||
| BOLT,10X50 | 92153 | 92153-0317 | 2 | ||
| WASHER,36.5X56X3.2 | 92200 | 92200-0014 | 1 | ||
| NUT,36MM | 92210 | 92210-0059 | 1 |
