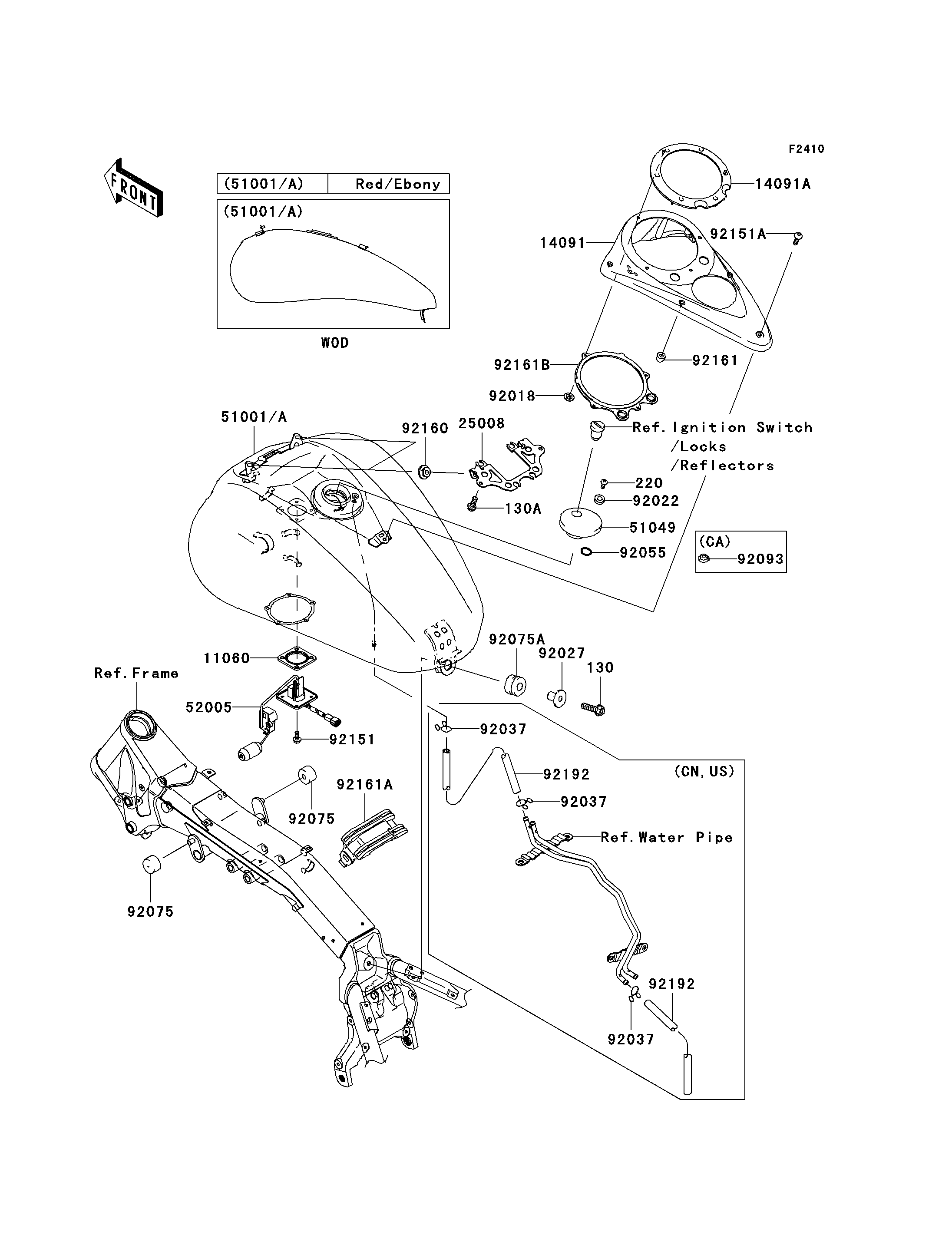

2005 Vulcan 2000 Limited - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
130
130A
220
11060
14091
14091A
25008
51049
52005
92018
92022
92027
92055
92075
92075
92075A
92151
92151A
92160
92161
92161A
92161B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X30 130 130H0830 1
BOLT-FLANGED 130A 130L0616 2
SCREW-PAN-CROS 220 220D0510 2
GASKET,FUEL GAUGE 11060 11060-1952 1
COVER,METER,LWR 14091 14091-0187 1
COVER,METER,UPP 14091A 14091-0284 1
BRACKET-METER 25008 25008-0001 1
CAP-TANK,FUEL 51049 51049-0003 1
GAUGE,FUEL 52005 52005-0002 1
NUT,PUSH,3MM 92018 92018-005 4
WASHER,5.1X10X1.0 92022 92022-1977 2
COLLAR,L=19.3 92027 92027-1780 1
RING-O,ID=9 92055 92055-1552 2
DAMPER,FUEL TANK 92075 92075-125 2
DAMPER 92075A 92075-1736 1
BOLT,5X12 92151 92151-1599 4
BOLT,SOCKET,6X12 92151A 92151-1940 1
DAMPER 92160 92160-1613 2
DAMPER,METER COVER 92161 92161-0040 4
DAMPER,FUEL TANK,CNT 92161A 92161-0042 1
DAMPER,METER 92161B 92161-0173 1
TANK-COMP-FUEL,RED/EBONY 51001 51001-0064-776 1 CA
TANK-COMP-FUEL,RED/EBONY 51001A 51001-0065-776 1 CNUS
CLAMP,TUBE 92037 92037-147 3 CNUS
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
TUBE,BLUE 92192 92192-0037 2 CNUS
