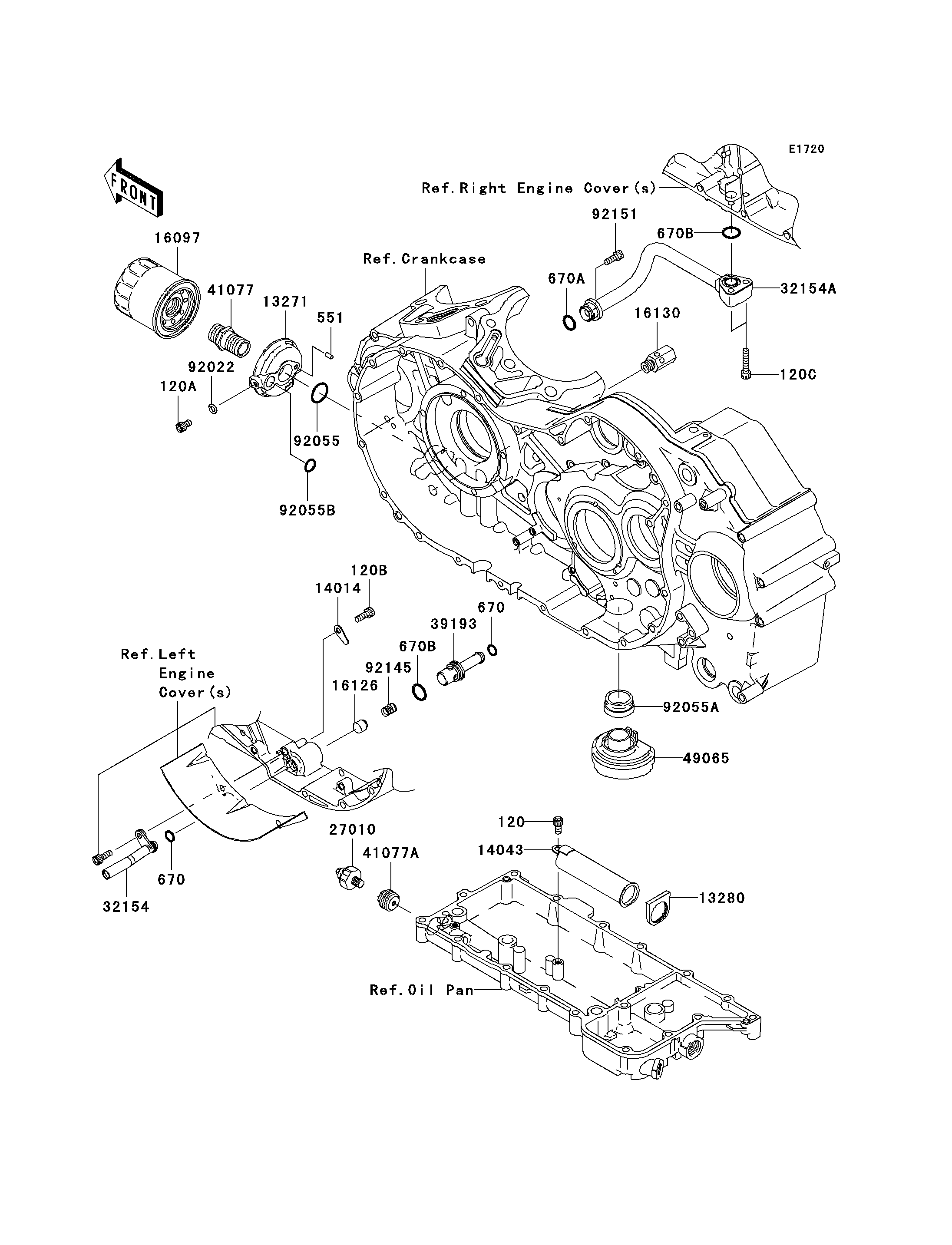

2005 Vulcan 2000 Limited - Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
120
120A
120B
120C
551
670
670
670A
670B
670B
13271
13280
14014
14043
16097
16126
16130
27010
32154
32154A
39193
41077
41077A
49065
92022
92055
92055A
92055B
92145
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X12 120 120P0612 1
BOLT-SOCKET 120A 120R0610 1
BOLT-SOCKET 120B 120T0616 1
BOLT-SOCKET 120C 120W0630 2
PIN-DOWEL 551 551R0408 1
O RING,10MM 670 670D1510 2
O RING,14MM 670A 670D2014 1
O RING,16MM 670B 670D2016 2
PLATE,FILTER BASE 13271 13271-0413 1
HOLDER 13280 13280-0008 1
PLATE-POSITION 14014 14014-0013 1
FILTER 14043 14043-0004 1
FILTER-ASSY-OIL 16097 16097-1072 1
VALVE,CHECK 16126 16126-0009 1
VALVE-ASSY-RELIEF 16130 16130-1058 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE 32154 32154-0077 1
PIPE,CRANKCASE-MISSION COVER 32154A 32154-0427 1
PIPE-OIL,CLUTCH COVER-OIL PUMP 39193 39193-0016 1
ADAPTER 41077 41077-0003 1
ADAPTER 41077A 41077-0010 1
FILTER-OIL 49065 49065-0001 1
WASHER,6.2X11X1 92022 92022-304 1
RING-O,20.8MM 92055 92055-1259 1
RING-O,OIL FILTER 92055A 92055-1503 1
RING-O,12.3X1.9 92055B 92055-1594 1
SPRING 92145 92145-0134 1
BOLT,SOCKET,6X16 92151 92151-3770 1
