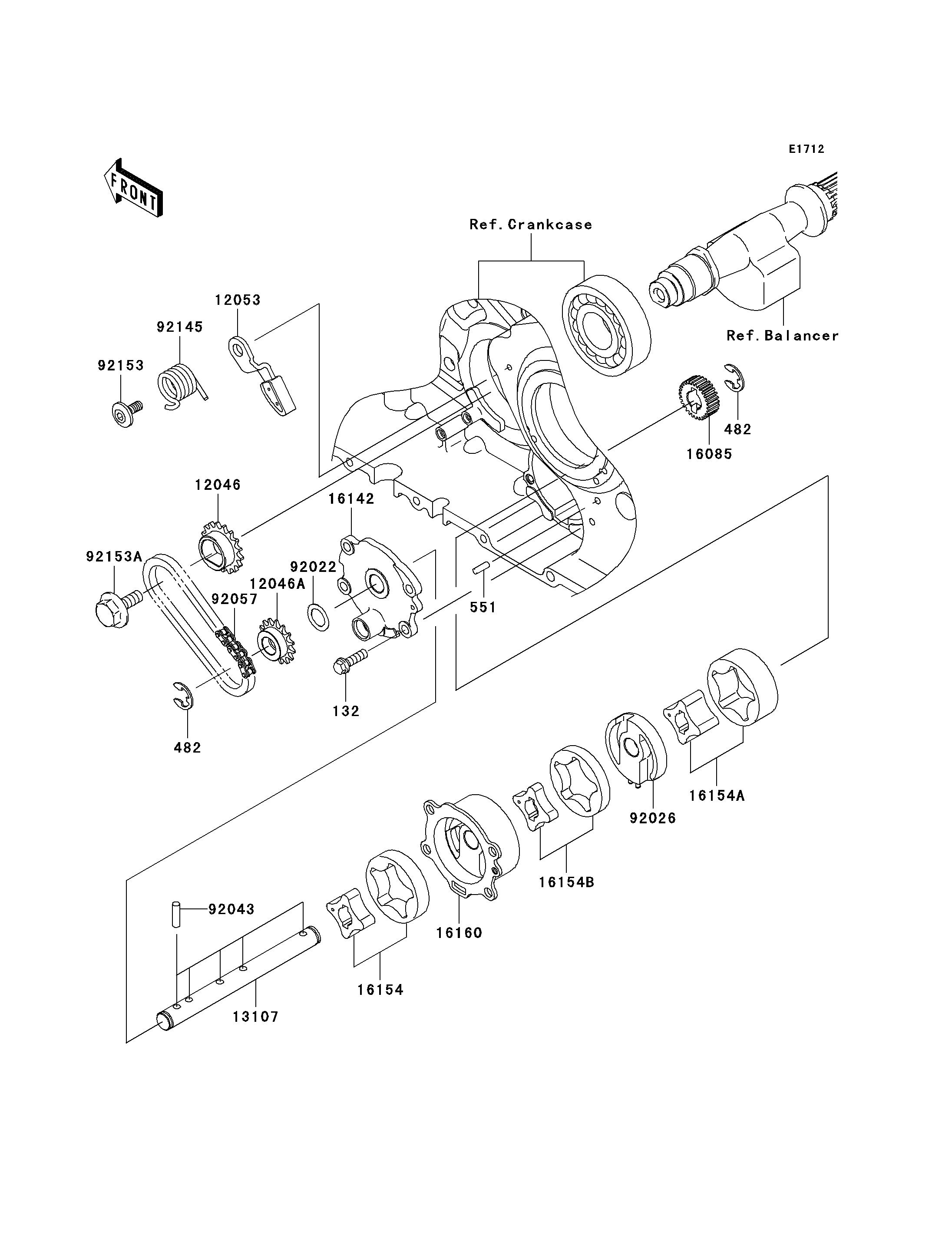

2005 Vulcan 2000 Limited - Oil Pump

DOWNLOAD PDF
SELECT A NEW PART
132
482
482
551
12046
12046A
12053
13107
16085
16142
16154
16154A
16154B
16160
92022
92026
92043
92057
92145
92153
92153A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0620 4
CIRCLIP-TYPE-E,10MM 482 482J0100 2
PIN-DOWEL 551 551A0412 1
SPROCKET,DRIVE,17T 12046 12046-0010 1
SPROCKET,15T 12046A 12046-0011 1
GUIDE-CHAIN 12053 12053-0005 1
SHAFT 13107 13107-0007 1
GEAR,OIL PUMP,27T 16085 16085-0006 1
COVER-PUMP 16142 16142-0014 1
ROTOR-PUMP,FEED 16154 16154-0001 1
ROTOR-PUMP,SCAVENGE OILPAN 16154A 16154-0004 1
ROTOR-PUMP,SCAVENGE CLUTCH 16154B 16154-0013 1
BODY,OIL PUMP 16160 16160-0002 1
WASHER,13.2X20X0.5 92022 92022-1224 1
SPACER 92026 92026-0039 1
PIN,17.9X5.0 92043 92043-1444 5
CHAIN,DID25FH 92057 92057-0029 1
SPRING 92145 92145-0036 1
BOLT,6X15.4 92153 92153-0322 1
BOLT,8X23 92153A 92153-0549 1
