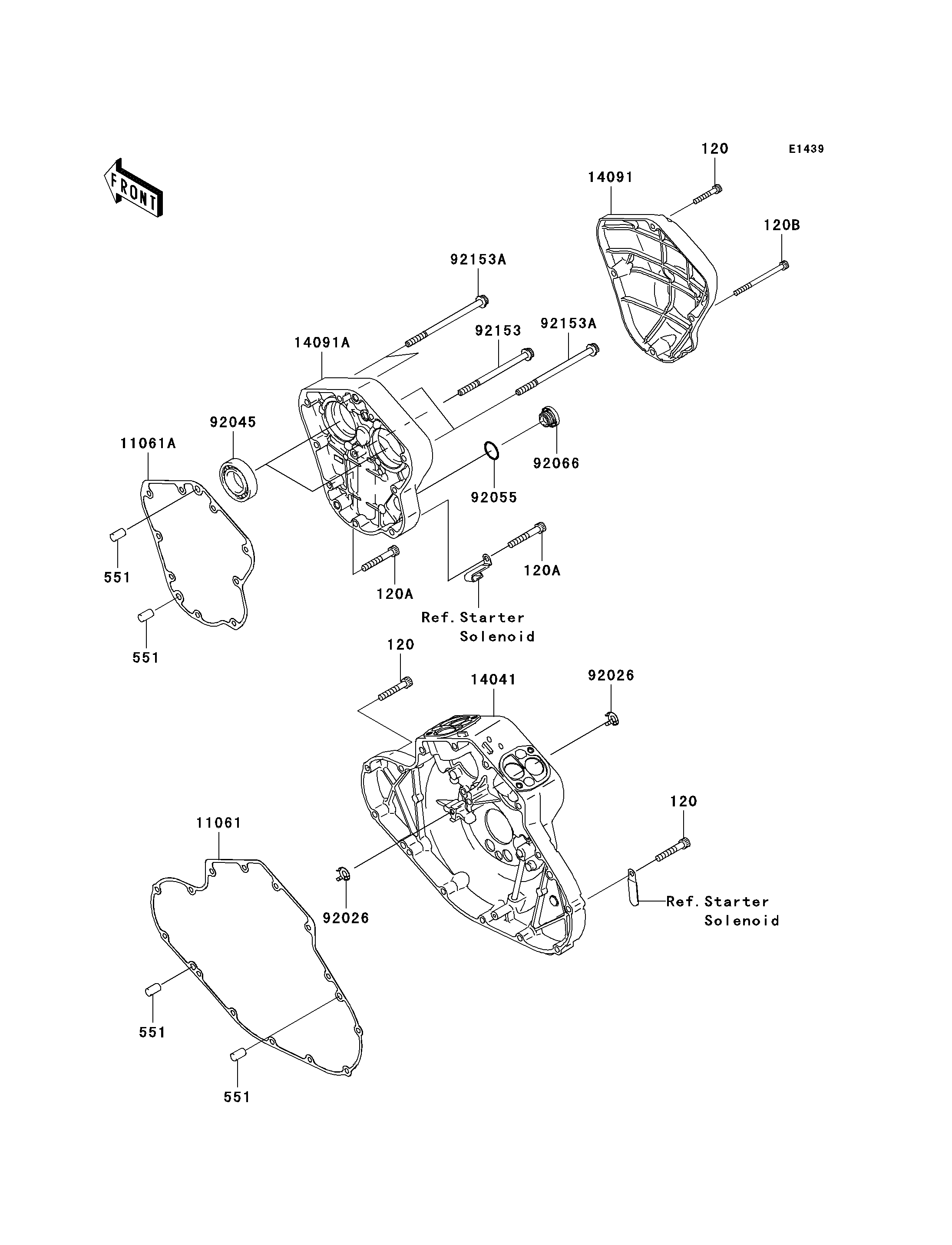

2005 Vulcan 2000 Limited - Cam Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
120
120
120
120A
120A
120B
551
551
551
551
11061
11061A
14041
14091
14091A
92026
92026
92045
92055
92066
92153
92153A
92153A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120R0635 11
BOLT-SOCKET,6X40 120A 120R0640 2
BOLT-SOCKET 120B 120R0670 3
PIN-DOWEL,8X14 551 551A0814 4
GASKET,CAM,INSIDE 11061 11061-0019 1
GASKET,CAM,MIDDLE 11061A 11061-0020 1
COVER-COMP 14041 14041-0012 1
COVER,CAM 14091 14091-0165 1
COVER,CAM,MIDDLE 14091A 14091-0433 1
SPACER 92026 92026-0010 2
BEARING-BALL,60/28 92045 92045-1176 2
RING-O 92055 92055-1146 1
PLUG 92066 92066-1456 1
BOLT,6X95 92153 92153-0320 1
BOLT,6X105 92153A 92153-0321 4
