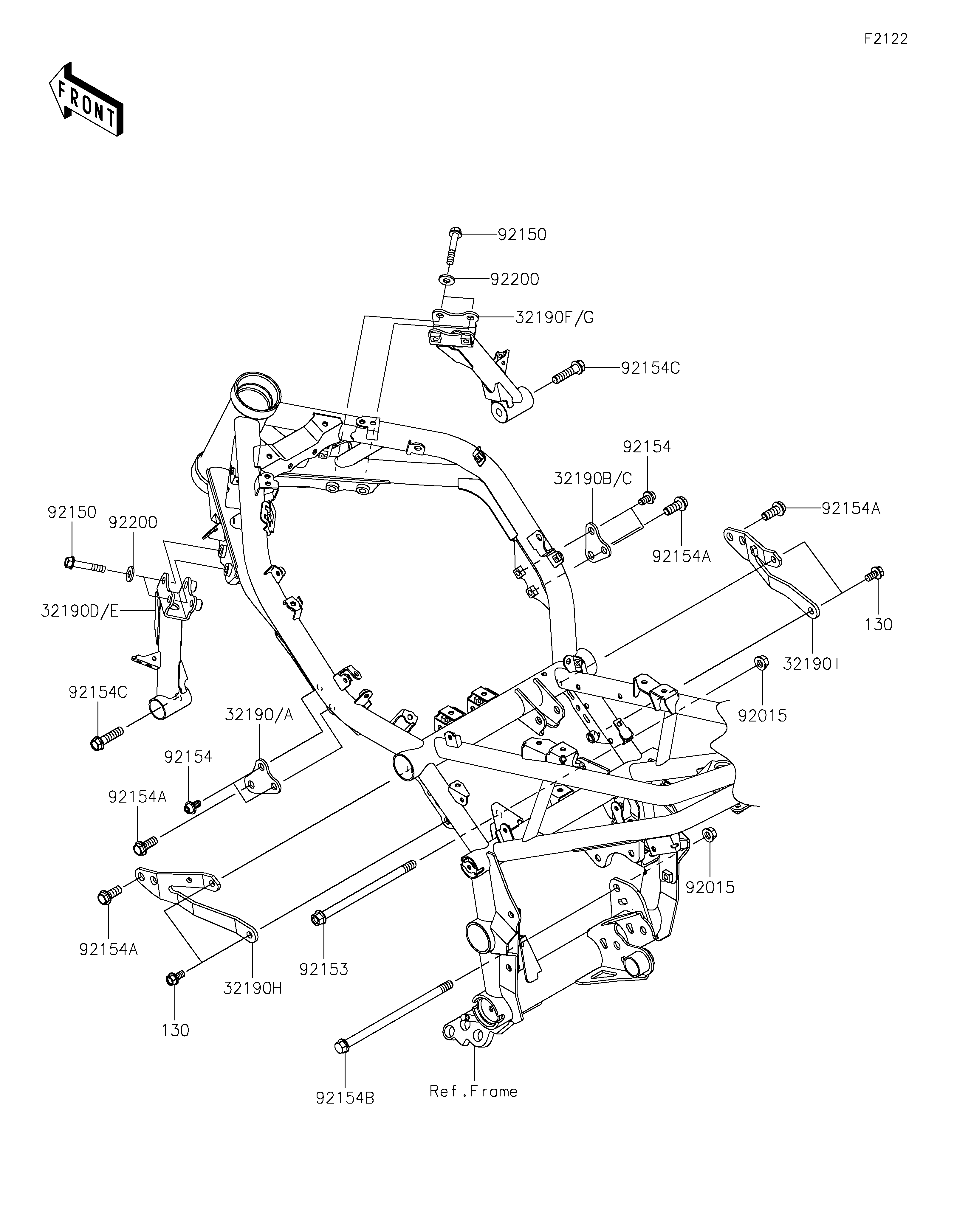

2022 Z900 ABS - Engine Mount

DOWNLOAD PDF
SELECT A NEW PART
32190A
32190C
32190E
32190G
32190H
32190I
92015
92015
92150
92150
92153
92154
92154
92154A
92154A
92154A
92154A
92154B
92154C
92154C
92200
92200
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-ENGINE,HEAD,LH,F.S.BLK 32190A 32190-0759-18R 1
BRACKET-ENGINE,HEAD,RH,F.S.BLK 32190C 32190-0760-18R 1
BRACKET-ENGINE,LH,F.S.BLACK 32190E 32190-0831-18R 1
BRACKET-ENGINE,RH,F.S.BLACK 32190G 32190-0832-18R 1
BRACKET-ENGINE,CYL.,LH 32190H 32190-0843 1
BRACKET-ENGINE,CYL.,RH 32190I 32190-0844 1
NUT,FLANGED,10MM 92015 92015-1180 2
BOLT,FLANGED,8X45 92150 92150-1487 4
BOLT,FLANGED,10X170 92153 92153-1428 1
BOLT,SOCKET,8X14 92154 92154-2745 4
BOLT,FLANGED,10X25 92154A 92154-2747 4
BOLT,FLANGED,10X195 92154B 92154-4070 1
BOLT,FLANGED,10X40 92154C 92154-4122 2
WASHER,8.5X18X2.3 92200 92200-1213 4
BOLT-FLANGED,8X16 130 130CA0816 4
