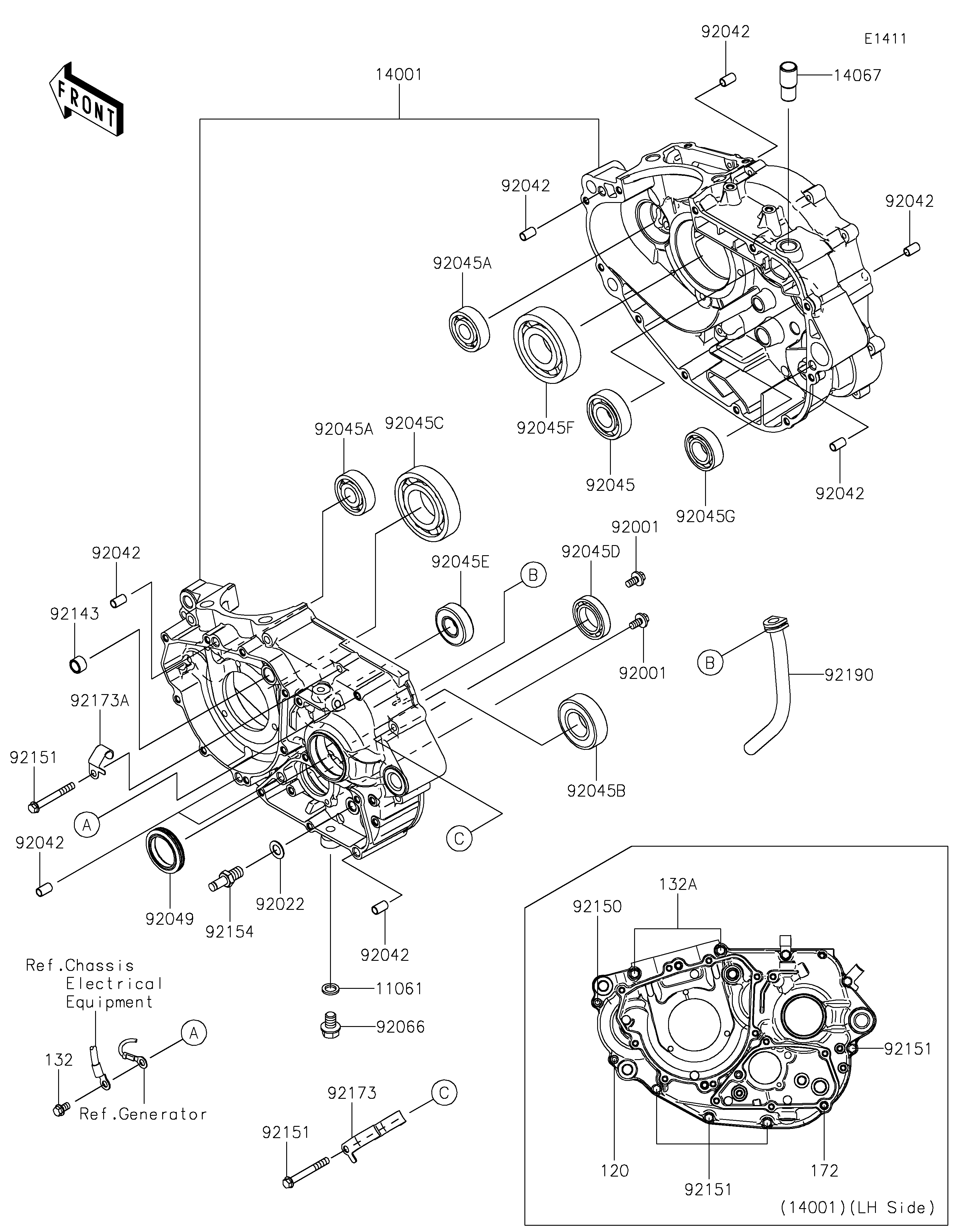

2023 KLX®300 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
11061
14001
14067
92001
92001
92022
92042
92042
92042
92042
92042
92042
92042
92045
92045A
92045A
92045B
92045C
92045D
92045E
92045F
92045G
92049
92066
92143
92150
92151
92151
92151
92151
92154
92173
92173A
92190
120
132
132A
172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10.5X16X2 11061 11061-0222 1
SET-CRANKCASE 14001 14001-0728 1
FITTING,BREATHER 14067 14067-006 1
BOLT,W/WASHER,6X14 92001 92001-1829 2
WASHER,10.2X18X1.0,SK5 92022 92022-1415 1
PIN,DOWEL,6.3X8X14 92042 92042-007 8
BEARING-BALL,20X47X14 92045 92045-0752 1
BEARING-BALL,15X42X13 92045A 92045-0753 2
BEARING-BALL,25X52X15 92045B 92045-0756 1
BEARING-BALL,35X72X17 92045C 92045-0757 1
BEARING-BALL,25X42X9 92045D 92045-0761 1
BEARING-BALL,17X40X12 92045E 92045-0938 1
BEARING-BALL,30X72X19 92045F 92045-0941 1
BEARING-BALL,DG204012 92045G 92045-1414 1
SEAL-OIL,32X45X7.5 92049 92049-0825 1
PLUG,DRAIN 92066 92066-0143 1
COLLAR 92143 92143-1263 1
BOLT,SOCKET,6X35 92150 92150-1875 1
BOLT,6X50 92151 92151-1234 6
BOLT,RETURN SPRING 92154 92154-1306 1
CLAMP 92173 92173-1715 1
CLAMP 92173A 92173-2289 1
TUBE 92190 92190-1493 1
BOLT-SOCKET,6X50 120 120CC0650 1
BOLT-FLANGED-SMALL 132 132BC0610 1
BOLT-FLANGED-SMALL,6X70 132A 132BC0670 2
BOLT-STUD,6X80 172 172BA0680 1
