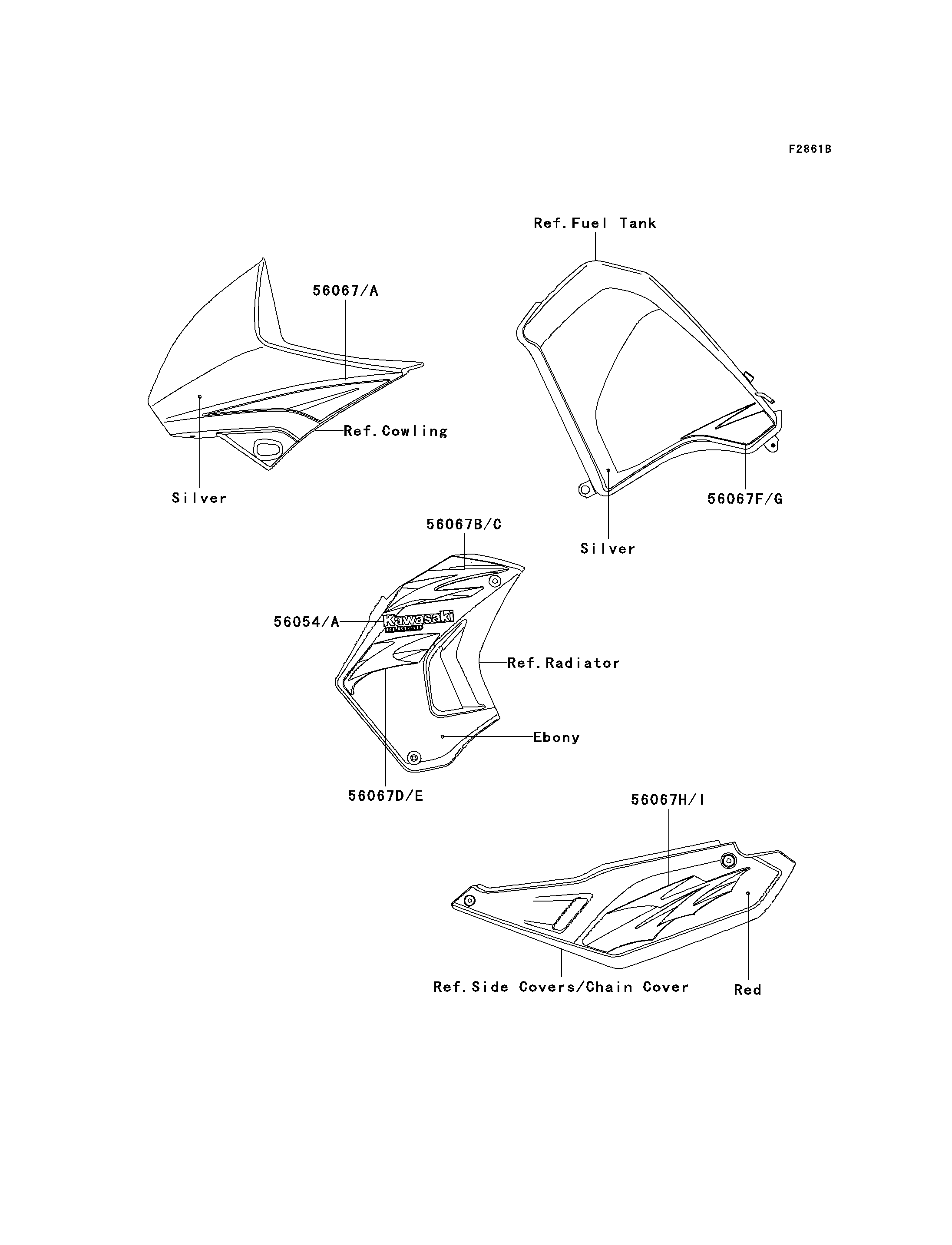

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,SHROUD,LH,KAWASAKI | 56054 | 56054-0014 | 1 | ||
| MARK,SHROUD,RH,KAWASAKI | 56054A | 56054-0024 | 1 | ||
| PATTERN,UPP COWLING,LH | 56067 | 56067-1957 | 1 | ||
| PATTERN,UPP COWLING,RH | 56067A | 56067-1958 | 1 | ||
| PATTERN,SHROUD,UPP,LH | 56067B | 56067-1959 | 1 | ||
| PATTERN,SHROUD,UPP,RH | 56067C | 56067-1960 | 1 | ||
| PATTERN,SHROUD,LWR,LH | 56067D | 56067-1961 | 1 | ||
| PATTERN,SHROUD,LWR,RH | 56067E | 56067-1962 | 1 | ||
| PATTERN,FUEL TANK,LH | 56067F | 56067-1963 | 1 | ||
| PATTERN,FUEL TANK,RH | 56067G | 56067-1964 | 1 | ||
| PATTERN,SIDE COVER,LH | 56067H | 56067-1965 | 1 | ||
| PATTERN,SIDE COVER,RH | 56067I | 56067-1966 | 1 |
