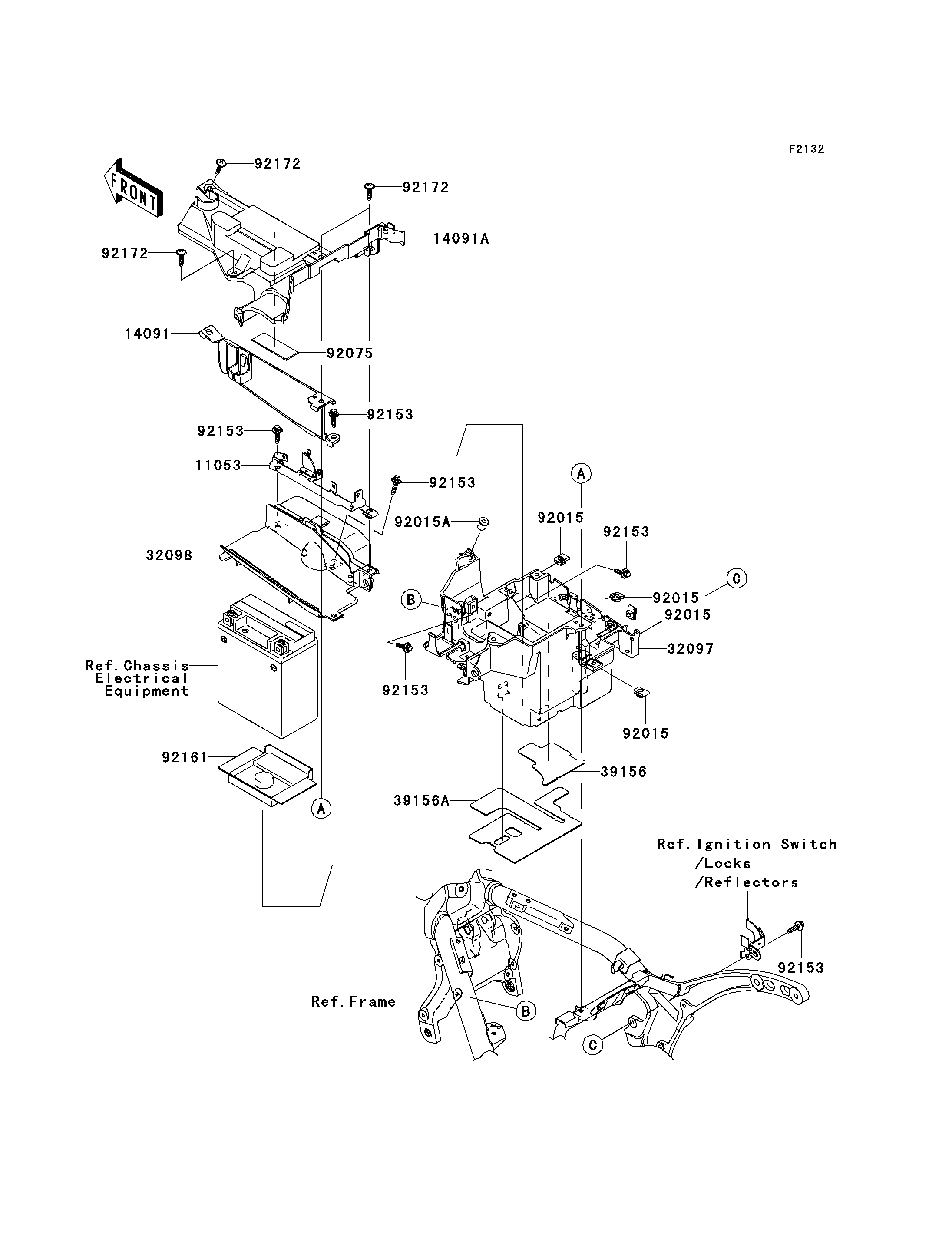

Parts Diagrams |
11053
14091
14091A
32097
32098
39156
39156A
92015
92015
92015
92015
92015A
92075
92153
92153
92153
92153
92153
92153
92161
92172
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,COUPLER | 11053 | 11053-0905 | 1 | ||
| COVER,TOOL CASE | 14091 | 14091-0172 | 1 | ||
| COVER,BATTERY | 14091A | 14091-0290 | 1 | ||
| CASE-BATTERY | 32097 | 32097-0005 | 1 | ||
| CASE-TOOL | 32098 | 32098-0007 | 1 | ||
| PAD,BATTERY CASE | 39156 | 39156-0047 | 1 | ||
| PAD,BATTERY CASE | 39156A | 39156-0055 | 1 | ||
| NUT,6MM | 92015 | 92015-1602 | 4 | ||
| NUT | 92015A | 92015-1700 | 1 | ||
| DAMPER,BATTERY BAND | 92075 | 92075-1903 | 1 | ||
| BOLT,FLANGED,6X26.5 | 92153 | 92153-0654 | 6 | ||
| DAMPER,BATTERY | 92161 | 92161-0114 | 1 | ||
| SCREW,6X26 | 92172 | 92172-0137 | 4 |
| BRACKET,COUPLER | |
| REF # | 11053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,TOOL CASE | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,BATTERY | |
| REF # | 14091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-BATTERY | |
| REF # | 32097 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-TOOL | |
| REF # | 32098 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,BATTERY CASE | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,BATTERY CASE | |
| REF # | 39156A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,BATTERY BAND | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X26.5 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| DAMPER,BATTERY | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X26 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
