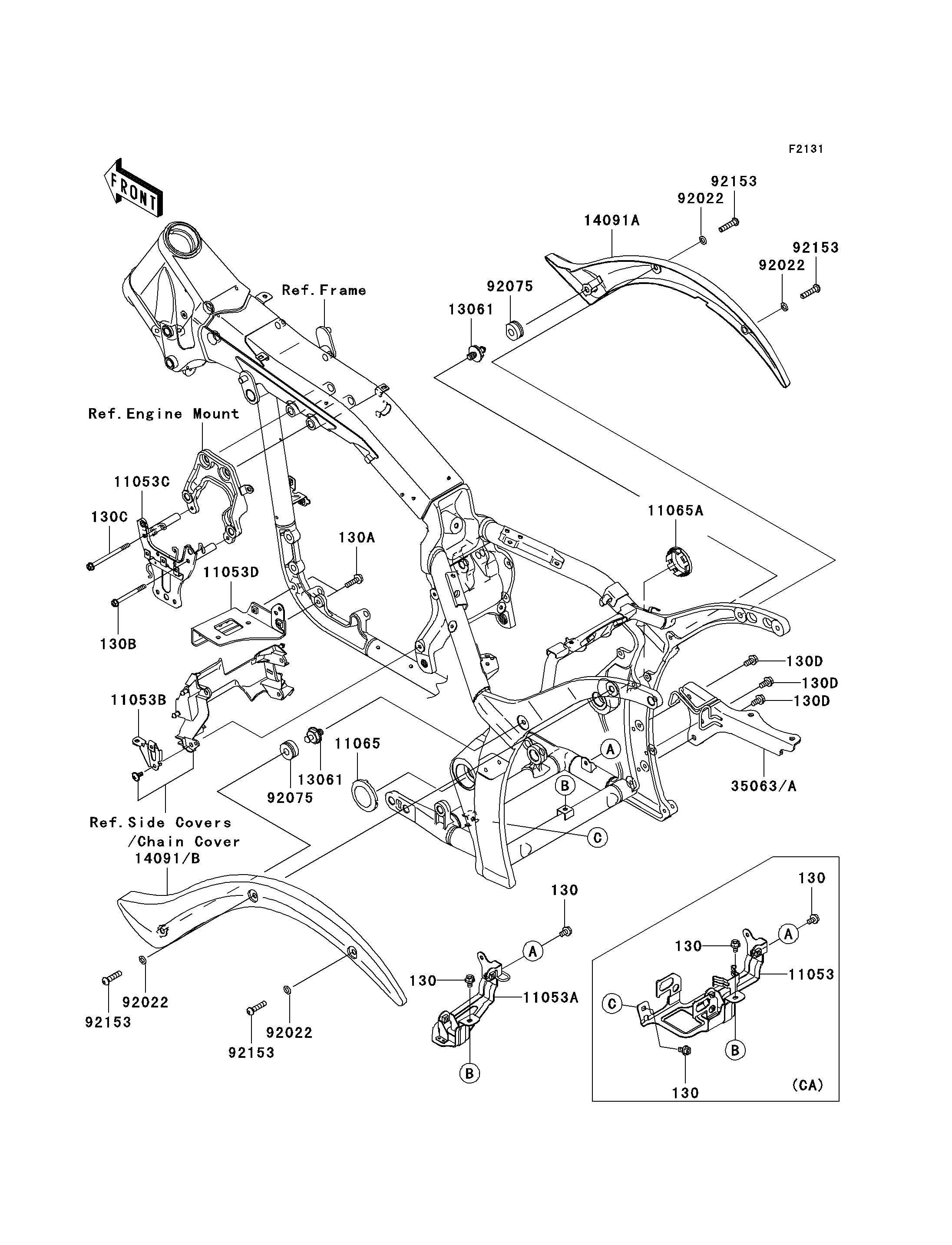

Parts Diagrams |
130A
130B
130C
130D
130D
130D
11053B
11053C
11053D
11065
11065A
13061
13061
14091A
14091B
35063A
92022
92022
92022
92022
92075
92075
92153
92153
92153
92153
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X22 | 130A | 130L0622 | 2 | ||
| BOLT-FLANGED,6X70 | 130B | 130L0670 | 1 | ||
| BOLT-FLANGED,6X90 | 130C | 130L0690 | 1 | ||
| BOLT-FLANGED,8X16 | 130D | 130L0816 | 3 | ||
| BRACKET,FUSE&SENSOR | 11053B | 11053-0494 | 1 | ||
| BRACKET,IGNITION COIL | 11053C | 11053-1254 | 1 | ||
| BRACKET,REGULATOR | 11053D | 11053-1625 | 1 | ||
| CAP,PIVOT,LH | 11065 | 11065-0052 | 1 | ||
| CAP,PIVOT,RH | 11065A | 11065-0053 | 1 | ||
| BOSS | 13061 | 13061-0060 | 2 | ||
| COVER,FENDER,RH | 14091A | 14091-0255 | 1 | ||
| COVER,FENDER,LH | 14091B | 14091-0594 | 1 | ||
| STAY,MUFFLER | 35063A | 35063-0364 | 1 | ||
| WASHER,PLAIN,8MM | 92022 | 92022-3043 | 4 | ||
| DAMPER | 92075 | 92075-1986 | 2 | ||
| BOLT,SOCKET,8X35 | 92153 | 92153-0419 | 4 | ||
| BOLT-FLANGED,6X10 | 130 | 130L0610 | 2 | CNUS | |
| BOLT-FLANGED,6X10 | 130 | 130L0610 | 3 | CA | |
| BRACKET,RESERVOIR | 11053 | 11053-0312 | 1 | CA | |
| BRACKET,RESERVOIR | 11053A | 11053-0350 | 1 | CNUS |
| BOLT-FLANGED,6X22 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X70 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X90 | |
| REF # | 130C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X16 | |
| REF # | 130D |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BRACKET,FUSE&SENSOR | |
| REF # | 11053B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,IGNITION COIL | |
| REF # | 11053C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,REGULATOR | |
| REF # | 11053D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,PIVOT,LH | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,PIVOT,RH | |
| REF # | 11065A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOSS | |
| REF # | 13061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,FENDER,RH | |
| REF # | 14091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FENDER,LH | |
| REF # | 14091B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,MUFFLER | |
| REF # | 35063A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,8MM | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X35 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CNUS |
| REMARKS | |
| BOLT-FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | CA |
| REMARKS | |
| BRACKET,RESERVOIR | |
| REF # | 11053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BRACKET,RESERVOIR | |
| REF # | 11053A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CNUS |
| REMARKS | |
