Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

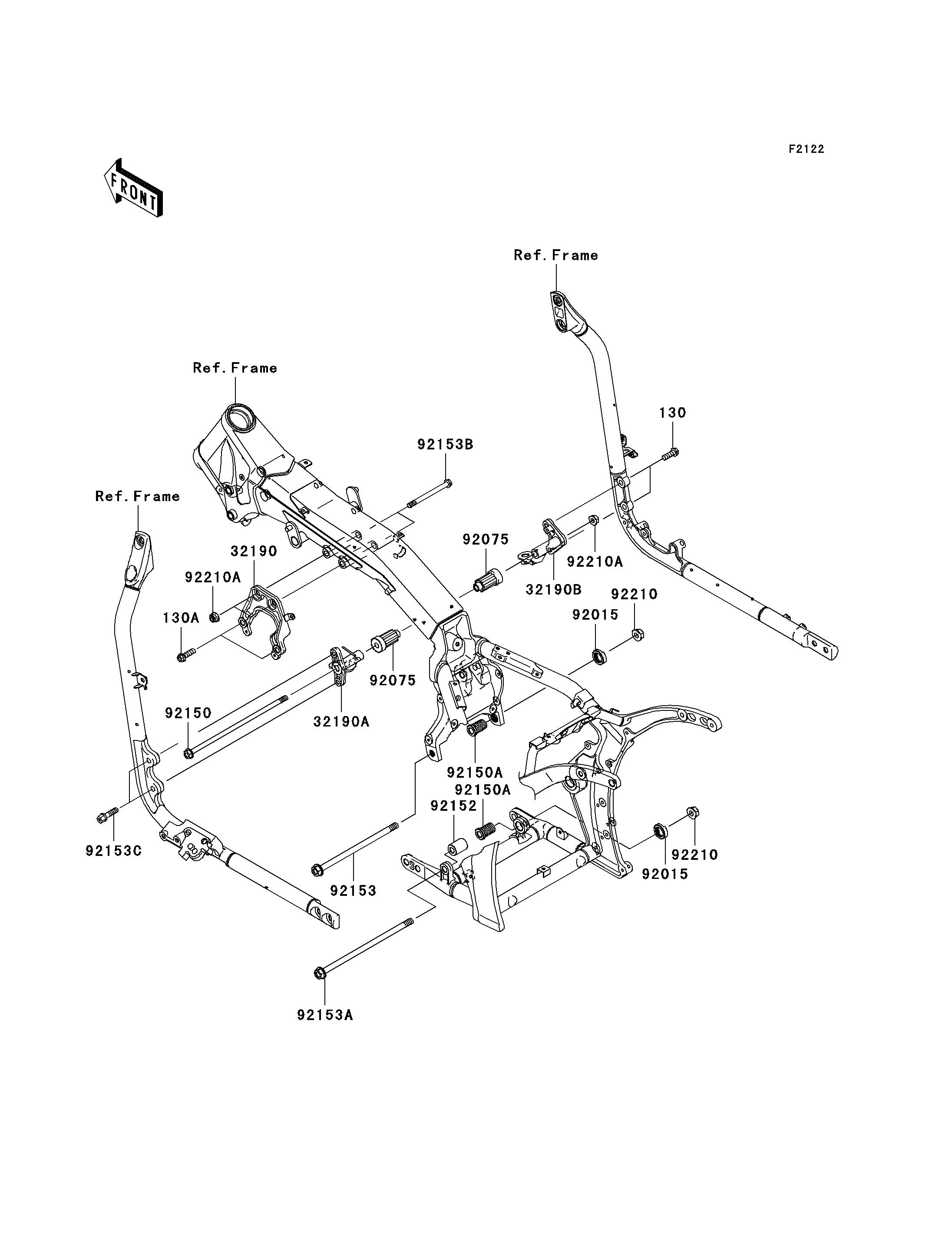

Parts Diagrams |
130
130A
32190
32190A
32190B
92015
92015
92075
92075
92150
92150A
92150A
92152
92153
92153A
92153B
92153C
92210
92210
92210A
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,10X30 | 130 | 130L1030 | 2 | ||
BOLT-FLANGED,10X35 | 130A | 130L1035 | 2 | ||
BRACKET-ENGINE,UPP | 32190 | 32190-0054 | 1 | ||
BRACKET-ENGINE,FR,LH | 32190A | 32190-0164 | 1 | ||
BRACKET-ENGINE,FR,RH | 32190B | 32190-0175 | 1 | ||
NUT,ENGINE MOUNT,22MM | 92015 | 92015-1846 | 2 | ||
DAMPER,ENGINE MOUNT,MAIN | 92075 | 92075-1739 | 2 | ||
BOLT,FLANGED,10X295 | 92150 | 92150-1223 | 1 | ||
BOLT,ENGINE MOUNT,22X38 | 92150A | 92150-1471 | 2 | ||
COLLAR,12.5X26X35.5 | 92152 | 92152-0056 | 1 | ||
BOLT,FLANGED,12X237 | 92153 | 92153-0390 | 1 | ||
BOLT,FLANGED,12X275 | 92153A | 92153-0391 | 1 | ||
BOLT,FLANGED,10X117 | 92153B | 92153-0664 | 2 | ||
BOLT,10X40 | 92153C | 92153-0891 | 2 | ||
NUT,LOCK,FLANGED,12MM | 92210 | 92210-0110 | 2 | ||
NUT,LOCK,FLANGED,10MM | 92210A | 92210-1081 | 3 |
