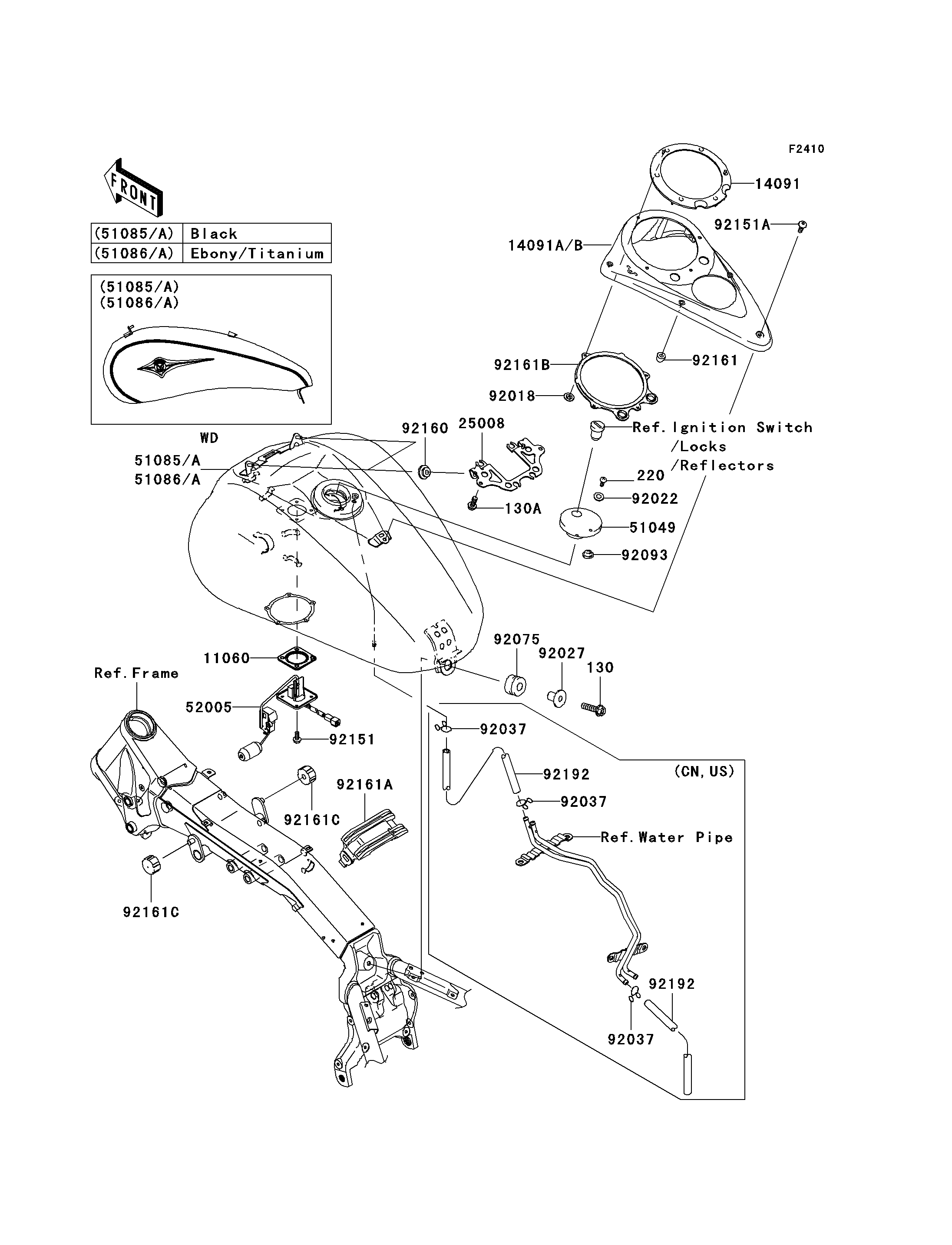

2009 Vulcan® 2000 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
130
130A
220
11060
14091
14091B
25008
51049
52005
92018
92022
92027
92075
92093
92151
92151A
92160
92161
92161A
92161B
92161C
92161C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X30 130 130BA0830 1
BOLT-FLANGED,6X14 130A 130BB0614 2
SCREW-PAN-CROSS,5X10 220 220AA0510 2
GASKET,FUEL GAUGE 11060 11060-1952 1
COVER,METER,UPP 14091 14091-0284 1
COVER,METER,LWR,M.TITANIUM 14091B 14091-0917-740 1
BRACKET-METER 25008 25008-0001 1
CAP-TANK,FUEL 51049 51049-0003 1
GAUGE,FUEL 52005 52005-0022 1
NUT,PUSH,3MM 92018 92018-005 4
WASHER,5.1X10X1.0 92022 92022-1977 2
COLLAR,L=19.3 92027 92027-1780 1
DAMPER 92075 92075-1736 1
SEAL,FUEL TANK CAP 92093 92093-1030 1
BOLT,5X12 92151 92151-1599 4
BOLT,SOCKET,6X12 92151A 92151-1940 1
DAMPER 92160 92160-1613 2
DAMPER,METER COVER 92161 92161-0040 4
DAMPER,FUEL TANK,CNT 92161A 92161-0042 1
DAMPER,METER 92161B 92161-0173 1
DAMPER,FUEL TANK 92161C 92161-0293 2
TANK-COMP-FUEL,EBONY/TITANIUM 51086 51086-5029-11W 1 CNUS
TANK-COMP-FUEL,EBONY/TITANIUM 51086A 51086-5030-11W 1 CA
CLAMP,TUBE 92037 92037-147 3 CNUS
TUBE,BLUE 92192 92192-0037 2 CNUS
