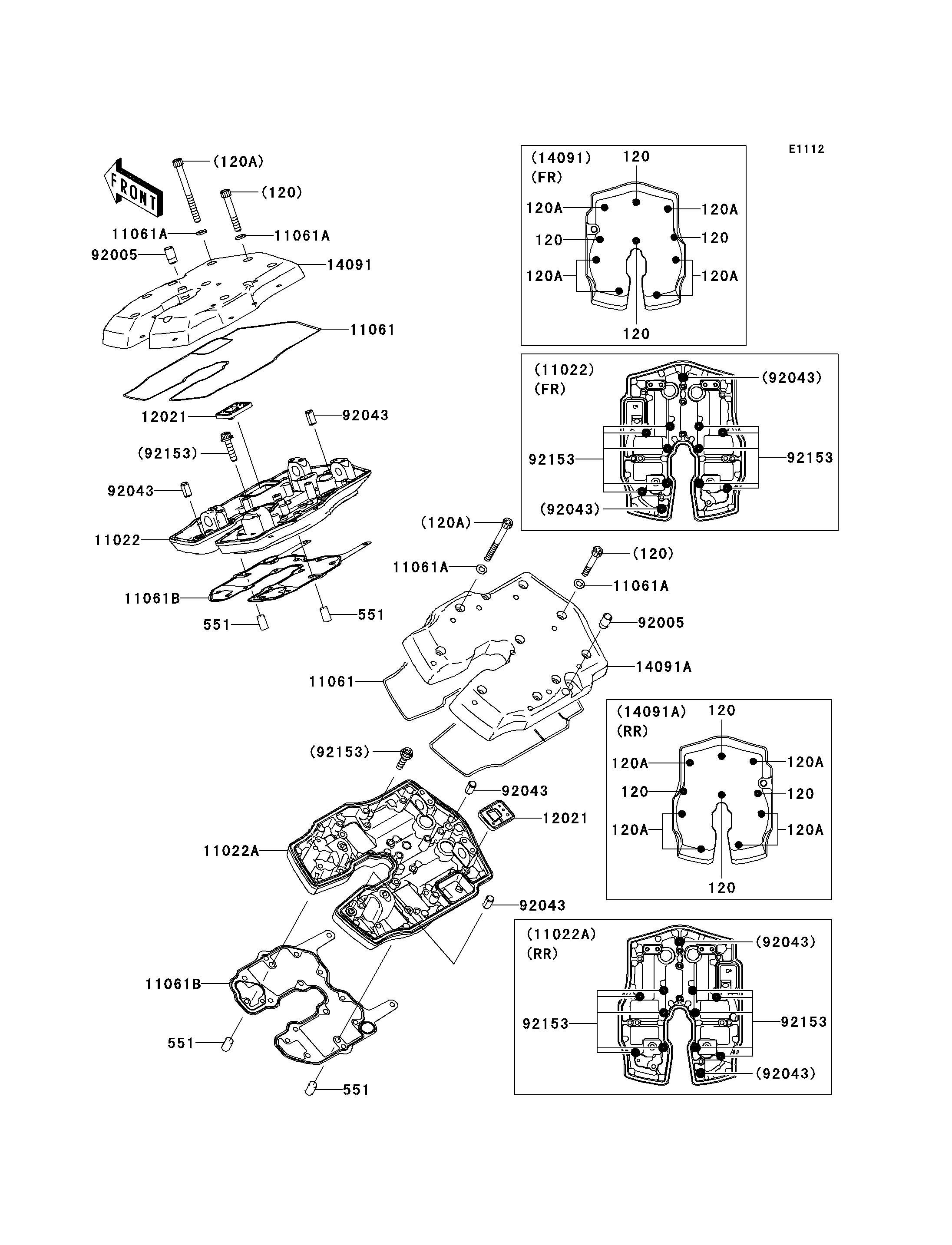

2007 Vulcan 2000 - Cylinder Head Cover
120
120
120
120
120
120
120
120
120A
120A
120A
120A
120A
120A
120A
120A
551
551
551
551
11022
11022A
11061
11061
11061A
11061A
11061A
11061A
11061B
11061B
12021
12021
14091
14091A
92005
92005
92043
92043
92043
92043
92153
92153
92153
92153
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,6X40 | 120 | 120R0640 | 8 | ||
BOLT-SOCKET,6X65 | 120A | 120R0665 | 12 | ||
PIN-DOWEL,8X14 | 551 | 551A0814 | 4 | ||
CASE-ROCKER,FR | 11022 | 11022-0005 | 1 | ||
CASE-ROCKER,RR | 11022A | 11022-0006 | 1 | ||
GASKET,ROCKER CASE COVER | 11061 | 11061-0007 | 2 | ||
GASKET | 11061A | 11061-0107 | 20 | ||
GASKET,ROCKER CASE | 11061B | 11061-0108 | 2 | ||
VALVE-ASSY-REED | 12021 | 12021-1102 | 2 | ||
COVER,HEAD,FR | 14091 | 14091-0029 | 1 | ||
COVER,HEAD,RR | 14091A | 14091-0030 | 1 | ||
FITTING | 92005 | 92005-0002 | 2 | ||
PIN,6.2X8X14 | 92043 | 92043-1263 | 4 | ||
BOLT,6X25 | 92153 | 92153-0312 | 20 |
