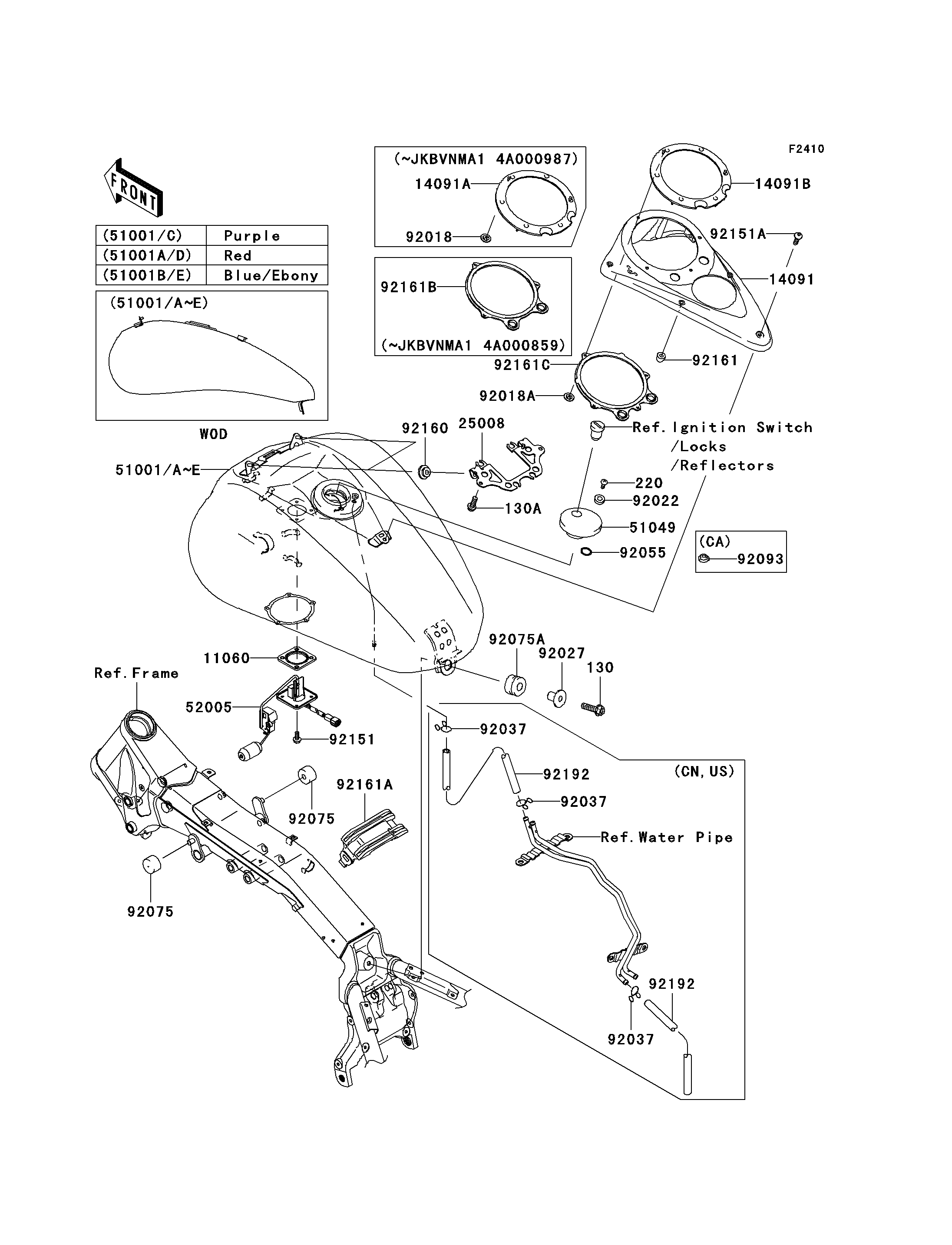

2004 Vulcan 2000 - Fuel Tank(A1)

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
14091
14091
14091A
14091A
14091B
14091B
25008
25008
51049
51049
52005
52005
92018
92018
92018A
92018A
92022
92022
92027
92027
92055
92055
92075
92075
92075
92075
92075A
92075A
92151
92151
92151A
92151A
92160
92160
92161
92161
92161A
92161A
92161B
92161B
92161C
92161C
130
130
130A
130A
220
220
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL GAUGE 11060 11060-1952 1
COVER,METER,LWR 14091 14091-0187 1
COVER,METER,UPP 14091A 14091-0278 1 ( - JKBVNMA1 4A000987)
COVER,METER,UPP 14091B 14091-0284 1 (JKBVNMA1 4A000988 - )
BRACKET-METER 25008 25008-0001 1
CAP-TANK,FUEL 51049 51049-0003 1
GAUGE,FUEL 52005 52005-0002 1
NUT,PUSH,3MM 92018 92018-005 3 ( - JKBVNMA1 4A000987)
NUT,PUSH,3MM 92018A 92018-005 4 (JKBVNMA1 4A000988 - )
WASHER,5.1X10X1.0 92022 92022-1977 2
COLLAR,L=19.3 92027 92027-1780 1
RING-O,ID=9 92055 92055-1552 2
DAMPER,FUEL TANK 92075 92075-125 2
DAMPER 92075A 92075-1736 1
BOLT,5X12 92151 92151-1599 4
BOLT,SOCKET,6X12 92151A 92151-1940 1
DAMPER 92160 92160-1613 2
DAMPER,METER COVER 92161 92161-0040 4
DAMPER,FUEL TANK,CNT 92161A 92161-0042 1
DAMPER,METER 92161B 92161-0159 1 ( - JKBVNMA1 4A000859)
DAMPER,METER 92161C 92161-0173 1 (JKBVNMA1 4A000860 - )
BOLT-FLANGED,8X30 130 130H0830 1
BOLT-FLANGED,6X16 130A 130L0616 2
SCREW-PAN-CROS,5X10 220 220D0510 2
TANK-COMP-FUEL,M.D.PURPLE 51001 51001-0040-664 1 CA
TANK-COMP-FUEL,M.M.RED 51001A 51001-0040-665 1 CA
TANK-COMP-FUEL,BLUE/EBONY 51001B 51001-0040-705 1 CA
TANK-COMP-FUEL,M.D.PURPLE 51001C 51001-0041-664 1 CNUS
TANK-COMP-FUEL,M.M.RED 51001D 51001-0041-665 1 CNUS
TANK-COMP-FUEL,BLUE/EBONY 51001E 51001-0041-705 1 CNUS
CLAMP,TUBE 92037 92037-147 3 CNUS
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
TUBE,BLUE 92192 92192-0037 2 CNUS
