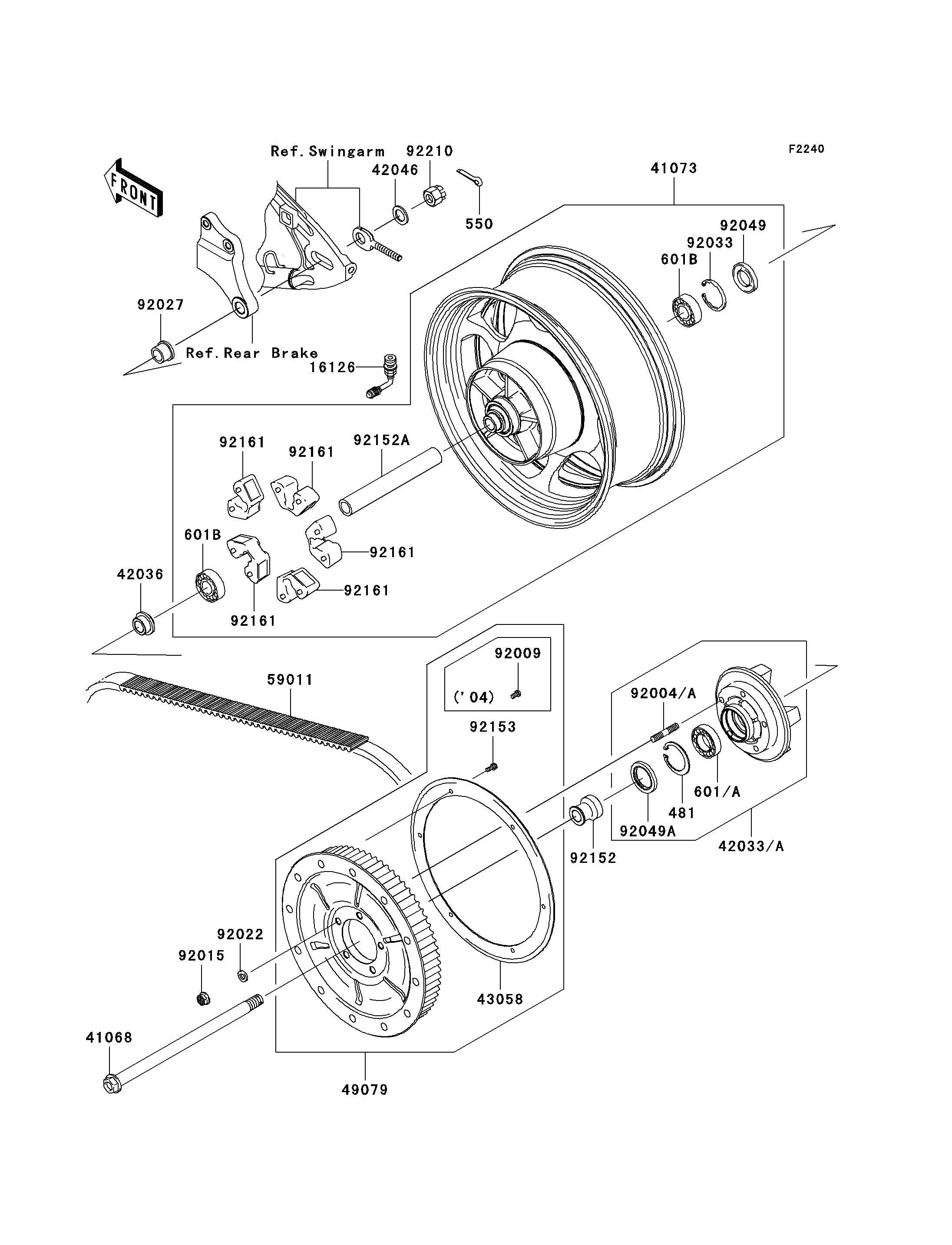

2004 Vulcan 2000 - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
481
550
601
601B
601B
16126
41068
41073
42033
42036
42046
43058
49079
59011
92004
92009
92015
92022
92027
92033
92049
92049A
92152
92152A
92161
92161
92161
92161
92161
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP 481 481J5500 1
PIN-COTTER,4.0X35 550 550D4035 1
BEARING-BALL,#6006G 601 601B6006G 1
BEARING-BALL,#6304UUC3 601B 601B6304UU 2
VALVE 16126 16126-1365 1
AXLE,RR 41068 41068-0007 1
WHEEL-ASSY,RR 41073 41073-0005 1
COUPLING-ASSY,RR HUB 42033 42033-0001 1
SLEEVE,RR HUB COUPLING,L=22 42036 42036-1366 1
WASHER,21X33X2.6 42046 42046-003 1
RING,REAR PULLEY 43058 43058-0004 1
PULLEY-BELT,P.SILVER 49079 49079-0004-458 1
BELT,DRIVE,133T 59011 59011-0004 1
STUD,10X33 92004 92004-0010 5
SCREW 92009 92009-1805 6
NUT,FLANGED,10MM 92015 92015-1335 5
WASHER,10.5X19X3.2 92022 92022-1820 5
COLLAR,RR AXLE,L=21.5 92027 92027-1902 1
RING-SNAP,52MM 92033 92033-1043 1
SEAL-OIL,28X52X5 92049 92049-1061 1
SEAL-OIL,PJN40556 92049A 92049-1263 1
COLLAR,RR AXLE,LH,L=41 92152 92152-0050 1
COLLAR,RR HUB,L=210 92152A 92152-0051 1
DAMPER,SHOCK,RR HUB 92161 92161-0043 5
NUT,CASTLE,18MM 92210 92210-1134 1
