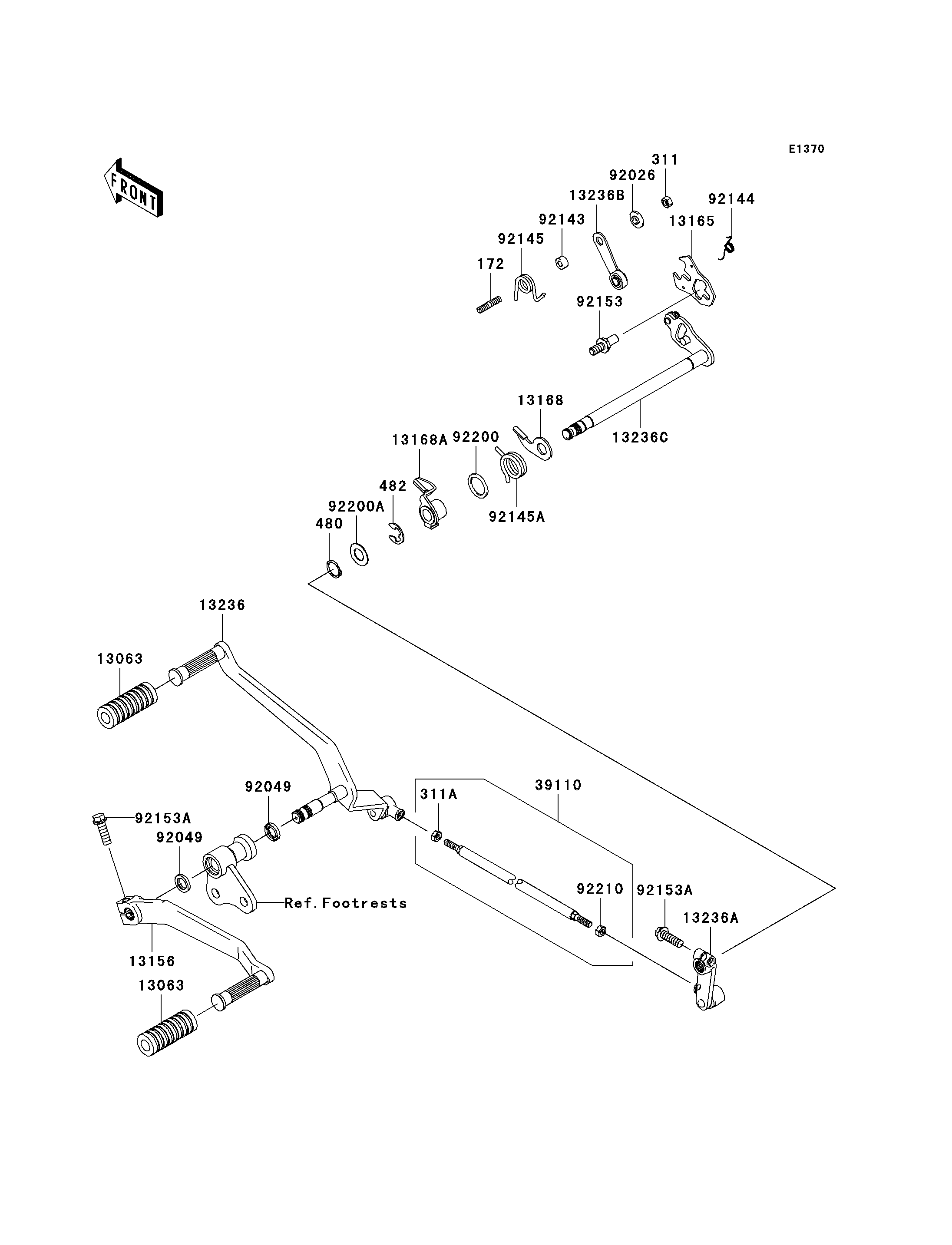

2004 Vulcan 2000 - Gear Change Mechanism(A1)

DOWNLOAD PDF
SELECT A NEW PART
172
311
311A
480
482
13063
13063
13156
13165
13168
13168A
13236
13236A
13236B
13236C
39110
92026
92049
92049
92143
92144
92145
92145A
92153
92153A
92153A
92200
92200A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-STUD,6X18 172 172H0618 1
NUT-HEX,6MM 311 311G0600 1
NUT-HEX 311A 311L0600 1
CIRCLIP-TYPE-C,12MM 480 480J1200 1
CIRCLIP-TYPE-E,12MM 482 482J0200 1
DAMPER,PEDAL 13063 13063-002 2
LEVER-CHANGE 13156 13156-0007 1
PAWL 13165 13165-0001 1
LEVER,RH 13168 13168-0009 1
LEVER,LH 13168A 13168-0010 1
LEVER-COMP 13236 13236-0016 1
LEVER-COMP 13236A 13236-0017 1
LEVER-COMP,POSITION 13236B 13236-0059 1
LEVER-COMP 13236C 13236-0060 1
ROD-ASSY-TIE 39110 39110-0012 1
SPACER 92026 92026-1217 1
SEAL-OIL,VB13193 92049 92049-1398 2
COLLAR 92143 92143-1595 1
SPRING 92144 92144-1029 1
SPRING 92145 92145-0197 1
SPRING 92145A 92145-0205 1
BOLT,RETURN SPRING 92153 92153-0421 1
BOLT,8X25 92153A 92153-1268 2
WASHER,20.5X27X1.6 92200 92200-0018 1
WASHER,13.4X25X1.0 92200A 92200-0045 1
NUT,LEFT HANDED,6MM 92210 92210-0061 1
