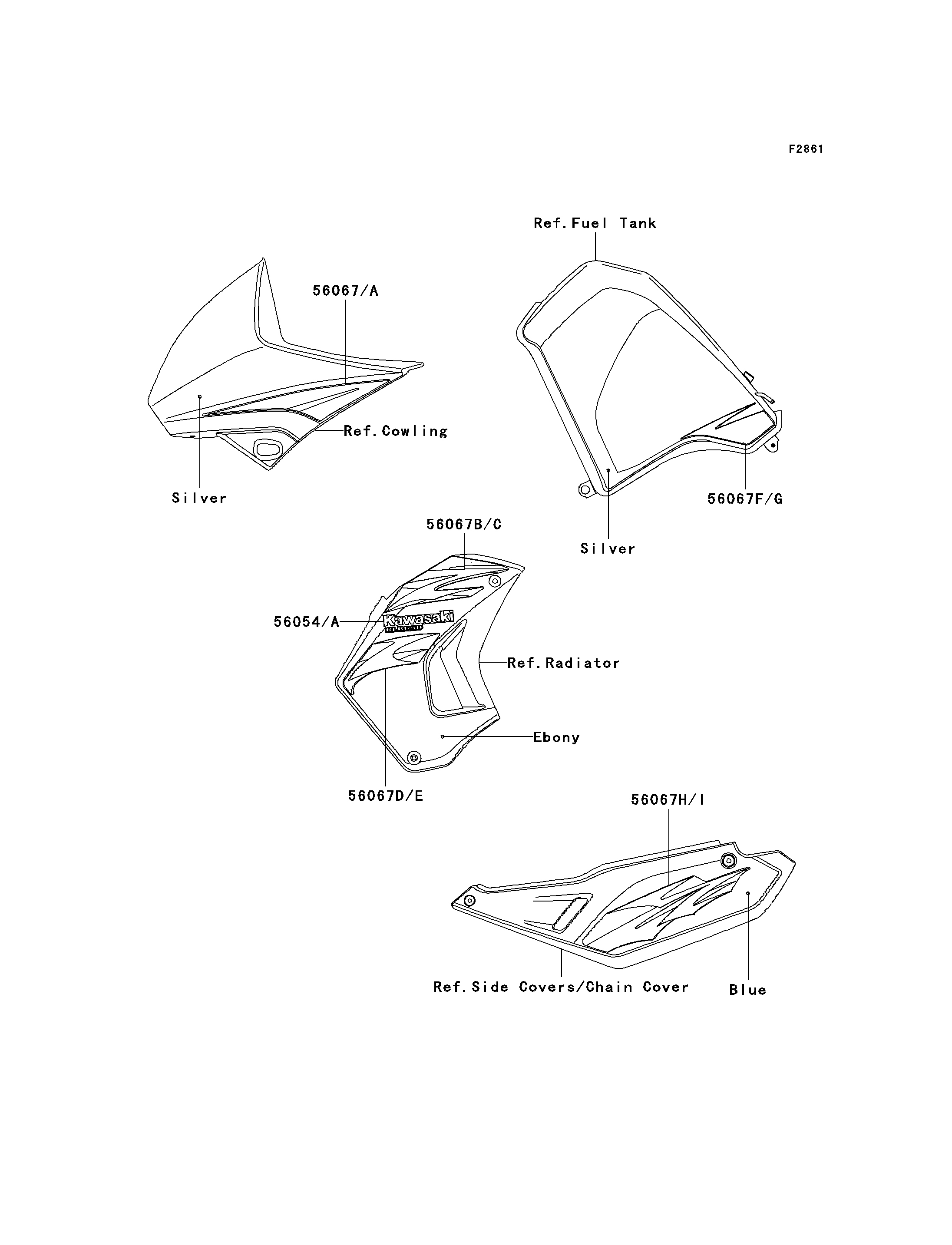

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,SHROUD,LH,KAWASAKI | 56054 | 56054-0014 | 1 | ||
| MARK,SHROUD,RH,KAWASAKI | 56054A | 56054-0024 | 1 | ||
| PATTERN,UPP COWLING,LH | 56067 | 56067-1967 | 1 | ||
| PATTERN,UPP COWLING,RH | 56067A | 56067-1968 | 1 | ||
| PATTERN,SHROUD,UPP,LH | 56067B | 56067-1969 | 1 | ||
| PATTERN,SHROUD,UPP,RH | 56067C | 56067-1970 | 1 | ||
| PATTERN,SHROUD,LWR,LH | 56067D | 56067-1971 | 1 | ||
| PATTERN,SHROUD,LWR,RH | 56067E | 56067-1972 | 1 | ||
| PATTERN,FUEL TANK,LH | 56067F | 56067-1973 | 1 | ||
| PATTERN,FUEL TANK,RH | 56067G | 56067-1974 | 1 | ||
| PATTERN,SIDE COVER,LH | 56067H | 56067-1975 | 1 | ||
| PATTERN,SIDE COVER,RH | 56067I | 56067-1976 | 1 |
