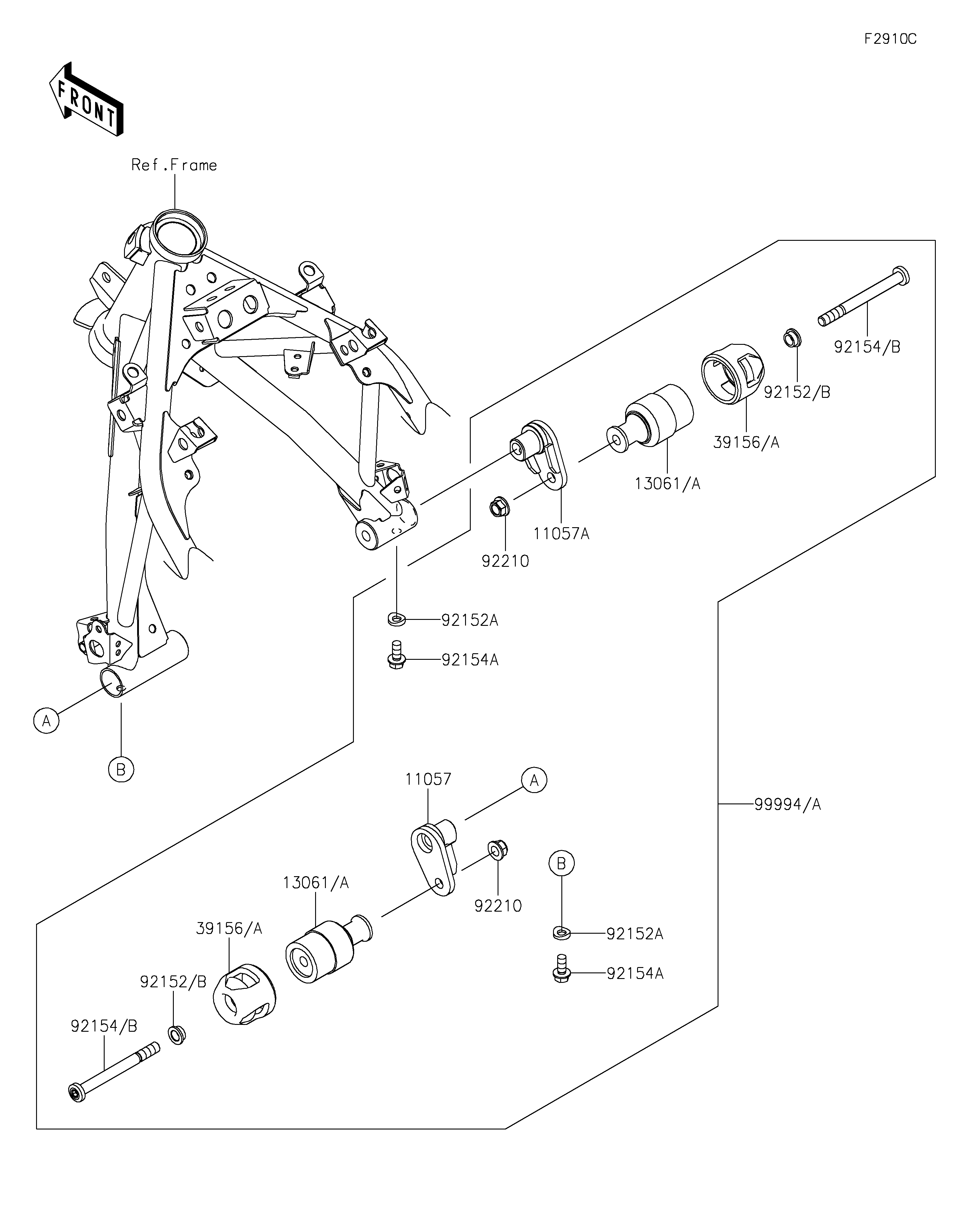

2022 NINJA® 400 - Accessory(Slider)

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
13061A
13061A
39156A
39156A
92152A
92152A
92152B
92152B
92154A
92154A
92154B
92154B
92210
92210
99994A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SLIDER,LH 11057 11057-1234 1
BRACKET,SLIDER,RH 11057A 11057-1235 1
BOSS 13061A 13061-1983 2
PAD,SLIDER 39156A 39156-2758 2
COLLAR,8.3X16 92152A 92152-2423 2
COLLAR,10.2X14X7 92152B 92152-2847 2
BOLT-FLANGED,8X14 92154A 92154-3798 2
BOLT,SOCKET,10X105 92154B 92154-4392 2
NUT,LOCK,FLANGED,10MM 92210 92210-1081 2
ENGINE SLIDER 99994A 99994-1741 1
