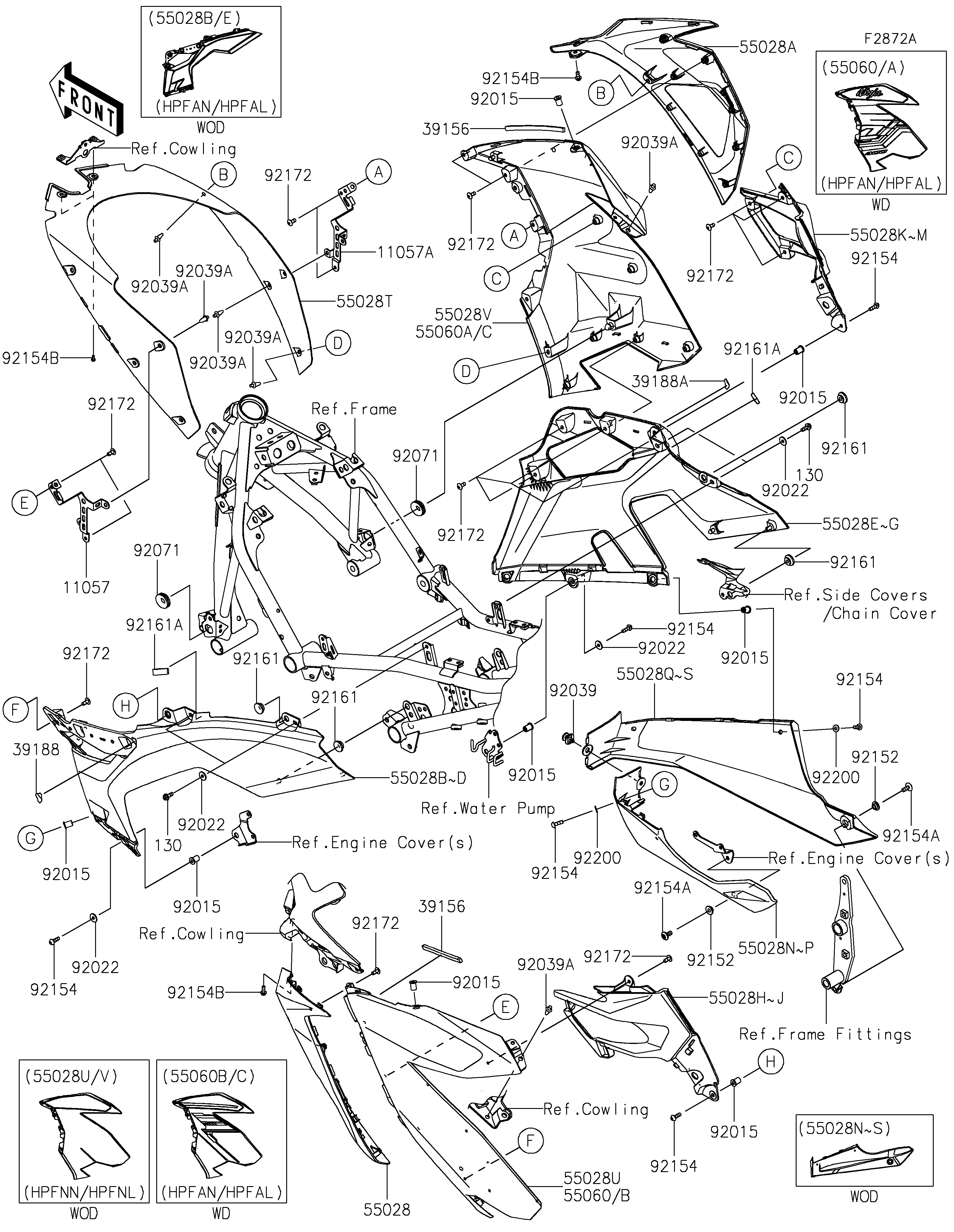

2022 NINJA® 400 - Cowling Lowers(HPFNN-HPFAL)

DOWNLOAD PDF
SELECT A NEW PART
11057
11057
11057A
11057A
39156
39156
39156
39156
39188
39188
39188A
39188A
55028
55028
55028A
55028A
55028B
55028B
55028C
55028C
55028D
55028D
55028E
55028E
55028F
55028F
55028G
55028G
55028H
55028H
55028I
55028I
55028J
55028J
55028K
55028K
55028L
55028L
55028M
55028M
55028N
55028N
55028O
55028O
55028P
55028P
55028Q
55028Q
55028R
55028R
55028S
55028S
55028T
55028T
55028U
55028U
55028V
55028V
55060
55060
55060A
55060A
55060B
55060B
55060C
55060C
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92022
92022
92022
92022
92022
92022
92022
92022
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92071
92071
92071
92071
92152
92152
92152
92152
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92154B
92154B
92161
92161
92161
92161
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92200
92200
92200
92200
130
130
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,COWL.,FR,LH 11057 11057-1197 1
BRACKET,COWL.,FR,RH 11057A 11057-1198 1
PAD,7X130X5 39156 39156-2296 2
TAPE,LWR SIDE COWL.,LH 39188 39188-0573 1
TAPE,LWR SIDE COWL.,RH 39188A 39188-0574 1
COWLING,SIDE,FR,LH 55028 55028-0637 1
COWLING,SIDE,FR,RH 55028A 55028-0638 1
COWLING,SIDE,LWR,LH,M.C.GRAY 55028B 55028-0641-51A 1
COWLING,SIDE,LWR,LH,M.M.C.GRAY 55028C 55028-0641-51B 1
COWLING,SIDE,LWR,LH,L.GREEN 55028D 55028-0641-777 1
COWLING,SIDE,LWR,RH,M.C.GRAY 55028E 55028-0642-51A 1
COWLING,SIDE,LWR,RH,M.M.C.GRAY 55028F 55028-0642-51B 1
COWLING,SIDE,LWR,RH,L.GREEN 55028G 55028-0642-777 1
COWLING,FIN,LH,M.S.SILVER 55028H 55028-0643-35Z 1
COWLING,FIN,LH,C.L.GREEN 55028I 55028-0643-51P 1
COWLING,FIN,LH,EBONY 55028J 55028-0643-H8 1
COWLING,FIN,RH,M.S.SILVER 55028K 55028-0644-35Z 1
COWLING,FIN,RH,C.L.GREEN 55028L 55028-0644-51P 1
COWLING,FIN,RH,EBONY 55028M 55028-0644-H8 1
COWLING,LWR,LH,M.C.GRAY 55028N 55028-0645-51A 1
COWLING,LWR,LH,P.B.WHITE 55028O 55028-0645-54X 1
COWLING,LWR,LH,L.GREEN 55028P 55028-0645-777 1
COWLING,LWR,RH,M.C.GRAY 55028Q 55028-0646-51A 1
COWLING,LWR,RH,P.B.WHITE 55028R 55028-0646-54X 1
COWLING,LWR,RH,L.GREEN 55028S 55028-0646-777 1
COWLING,INNER 55028T 55028-0647 1
COWLING,SIDE,UPP,LH,M.C.GRAY 55028U 55028-0686-51A 1
COWLING,SIDE,UPP,RH,M.C.GRAY 55028V 55028-0687-51A 1
COWLING,SIDE,UPP,LH,EBONY 55060 55060-5157-H8 1
COWLING,SIDE,UPP,RH,EBONY 55060A 55060-5159-H8 1
COWLING,SIDE,UPP,LH,P.B.WHITE 55060B 55060-5179-54X 1
COWLING,SIDE,UPP,RH,P.B.WHITE 55060C 55060-5183-54X 1
NUT,WELL,5MM 92015 92015-1757 10
WASHER,5.2X16X1.2 92022 92022-263 6
RIVET,HOLE 8MM 92039 92039-0014 1
RIVET 92039A 92039-0060 10
GROMMET 92071 92071-1043 2
COLLAR,6.5X16X5.6 92152 92152-1838 2
BOLT,SOCKET,5X16 92154 92154-0209 8
BOLT,SOCKET,6X14 92154A 92154-0932 2
BOLT,SOCKET,5X12 92154B 92154-1421 4
DAMPER 92161 92161-1531 6
DAMPER,10X28X5 92161A 92161-2107 2
SCREW,5X12 92172 92172-0821 22
WASHER,5.2X12X1.0 92200 92200-0784 4
BOLT-FLANGED,5X14 130 130BA0514 4
