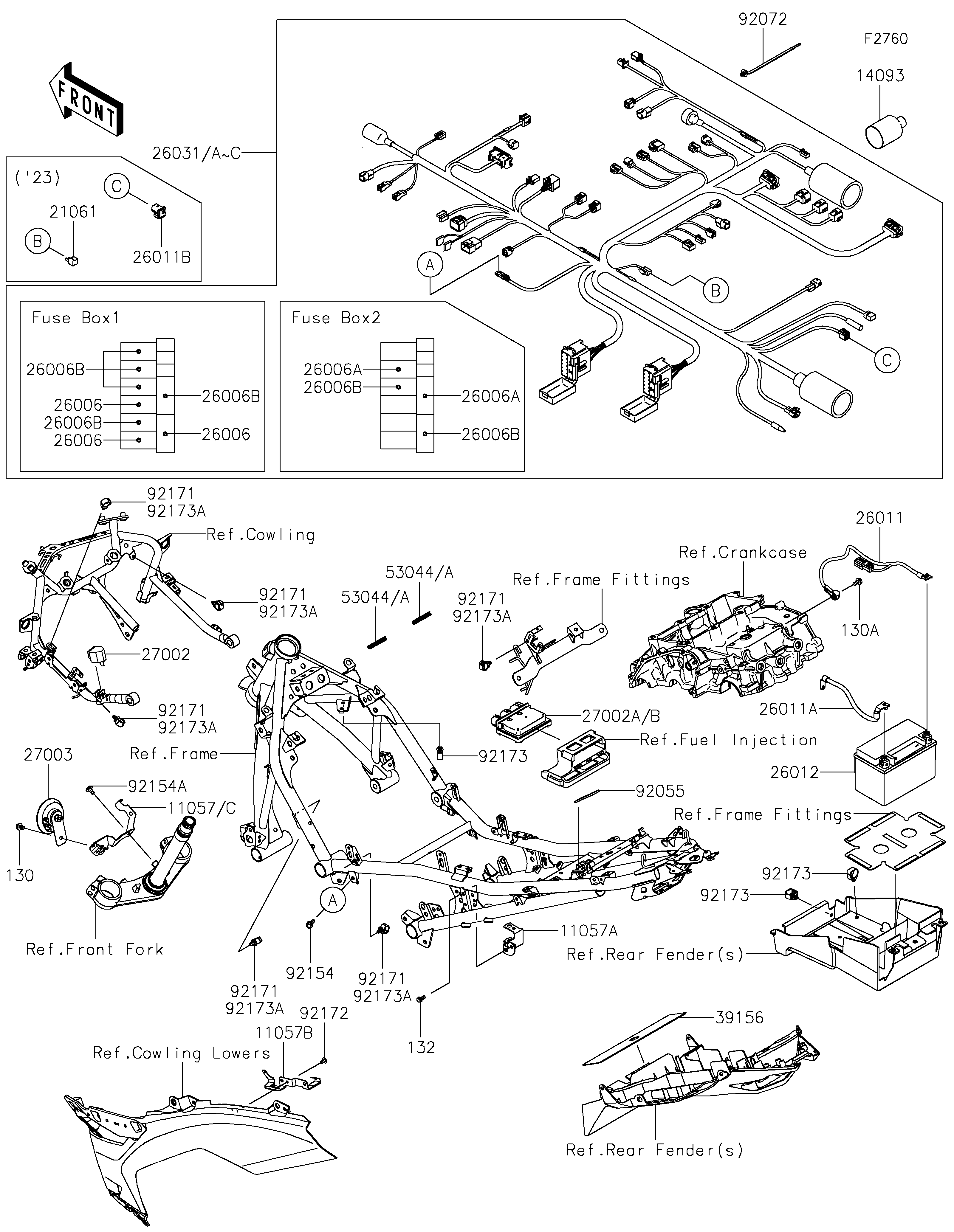

2022 NINJA® 400 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11057A
11057B
11057C
14093
21061
26006
26006
26006
26006A
26006A
26006B
26006B
26006B
26006B
26006B
26011
26011A
26011B
26012
26031B
26031C
27002
27002B
27003
39156
53044A
53044A
92055
92072
92154
92154A
92172
92173
92173
92173
92173A
92173A
92173A
92173A
92173A
92173A
130
130A
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,MAGNETIC SW. 11057A 11057-1225 1
BRACKET,FUSE BOX 11057B 11057-1771 1
BRACKET,HORN 11057C 11057-7535 1
COVER,HARNESS 14093 14093-0720 1
RECTIFIER 21061 21061-1003 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 3
FUSE,MINI BLADE,5A,TAN 26006A 26006-1077 2
FUSE,MINI BLADE,10A,RED 26006B 26006-1078 7
WIRE-LEAD,BATTERY(-) 26011 26011-0975 1
WIRE-LEAD,BATTERY(+) 26011A 26011-0977 1
WIRE-LEAD,DIAG CONNECTOR 26011B 26011-1901 1
BATTERY,FTX9-BS,12V 8AH 26012 26012-1436 1
HARNESS,MAIN 26031B 26031-3878 1 US
HARNESS,MAIN 26031C 26031-3924 1 CA
RELAY-ASSY,TURN SIGNAL 27002 27002-0031 1
RELAY-ASSY 27002B 27002-0061 1
HORN 27003 27003-0111 1
PAD,60X250X1 39156 39156-2219 1
TRIM,45MM 53044A 53044-0644 2
RING-O,50MM 92055 92055-0954 1
BAND,OS170-FT7(BLACK) 92072 92072-1414 5
BOLT,FLANGED,6X16 92154 92154-0551 1
BOLT,SOCKET,6X12 92154A 92154-2355 2
SCREW,TAPPING,5X10 92172 92172-0262 2
CLAMP,HOLDER CLIP 92173 92173-0868 3
CLAMP 92173A 92173-1951 6
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X12 130A 130BA0612 1
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
