Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
13127A
13127A
13128A
13128A
13144
13144
13262
13262
13262J
13262J
13262K
13262K
13262L
13262L
13262M
13262M
13262N
13262N
13262O
13262O
13262P
13262P
13262Q
13262Q
13262R
13262R
92022
92022
92022A
92022A
92028
92028
92033
92033
92033
92033
92033A
92033A
92033A
92033A
92033A
92033A
92033A
92033A
92033A
92033A
92033A
92033A
92045
92045
92045A
92045A
92046
92046
92046
92046
92048
92048
92048
92048
92139
92139
92139A
92139A
92139A
92139A
92152
92152
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200B
92200B
92200C
92200C
92200C
92200C
92200D
92200D
92200D
92200D
92210
92210
600
600

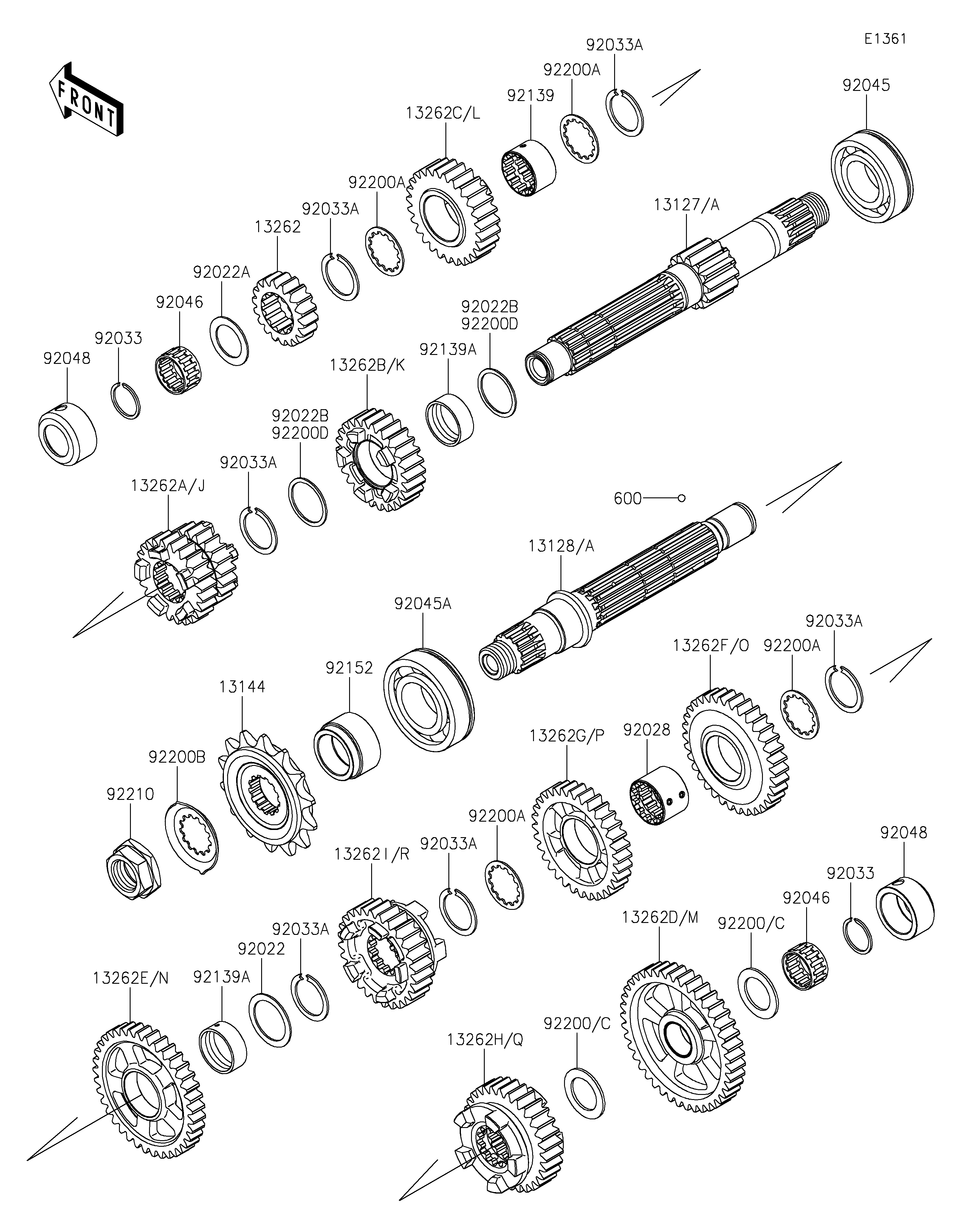

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION INPUT,13T | 13127A | 13127-0716 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128A | 13128-0724 | 1 | ||
| SPROCKET-OUTPUT,14T | 13144 | 13144-0577 | 1 | ||
| GEAR,INPUT 2ND,18T | 13262 | 13262-1288 | 1 | ||
| GEAR,INPUT 3RD&4TH,21T,24T | 13262J | 13262-1591 | 1 | ||
| GEAR,INPUT 5TH,26T | 13262K | 13262-1592 | 1 | ||
| GEAR,INPUT 6TH,27T | 13262L | 13262-1593 | 1 | ||
| GEAR,OUTPUT LOW,41T | 13262M | 13262-1594 | 1 | ||
| GEAR,OUTPUT 2ND,37T | 13262N | 13262-1595 | 1 | ||
| GEAR,OUTPUT 3RD,34T | 13262O | 13262-1596 | 1 | ||
| GEAR,OUTPUT 4TH,32T | 13262P | 13262-1597 | 1 | ||
| GEAR,OUTPUT 5TH,30T | 13262Q | 13262-1598 | 1 | ||
| GEAR,OUTPUT 6TH,28T | 13262R | 13262-1599 | 1 | ||
| WASHER,25.3X33X1 | 92022 | 92022-1109 | 1 | ||
| WASHER,20.5X30X1,STEEL | 92022A | 92022-112 | 1 | ||
| BUSHING,OUTPUT 3RD&4TH GEAR | 92028 | 92028-1858 | 1 | ||
| RING-SNAP,20MM | 92033 | 92033-015 | 2 | ||
| RING-SNAP,24MM | 92033A | 92033-026 | 6 | ||
| BEARING-BALL,6TM-6205NX3 | 92045 | 92045-0735 | 1 | ||
| BEARING-BALL,28X58X16 | 92045A | 92045-0841 | 1 | ||
| BEARING-NEEDLE,20X25X12.8 | 92046 | 92046-0607 | 2 | ||
| RACE | 92048 | 92048-0025 | 2 | ||
| BUSHING,26X28X16.6 | 92139 | 92139-0781 | 1 | ||
| BUSHING,25X28X10.4 | 92139A | 92139-0793 | 2 | ||
| COLLAR | 92152 | 92152-2369 | 1 | ||
| WASHER | 92200A | 92200-1389 | 4 | ||
| WASHER | 92200B | 92200-1932 | 1 | ||
| WASHER,20.5X31X1.5 | 92200C | 92200-2523 | 2 | ||
| WASHER,25.3X30X1 | 92200D | 92200-2524 | 2 | ||
| NUT,20MM | 92210 | 92210-0850 | 1 | ||
| BALL-STEEL,5/32 | 600 | 600A0500 | 3 |
| SHAFT-TRANSMISSION INPUT,13T | |
| REF # | 13127A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-TRANSMISSION OUTPUT | |
| REF # | 13128A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-OUTPUT,14T | |
| REF # | 13144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 2ND,18T | |
| REF # | 13262 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 3RD&4TH,21T,24T | |
| REF # | 13262J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 5TH,26T | |
| REF # | 13262K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 6TH,27T | |
| REF # | 13262L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT LOW,41T | |
| REF # | 13262M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 2ND,37T | |
| REF # | 13262N |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 3RD,34T | |
| REF # | 13262O |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 4TH,32T | |
| REF # | 13262P |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 5TH,30T | |
| REF # | 13262Q |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 6TH,28T | |
| REF # | 13262R |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,25.3X33X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,20.5X30X1,STEEL | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,OUTPUT 3RD&4TH GEAR | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,20MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,24MM | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,6TM-6205NX3 | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,28X58X16 | |
| REF # | 92045A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,20X25X12.8 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RACE | |
| REF # | 92048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING,26X28X16.6 | |
| REF # | 92139 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,25X28X10.4 | |
| REF # | 92139A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,20.5X31X1.5 | |
| REF # | 92200C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,25.3X30X1 | |
| REF # | 92200D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,20MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALL-STEEL,5/32 | |
| REF # | 600 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
